MikroTik wAP LR9G kit with 900MHz LoRa and 2.4GHz WiFi

MikroTik wAP LR9G kit with 900MHz LoRa and 2.4GHz WiFi

RBwAPR-2nD&R11e-LR9G

$282.00 NZD
$282.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MikroTik wAP LR9G kit with 900MHz LoRa and 2.4GHz WiFi - RBwAPR-2nD&R11e-LR9G
MikroTik wAP LR9G kit with 900MHz LoRa and 2.4GHz WiFi - RBwAPR-2nD&R11e-LR9G. MikroTik’s IoT portfolio expands with two new entries for the US and other 915 MHz markets, the wAP LR9G kit, a weatherproof gateway for LoRa® outdoor use, and the R11e-LR9G, a miniPCIe concentrator card with built-in GPS and upgraded sensitivity.

These bring long-range, low-power connectivity within everyone’s reach – perfect for smart agriculture, industrial telemetry, and DIY IoT setups.

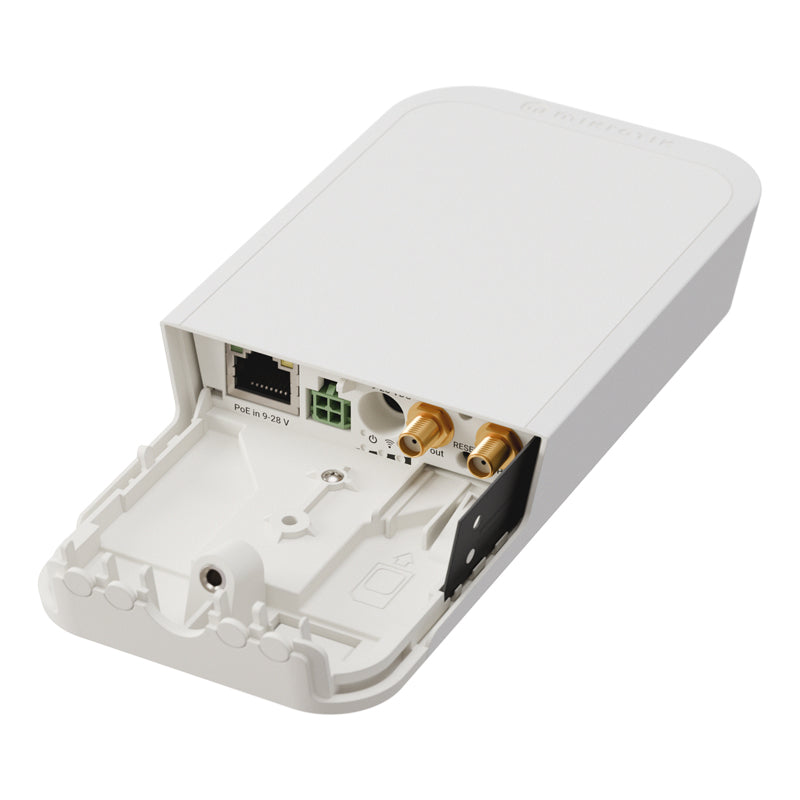

The wAP LR9G kit is a rugged, out-of-the-box LoRa gateway ready built into MikroTik’s proven wAP form factor.
Features
  • LoRa 915 MHz support (AU915–928, US902–928, AS923, KR920–923)
  • Built-in GPS (via MT3337V)
  • Improved Rx sensitivity: up to -141 dBm
  • 2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
  • Passive PoE support and wide voltage input range
  • 3 power input options: PoE, automotive, or DC jack
  • SMA female connectors for external antenna options
Details
Product code RBwAPR-2nD&R11e-LR9G
LoRa Model R11e-LR9G; GD32L233RCT6
GNSS interface model MT3337V
GNSS standard GPS
LoRa band 915 MHz (AU915–928, US902–928, AS923, KR920–923)
Max LoRa Rx sensitivity -141 dBm
Wi-Fi 300 Mbit/s, 2x2 802.11b/g/n Wi-Fi 4
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 9-28 V
Automotive input Voltage 12-30 V
Max power consumption 7 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 9-28 V
10/100 Ethernet ports 1
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
PCB temperature monitor Yes
Voltage Monitor Yes
GPS RF connector type uUFL
Certification & Approvals FCC, IC, EAC
IP 54
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Details
Included 24V 0.8A power adapter, K-52 fastening set, wAP desktop stand, wAP ceiling mount bracket, Metal ring (one), 0.35m 4pin Automotive adapter cable, PoE injector
