MikroTik

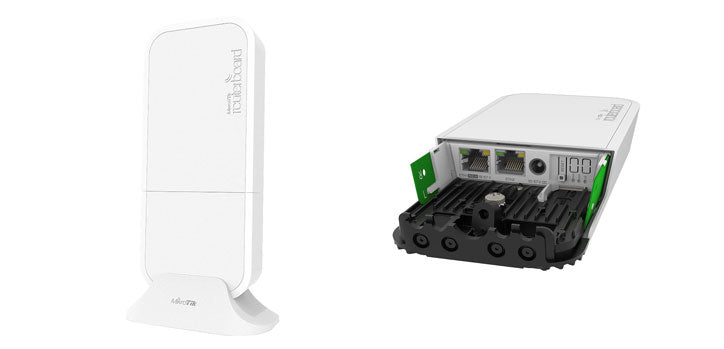

MikroTik wAP 802.11ac Wi-Fi and LTE Weatherproof kit with R11e-LTE6 Modem
MikroTik wAP 802.11ac Wi-Fi and LTE Weatherproof kit with R11e-LTE6 Modem
SKU:RBwAPGR-5HacD2HnD_R11e-LTE6
Regular price
$195.00 NZD
Regular price
Sale price
$195.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
MikroTik wAP Outdoor Weather Proof 4G LTE Cellular Modem with built in Wi-Fi
MikroTik wAP 802.11ac Wi-Fi and 4G LTE Outdoor Weatherproof kit with R11e-LTE6 Modem. The MikroTik wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
wAP ac LTE6 (RBwAPGR-5HacD2HnD&R11e-LTE6) kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
wAP ac LTE6 (RBwAPGR-5HacD2HnD&R11e-LTE6) kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
Features
- CAT6 4G LTE with carrier aggregation
- Built in Long Range 802.11ac WiFi
| Details | |
|---|---|
| Product code | RBwAPGR-5HacD2HnD&R11e-LTE6 |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| License level | 4 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 60°C |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 16 W |
| Max power consumption without attachments | 10 W |
| 10/100/1000 Ethernet ports | 2 |
| Wireless 2.4 and 5GHz standards | 802.11a/b/g/n/ac, Wi-Fi 5 |
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| 2G Category | Class12 |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
| Dimensions | 185 x 85 x 30 mm |
| Details | |
|---|---|
| Power Supply | 24VDC 0.8A PSU |
| Power Injector | RB/GPOE |
| Mounting Hardware | Screw kit, desktop stand, wAP mount bracket |
