MikroTik

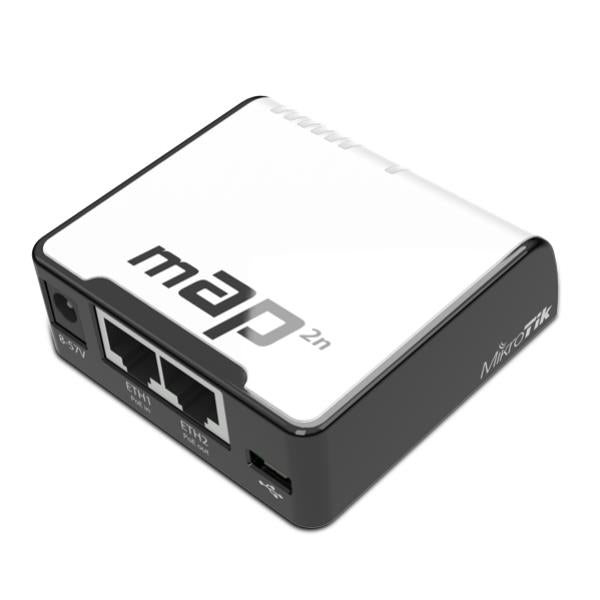

MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

RBmAP2nD

$99.00 NZD
$99.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Mikrotik RouterBOARD mAP2nD (2)LAN, 2.4Ghz 802.11n WiFi, microUSB, RouterOS L4, Passive POE-in/out
The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable with its tiny form factor and power from a wide variety of sources including USB, Passive PoE and power jack. In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. The USB port can also be used with compatible 3G/4G USB dongles via the microUSB adaptor cable included.
Features
  • Built in 2GHz AP
  • microUSB for a 3G/4G modem, or for power input
  • Station or AP mode wireless
  • Passive PoE input (10-57V)
  • Passive PoE output (same as input voltage)
Details
Product code RBmAP2nD
CPU nominal frequency 650MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 2
Wireless chip model QCA9531
Wireless standards 802.11b/g/n
Number of USB ports 1
USB slot type microUSB type AB
PoE In Yes - Passive, 11-57V
PoE Out Pasive PoE output, up to 500mA on Ether 2
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 68x68x19mm
Operating System RouterOS
Operating temperature range -10C to +70C tested
License level 4
Antenna gain DBI 1.2dBi
Max Power consumption 5W
Number of chains 2
Output Power 22dBm
Details
Power Supply 24VDC 0.8A PSU
Warranty Standard 12 Month RTB
View full details
