MikroTik R11e-LR9 LoRaWAN Concentrator Gateway mini-PCIe card 902-928MHz

MikroTik R11e-LR9 LoRaWAN Concentrator Gateway mini-PCIe card 902-928MHz

R11e-LR9

$169.00 NZD
$169.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
MikroTik LoRaWAN Concentrator Gateway mini-PCIe card 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)

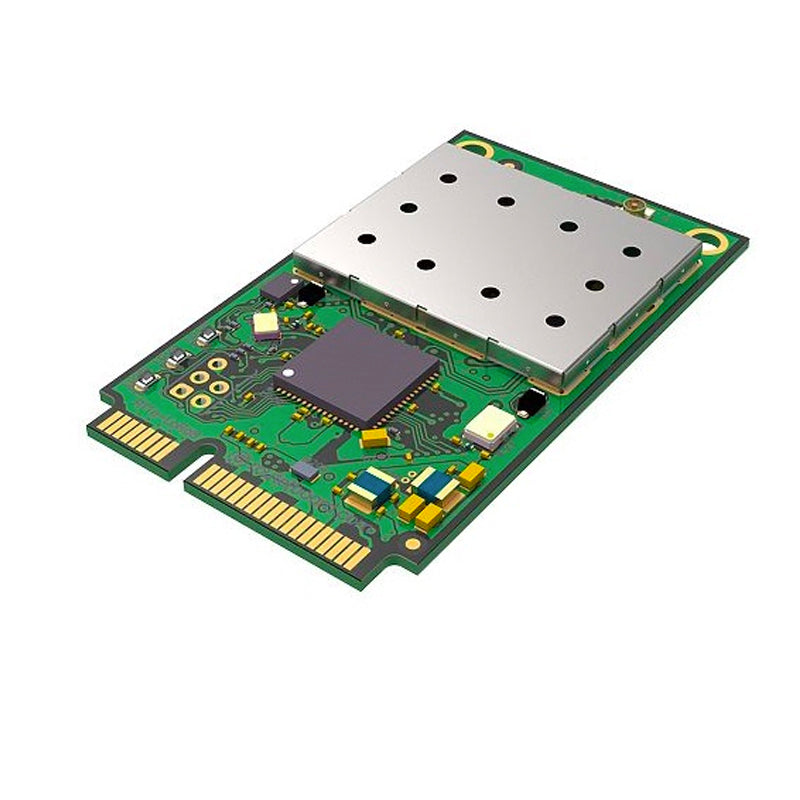

MikroTik R11e-LR9 LoRaWAN IoT Concentrator Gateway mini-PCIe card 902-928MHz. R11e-LoRa9 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.

With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)



. .

Features
  • supports 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
Details
Product code R11e-LR9
Interface Mini-PCIe
supported class A and C
Frequency 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
RF Output power 902-928 MHz 23 dBm
Receive max sensitivity -137 dB @ SF12
Range Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit
Operating ambient temperature -40degC to +70degC
Max power consumption 2 W902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
