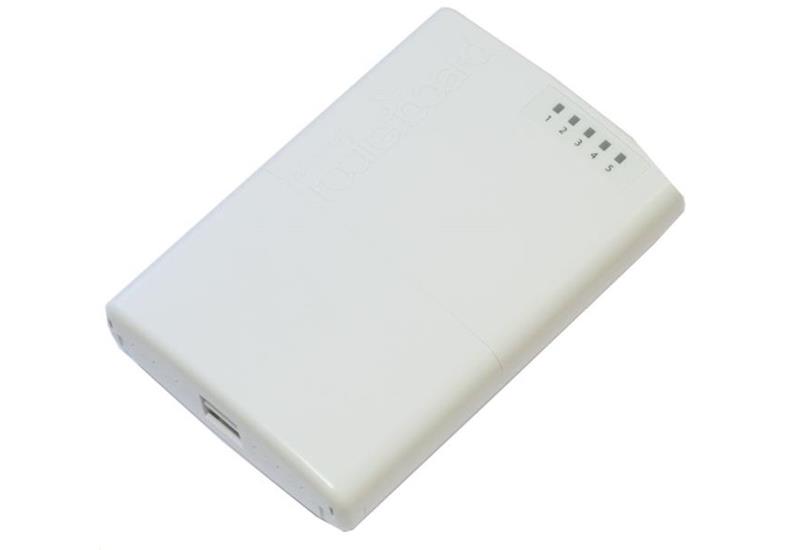

MikroTik PowerBox RB750P-PBr2 Outdoor Router with 24V Passive PoE Out

MikroTik PowerBox RB750P-PBr2 Outdoor Router with 24V Passive PoE Out

RB750P-PB

$146.00 NZD
$146.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MikroTik PowerBox (AR7241 400MHz CPU, 64MB RAM, 5xLAN (four with PoE-OUT), Outdoor Case, PSU, PoE, mounting set
The MikroTik RB750P-PBr2 PowerBOX is an outdoor five Ethernet port router with 24V Passive PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others. The device has a waterproof outdoor case so you can mount it on a tower, or in other outdoor locations. The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adaptors and cables to worry about!
Features
  • New Revision 2 with 650MHz Processor
Details
Product code RB750P-PBr2
Product code RB750P-PBr2
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9533
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
10/100 Ethernet ports 5
Number of DC inputs 2 (PoE-IN plus DC jack In)
DC jack input Voltage 8-30 V
Max power consumption 50 W
Max power consumption without attachments 2 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE-out ports Ether2 to Ether5
PoE out 24V Passive PoE
Max out per port output (input 18-30 V) 1 A
Max total out (A) 2 A
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Dimensions 125x178x48mm
RouterOS license 4
Operating System RouterOS
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Certification CE, EAC, ROHS
IP 20
Details
Inluded IEC power cord, Metal ring mounting (one), PoE injector, 24V 2.5A power adapter, DIN mount (K-27)
