MikroTik mAP lite 802.11n Access Point / Bridge

MikroTik mAP lite 802.11n Access Point / Bridge

SKU:RBmAPL-2nD

Regular price $47.00 NZD
Regular price Sale price $47.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Quantity
MikroTik mAP lite with QCA9533 650MHz CPU, 64MB RAM, 1xLAN, built-in Dual Chain 2.4Ghz 802.11b/g/n wireless with integrated antennas, RouterOS L4

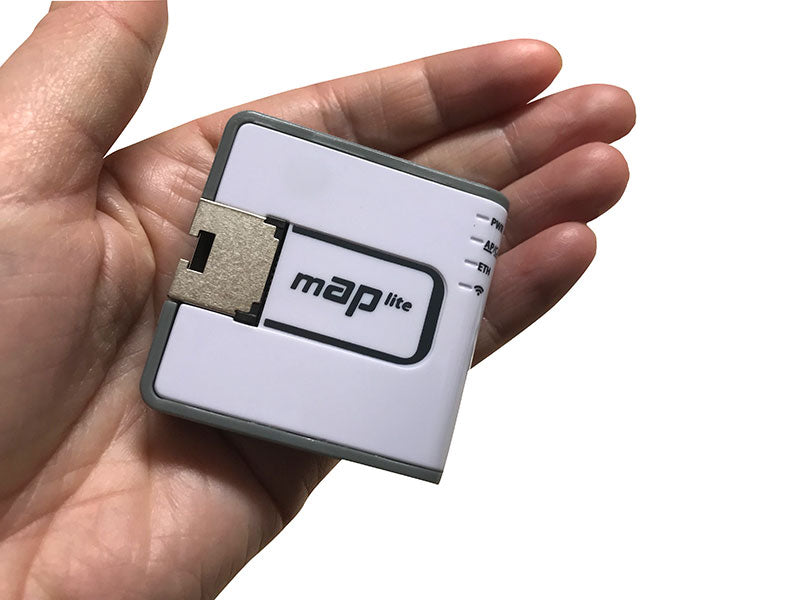

The MikroTik RBmAPL-2nD lite is our smallest 2.4GHz WiFi access point / Bridge. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile. You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you. It comes with a built-in magnet, so you can attach it to any ferrous surface, or if those are not available, a metallic plate with an adhesive back is also included. It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device, plus, it neatly attaches to the rack with it’s magnet. The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Details
Product code RBmAPL-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48x49x11mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
10/100 Ethernet ports 1
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4
Max TX Power 22dBm
Max RX Sensitivity -96dBm
MicroUSB input Voltage 5 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 3.5 W
PoE in 802.3af/at
Cooling type Passive
Passive PoE in input Voltage 10-60 V
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Details
Power Supply 5VDC 1A Micro USB Power Supply Included
