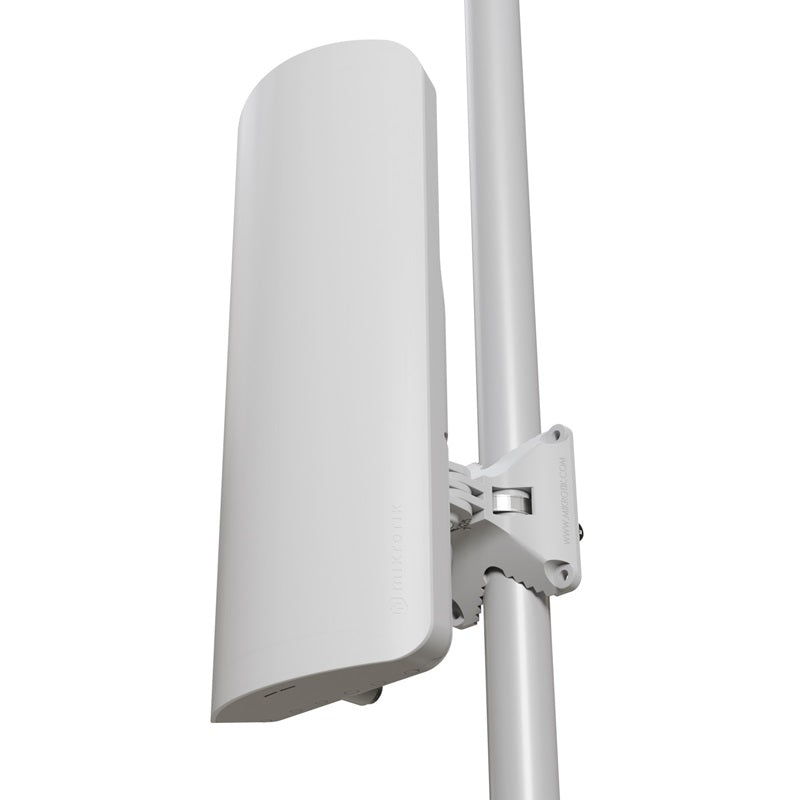

MikroTik mANTBox ax 15s Outdoor 802.11ax Wi-Fi 6 dual-band radio with Built in 15dBi Sector Antenna

MikroTik mANTBox ax 15s Outdoor 802.11ax Wi-Fi 6 dual-band radio with Built in 15dBi Sector Antenna

SKU:L22UGS-5HaxD2HaxD-15S

Regular price $367.00 NZD
Regular price Sale price $367.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Quantity
MikroTik mANTBox ax 15s Outdoor 802.11ax Wi-Fi 6 dual-band radio with Built in 15dBi Sector Antenna L22UGS-5HaxD2HaxD-15S
MikroTik mANTBox ax 15s Outdoor 802.11ax Wi-Fi 6 dual-band radio with Built in 15dBi Sector Antenna L22UGS-5HaxD2HaxD-15S. The mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.

Upgrading your setup to Wi-Fi 6 offers multiple benefits as we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like brute forcing and WPA2 handshake capture deauthentication attacks. Also seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.

Details
Product code L22UGS-5HaxD2HaxD-15S
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax; Wi-Fi 6
Antenna gain dBi for 2.4 GHz 12
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax; Wi-Fi 6
Antenna gain dBi for 5 GHz 15
10/100/1000 Ethernet ports 1
SFP ports 1 (2.5G supported)
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 21 W
Max power consumption without attachments 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
PCB temperature monitor Yes
Voltage Monitor Yes
Certification CE, FCC, IC, EAC, ROHS
IP 54
Details
Included Gigabit PoE injector, QMP, 24V 0.8A power adapter, Metal ring (one), K-41 fastening set
