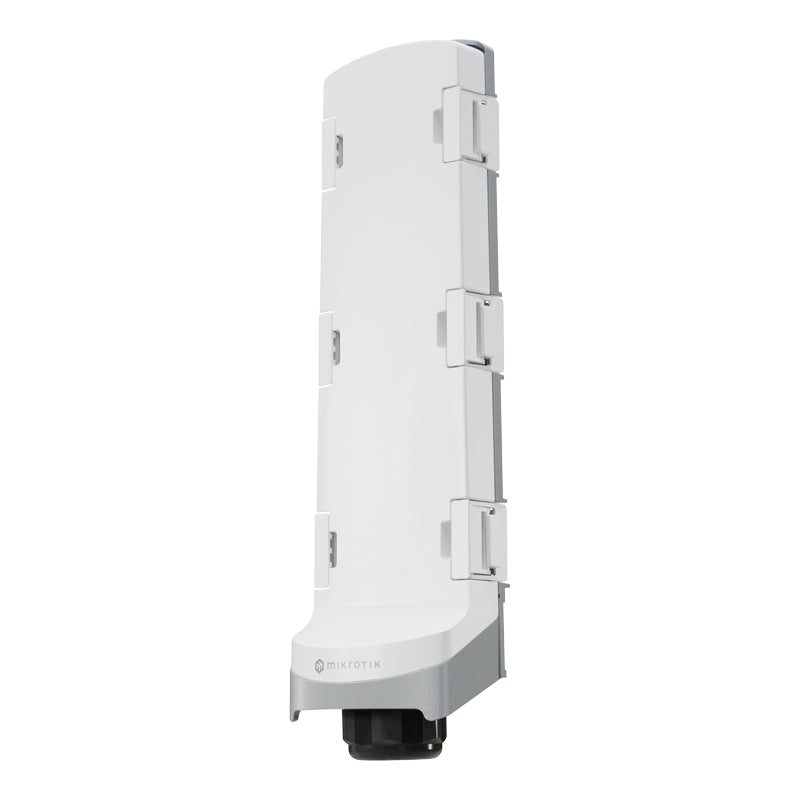

MikroTik GPERx6 Outdoor Gigabit Passive Ethernet Repeater with 1x PoE-In, 2x PoE-Out and 3x SFP+ Ports

MikroTik GPERx6 Outdoor Gigabit Passive Ethernet Repeater with 1x PoE-In, 2x PoE-Out and 3x SFP+ Ports

CSS606-1G-2Gi-3S+OUT

$292.00 NZD
$292.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
MikroTik GPERx6 Outdoor Gigabit Passive Ethernet Repeater with 1x PoE-In, 2x PoE-Out and 3x SFP+ Ports
MikroTik GPERx6 Outdoor Gigabit Passive Ethernet Repeater with 1x PoE-In, 2x PoE-Out and 3x SFP+ Ports.

Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.

Features
  • 3x 10G SFP+ Ports
  • 3x Gigabit Ethernet Ports (1x PoE-in, 2x PoE-out)
  • Heavy-duty IP66 enclosure
  • Flexible powering, PoE-in, 2x PoE-out, DC jack, 3x DC-out
  • A dedicated 10G switch chip
Details
Product code CSS606-1G-2Gi-3S+OUT
Number of 1G Ethernet ports 3
Number of 10G SFP+ ports 3
Switch chip model 88E6193X
Certification IP66
Dimensions 406 x 116 x 76 mm
Operating system SwOS
Operating temparature -40°C to +70°C
Number of DC inputs 2 (2-pin screw terminal, PoE-In)
2-pin screw terminal input Voltage 12-57 V
PoE-In input Voltage 42-57 V
PoE-In 802.3 bt
PoE-Out Passive PoE up to 57V (Ether2- Ether3)
Max out per port output (input < 30 V) 1.2 A
Max out per port output (input > 30 V) 0.625 A
Max total out 2.4 A
Number of DC-out ports 3, DC1-DC3 Max total out 3.6 A
Max power consumption (without attachments) 6 W
Max power consumption 160 W
Details
Power Supply Not Included
Mounting Hardware (1) Hose Clamp
