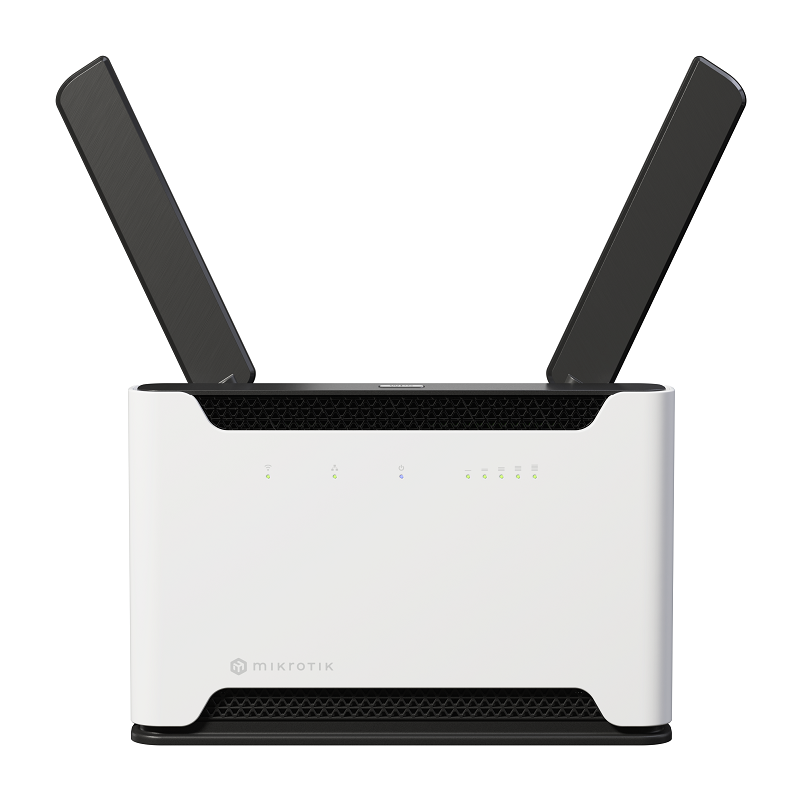

MikroTik Chateau LTE18 ax Wi-Fi6 Gigabit Router with Band 28 Support

MikroTik Chateau LTE18 ax Wi-Fi6 Gigabit Router with Band 28 Support

SKU:S53UG+5HaxD2HaxD-TC&EG18-EA

Regular price $545.00 NZD
Regular price Sale price $545.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

Quantity
MikroTik Chateau LTE18 ax Wi-Fi6 Gigabit Router with Band 28 Support
MikroTik Chateau LTE18 ax Wi-Fi 6 Gigabit Cellular Router with Band 28 support. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

Features
  • 1 x 2.5GbE, 4 x 1GbE Ethernet Ports
  • 1.8 GHZ QUAD-CORE CPU
  • 802.11Aax + 802.11ac WAVE2
Details
Product code S53UG+5HaxD2HaxD-TC&EG18-EA
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 -1800) MHz
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
10/100/1000 Ethernet ports 4
2.5GbE Ethernet ports 1
IPsec hardware acceleration Yes
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 19 W
Max power consumption without attachments 16 W
Cooling type Passive
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL 4x4
MIMO UL 1x1
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
WiFi Standards 2.4GHz 2x2 802.11b/g/n/ax, 5GHz 2x2 802.11a/n/ac/ax WiFi6
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 65°C
Certification CE, EAC, ROHS
Details
Inlcuded 24V 1.2A DC Power supply, 1.5m UTP Flat Cable
