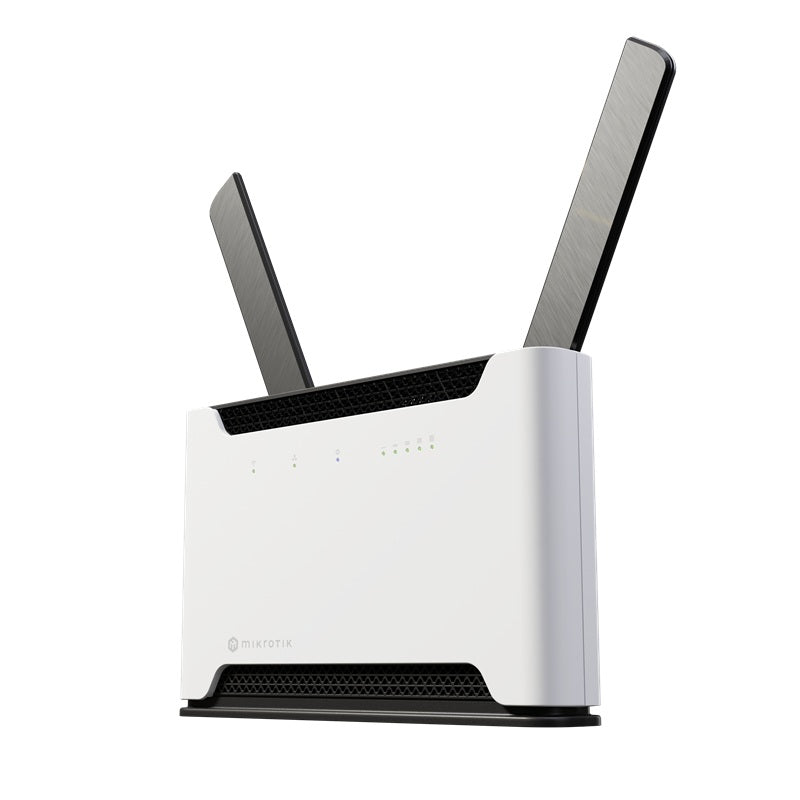

MikroTik Chateau 5G R17 ax Ultra-fast Cellular 5 Port Gigabit Wireless Router

MikroTik Chateau 5G R17 ax Ultra-fast Cellular 5 Port Gigabit Wireless Router

S53UG+5HaxD2HaxD-TC&RG650E-EU

$701.00 NZD
$701.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
MikroTik Chateau 5G R17 ax Ultra-fast Cellular 5 Port Gigabit Wireless Router with eSIM support
MikroTik Chateau 5G R17 ax Ultra-fast Cellular 5 Port Gigabit Wireless Router. Get online instantly – even without a SIM card. The iconic MikroTik 5G home router gets its smartest upgrade yet... full eSIM support.

More speed. More bands. More flexibility.

The MikroTik Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

Features
  • Quad-core 1.8 GHz ARM CPU
  • 4x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet
  • MicroSIM & eSIM
  • Blazing fast Release 17 5G modem
  • Smart aggregation with wide regional FDD + TDD band support
  • Extra strong signal pickup thanks to 4x4 MIMO
  • Wi-Fi coverage designed for homes of all sizes, including multi-floor setups
Details
Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
CPU Quad-Core IPQ-6010 Frequency range - auto (864-1800MHz)
CPU Architecture ARM 64bit
Size of RAM 1 GB
Storage 128 MB NAND
Number of 1G Ethernet ports 4
Number of 2.5G Ethernet ports 1
LTE modem RG650E-EU
USB 1 USB 2.0 type A
SIM slots Micro SIM, eSIM
Wireless interface model QCN-5022 (2.4 GHz), QCN-5052 (5GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Antenna gain 3 dBi (2.4 GHz), 6 dBi (5 GHz)
LTE modem RG650E-EU
TAC 86896506
MIMO DL 4x4
MIMO UL 2x2
5G SA Category 7.01 Gbps Downlink, 1.25 Gbps Uplink
5G SA FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G SA TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz)
5G NSA Category 5.47 Gbps Downlink, 730 Mbps Uplink
5G NSA FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G NSA TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) / 78 (3500 MHz)
LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
Operating system RouterOS v7, License level 4
Operating temperature -40°C to +70°C
Details
Power Supply 24 V 1.2 A power adapter
Ethernet Cable UTP Flat Cable (1,5m)
