MikroTik +/-48 V DC telecom Open Frame Power supply

MikroTik +/-48 V DC telecom Open Frame Power supply

PW48V-12V85W

$104.00 NZD
$104.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

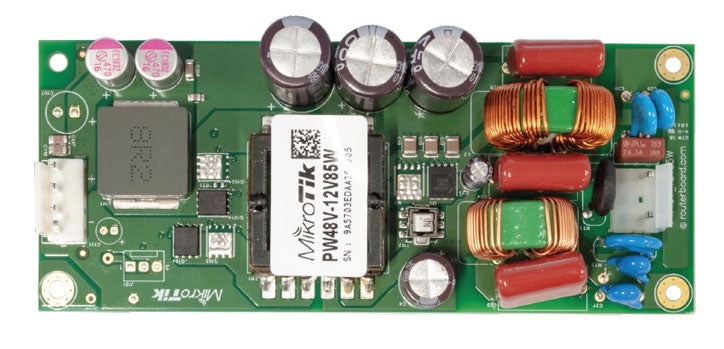

MikroTik ±48V Open frame Power supply with 12V 7A output for new r2 CCR revisions
MikroTik ±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with Cloud Core Routers since revision "r2" or the new CCR2004-1G-12S+2XS and CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.

Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).
Features
  • Compatible with: Revision "r2" or the new CCR2004-1G-12S+2XS and CRS326-24S+2Q+RM
  • Also compatible with the CCR2116-12G-4S+
Details
Manufacturer's Product Code PW48V-12V85W
2-pin terminal input Voltage 48-48 V
Input Voltage ±48V, 3A
Number of DC inputs 1 (2-pin terminal)
Operating Temperature -20...+60C
Output Voltage 12V, 8A
Details
Internal DC connector Cord Included
