MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High

MGC-2.5-H

$153.00 NZD
$153.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

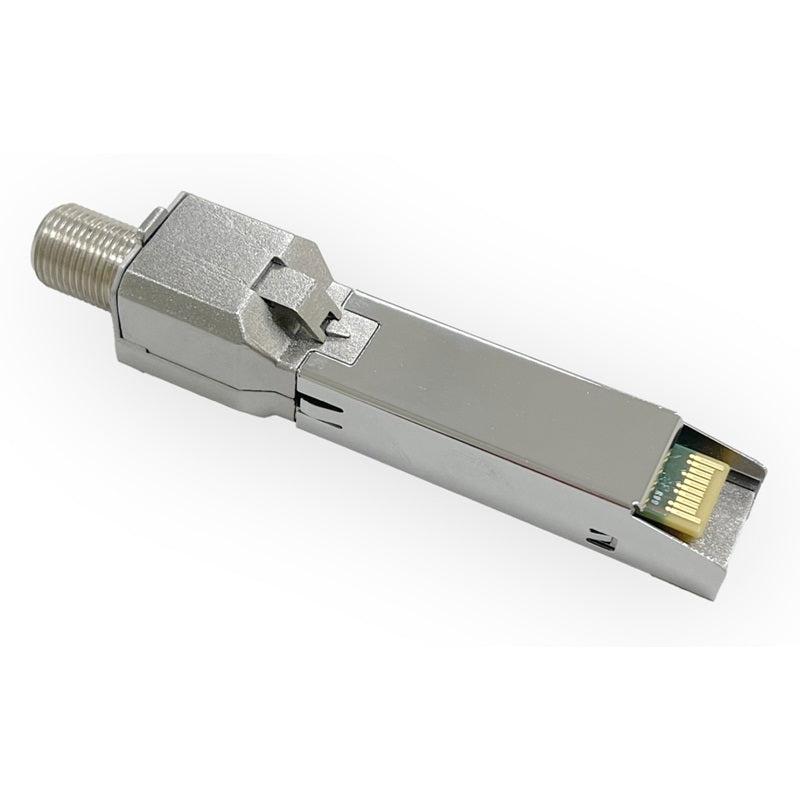

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High
MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over 75 Ohm Coax High. The MaGiC-SFP (Multi-Gigabit over Coax, Small Form-factor Profile Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing coaxial cable in the home and/or building, is easy to install and works with existing network equipment. MaGIC-SFP extends fiber and coaxial based networks, and has been tested to symmetrical data rates of up to 2.5Gbps.

Note: For MikroTik 2.5G to function the switch must support 2.5G forced/fixed with auto negotiate off
Features
  • MaGiC-SFP offers up to 2.5Gbps of symmetrical data
  • Plugs into SFP+ cage found in gateways, ONU’s, Ethernet switches, APs and media converters, that support 1000BaseT/SGMII
  • SFP/+ must support 2 watts
  • Simple to install, fast to deploy, highly reliable
  • No management software.
Details
Manufacturer's Code MGC-2.5-H (MGRF-2G)
support MoCA 2.5 Backward interoperable with MoCA 2.0, 1.5 and 1.0
Interfaces SFP+ Interface Port, F-Type Connecter
Regulatory Approvals FCC, CE, UL, CSA
Protection OCP, OVP and SCP
Max PER 1e-6 / 1e-8
Latency <6.1mS/<3mS(LLF)
Max Transmit Power 4dBm
Receiver Sensitivity -55dBm
RF Interface F- Type Connector
RF Impedance 75 E
RF Frequency Band 400 MHz – 1675 MHz
Modulation Up to 1024 QAM
Throughput Up to 1.0Gbps - 2.5Gbps
