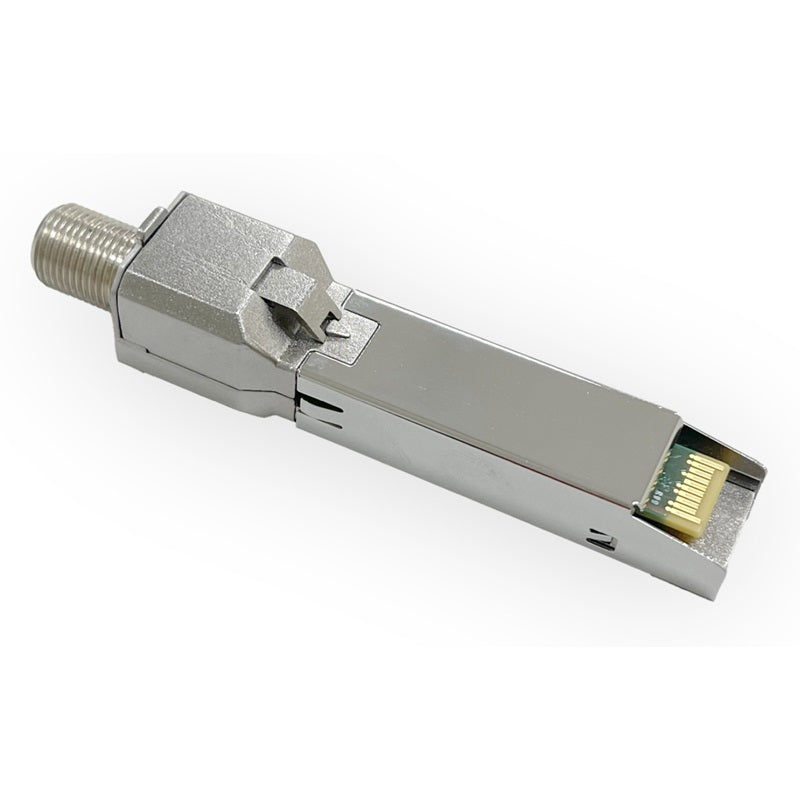

MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low
MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low
SKU:MGC-1G-L
Regular price
$139.00 NZD
Regular price
Sale price
$139.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low
MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over 75 Ohm Coax - Low. The MaGiC-SFP (Small Form-factor Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing twisted pair wiring in the home and/or building, is easy to install and works with existing network equipment. MaGiC-SFP extends fiber and RF coaxial-based networks and has been tested to symmetrical data rates of up to 1.7 Gbps.
Features
- Works over coaxial cable regardless of type or age. Works over RG59, RG6, RG7 and RG11
- Range up to 300m
| Details | |
|---|---|
| Manufacturer's Code | MGC-1G-L (MGRF-1G) |
| support MoCA 2.5 | Backward interoperable with MoCA 2.0, 1.5 and 1.0 |
| Interfaces | SFP Interface Port, F-Type Connecter |
| Regulatory Approvals | FCC, CE, UL, CSA |
| Protection | OCP, OVP and SCP |
| Max PER | 1e-6 / 1e-8 |
| Latency | <6.1mS/<3mS(LLF) |
| Max Transmit Power | 4 dBm |
| Receiver Sensitivity | -55 dBm |
| RF Interface | F- Type Connector |
| RF Impedance | 75 E |
| RF Frequency Band | 400 MHz – 1675 MHz |
| Modulation | Up to 1024 QAM |
| Throughput | Up to 1.0 Gbps |
| Details | |
|---|---|
