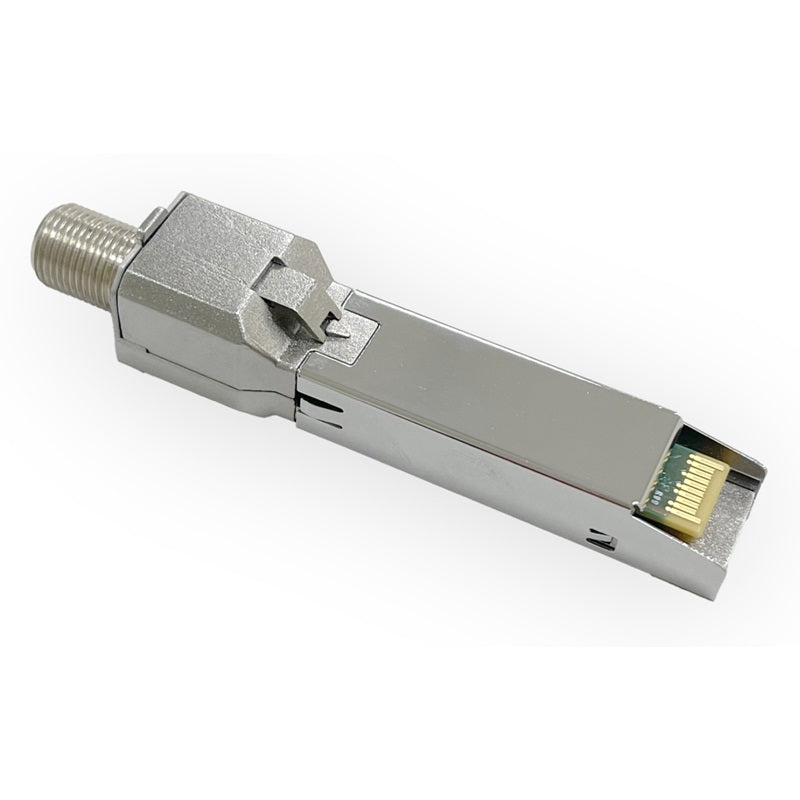

MDSlink MGC-1G-H MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - High

MDSlink MGC-1G-H MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - High

MGC-1G-H

$139.00 NZD
$139.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
MDSlink MGC-1G-H MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - High
MDSlink MGC-1G-H MaGiC SFP - MoCA SFP 1Gbps Full Duplex over 75 Ohm Coax - High. The MaGiC-SFP (Small Form-factor Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing twisted pair wiring in the home and/or building, is easy to install and works with existing network equipment. MaGiC-SFP extends fiber and RF coaxial-based networks and has been tested to symmetrical data rates of up to 1.7 Gbps.
Features
  • Works over coaxial cable regardless of type or age. Works over RG59, RG6, RG7 and RG11
  • Range|
Details
Manufacturer's Code MGC-1G-H (MGRF-1G)
support MoCA 2.5 Backward interoperable with MoCA 2.0, 1.5 and 1.0
Interfaces SFP Interface Port, F-Type Connecter
Regulatory Approvals FCC, CE, UL, CSA
Protection OCP, OVP and SCP
Max PER 1e-6 / 1e-8
Latency <6.1mS/<3mS(LLF)
Max Transmit Power 4 dBm
Receiver Sensitivity -55 dBm
RF Interface F- Type Connector
RF Impedance 75 E
RF Frequency Band 400 MHz – 1675 MHz
Modulation Up to 1024 QAM
Throughput Up to 1.0 Gbps
