Mars Antennas

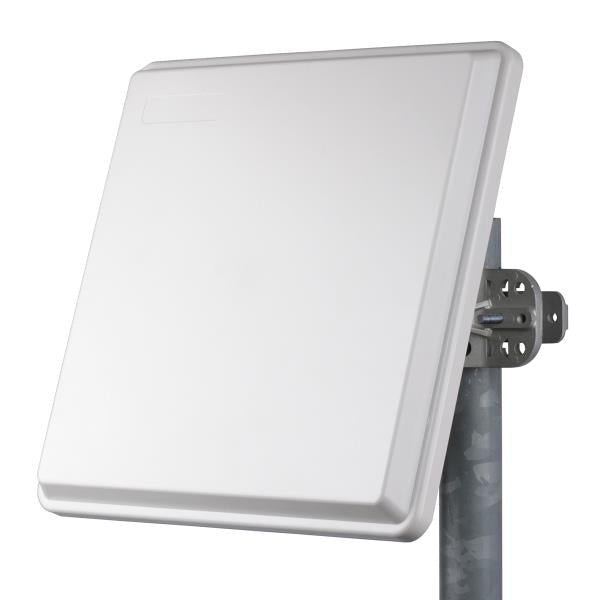

MARS 3.3GHz - 4.01GHz 90deg Dual Polarised Base Station Sector Antenna

MARS 3.3GHz - 4.01GHz 90deg Dual Polarised Base Station Sector Antenna

ANT-220

$295.00 NZD
$295.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MARS 3.3GHz - 4.01GHz 90deg Dual Polarised Base Station Sector Sector Antenna - MA-WD36-DP14NB
The MARS 3GHz 90deg Broadband Dual Polarised Sector Antenna provides a cost effective solution for LTE & WiMAX applications.
Features
  • Stable performance with 14 dBi of gain
  • Compact size allowing for easy blending with any environment
  • Tilt mount allowing quick and easy installation
  • UV protected radome suitable for harsh environment installations
  • Includes MNT-22 Bracket
Details
Manufacturer's Product Code MA-WD36-DP14NB
Frequency Range 3.3 - 4.01GHz
Gain 14dBi
Polarisation Dual Linear, Horizontal and Vertical
Vertical Beamwidth 12deg
Horizontal Beamwidth 90deg
Connector Type (2) N-Type Female
Dimensions 370 x 370 x 40 mm
Pole Mount Diameter 30-63mm
Details
Pole Mount Yes, MNT-22 Included
