• MARS 25dBi 4.9-5.875GHz Dual Polarized Antenna
1 1

Mars Antennas

MARS 25dBi 4.9-5.875GHz Dual Polarized Antenna

MARS 25dBi 4.9-5.875GHz Dual Polarized Antenna

ANT-106

$129.00 NZD
$129.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

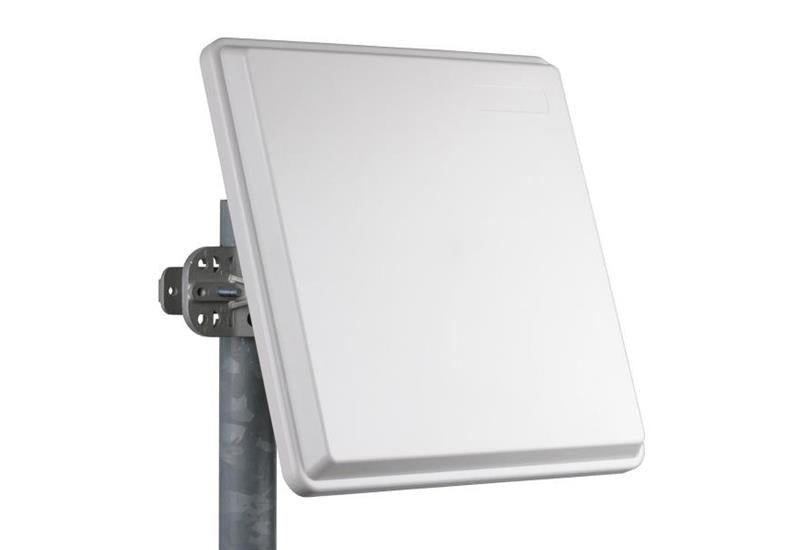

MARS 25dBi 4.9-5.875GHz Dual Polarized Antenna MA-WA56-DP25N
MARS 25dBi 4.9-5.875GHz Dual Polarized Antenna. The MARs MA-WA56-DP25N directional antenna enables WISPs and Integrators to design their own low cost high data rate, backhaul or subscriber links unit using 802.11n or dual radios. Great for Ubiquiti and MikroTik high speed 802.11ax/ac/n point to point wireless links. Works well with MikroTik NV2 and Ubiquiti AirMax TDMA wireless.
Features
  • Waterproof 5 GHz Dual Polarized Antenna
  • Azimuth/Elevation Adjustable Mount MNT-22
  • Efficient and stable performance
  • Highest range of ETSI Standards - TS3, TS4, TS5
  • UV protected radome allowing for harsh weather installations
  • Easy mounting allowing for Az/El adjustment
  • Carrier class construction
  • Expected 10 year working life span
  • Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)
Details
Manufacturer's Product Code MA-WA56-DP25N
Frequency Range 4.9-5.875GHz
Gain 25dBi
Polarisation Vertical and Horizontal
Vertical Beamwidth 7deg
Horizontal Beamwidth 7deg
Connector Type 2x N-Type Female
Dimensions 370 x 370 x 40 mm
Pole Mount Diameter 25-63mm
Details
Pole Mount Yes, MNT-22 Included
