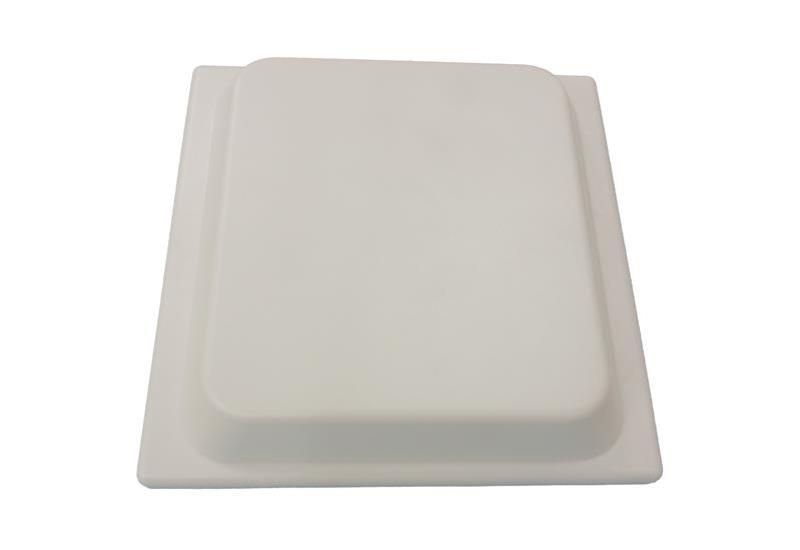

Mars 2.3-2.7GHz & 4.9-6.1GHz Dual Band Triple Polarity 120 Degree Sector Antenna

Mars 2.3-2.7GHz & 4.9-6.1GHz Dual Band Triple Polarity 120 Degree Sector Antenna

ANT-199

$65.00 NZD
$65.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Mars 2.3-2.7GHz & 4.9-6.1GHz Dual Ban Triple Pol Sector Antenna with Mount MNT-22Z, MA-WE2458-3H
The MARs Dual Band 2.4/5GHz Sector antenna provides coverage of 2.3-2.7GHz & 4.9-6.1GHz in a single antenna radome. The MARs MA-WE2458-3H is the perfect antenna for providing coverage of LTE, 802.11 a, b, g, e, n, WiMAX & 4.9 GHz Public Safety Bands. This antenna can be used indoors or outdoors and is made of UV stable polycarbonate.
Features
  • Includes MNT-22Z for pole mounting
Details
Manufacturer's Product Code MA-WE2458-3H
Frequency Range 2.3-2.7 GHz & 4.9-6.1 GHz
Gain 3 x 5 dBi
Polarisation Vertical & 2 Dual Slant ±45º
Vertical Beamwidth 70deg
Horizontal Beamwidth 120deg
Connector Type 3x Coax Cable RP-SMA Male
Dimensions 200 x 200 x 33 mm
Details
Mounting Hardware Yes, MNT-22Z Included
