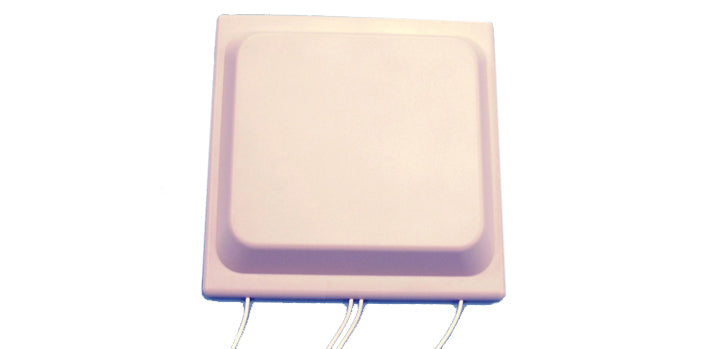

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Degree Sector Antenna

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Degree Sector Antenna

ANT-268

$245.00 NZD
$245.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Deg Sector Antenna
The MARs 2.3-2.7 GHz & 4.9-6.1 GHz Dual Band MIMO Applications 120 Deg Sector Antenna with Pole Mount-22. MARS Dual Band Sector antenna provides coverage of 2.3 to 2.7 GHz & 4.9 to 6.1 GHz in a single antenna radome.
Features
  • Simultaneous coverage of 802.11 a, b, g, e, n, ac, ax, WiMAX & 4.9 GHz Public Safety Bands
  • Light weight and durable construction.
  • UV protected radome made of plastic.
Details
Manufacturer's Product Code MA-WE2458-MIMO4-5B
Frequency Range 2.3-2.7 GHz and 4.9-6.1 GHz
GAIN 4 x 5 dBi @ 2.4GHz, 4 x 5 dBi @ 5GHz
VSWR typ 1.5 : 1
VSWR, max 2 : 1
Polarization Double dual Slant ±45deg
3 dB Beam-Width, H-Plane, typ 120deg
3 dB Beam-Width, E-Plane, typ 70deg
Input power, max 20 Watt
Input Impedance 50 Ohm
Dimensions (HxWxD) 200 x 200 x 33 mm (7.9" x 7.9" x 1.25")
Weight 260 gr.
Connectors RA RP-SMA Male
Back Plane Aluminum; protected through chemical passivation
Radome UV Protected Polycarbonate
Mount MNT-22Z Included
Operating Temp Range -40°C to +70°C
Vibration According to IEC 60721-3-4
Flammability UL94
Humidity ETS 300 019-1-4, EN 302 085 (annex A.1.1)
Details
Pole Mount Yes, MNT-22 Included
