MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna

MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna

ANT-130

$95.00 NZD
$95.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

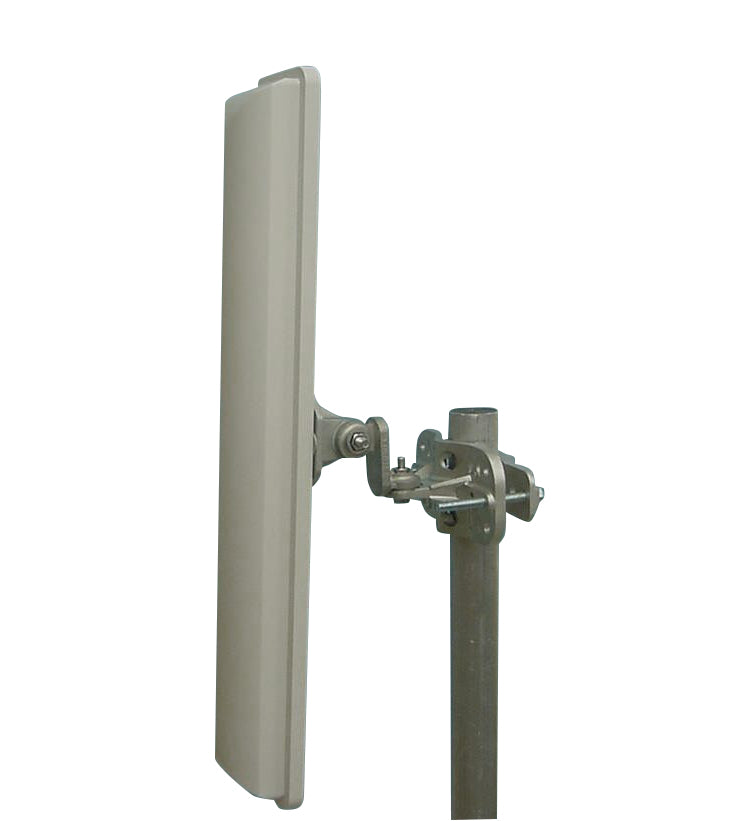

MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna MA-WD55-16
MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna. The MARS MA-WD55-16 90° Broadband Sector Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.
Features
  • Waterproof 5 GHz Vertical broadband sector Antenna
  • Azimuth/Elevation Adjustable Mount MNT-22
  • Efficient and stable performance
  • Highest range of ETSI Standards - TS3, TS4, TS5
  • UV protected radome allowing for harsh weather installations
  • Easy mounting allowing for Az/El adjustment
  • Carrier class construction
  • Expected 10 year working life span
  • Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)
Details
Manufacturer's Product Code MA-WD55-16
Frequency Range 4.9-6.1GHz
Gain 16dBi
Polarisation Vertical
Vertical Beamwidth 8deg
Horizontal Beamwidth 90deg
Connector Type N-Type Female
Dimensions 573 x 95 x 53 mm
Pole Mount Diameter 30-63mm
Details
Pole Mount Yes, MNT-22 Included
Warranty Standard 12 Month RTB
