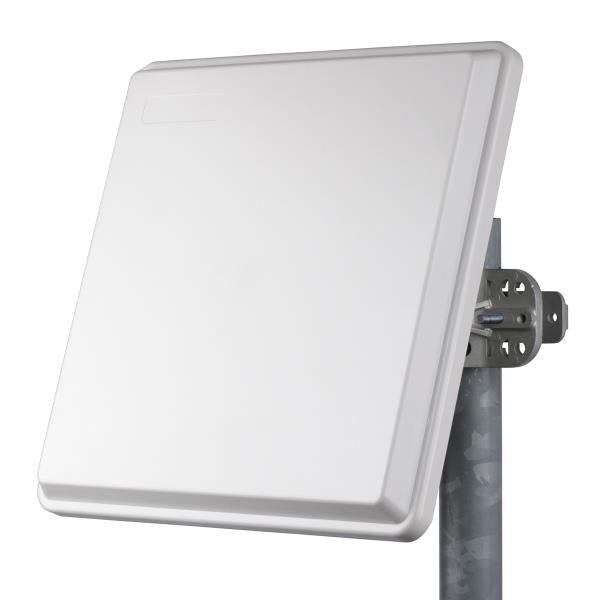

MARS 16dBi 4.9GHz - 6.1GHz Triple Polarisation 90deg MIMO Antenna

MARS 16dBi 4.9GHz - 6.1GHz Triple Polarisation 90deg MIMO Antenna

ANT-221

$259.00 NZD
$259.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
MARs 4.9-6.1 GHz Triple Polarisation 90deg MIMO Base Station Antenna - MA-WD56-DSV16B
The MARS MA-WD56-DSV16B 16dBi Triple Polarisation Sector Antenna provides coverage of 4.9 GHz to 6.1GHz frequency band in a single antenna radome.
Features
  • Dual Slant (±45º) and Vertical Polarization
  • Specially designed for MIMO applications for optimal decorrelation
  • Light weight and durable construction
  • UV protected radome made of polycarbonate
Details
Manufacturer's Product Code MA-WD56-DSV16B
Frequency Range 4.9-6.1GHz
Gain 16dBi
Polarisation Dual Slant 45deg and Vertical
Vertical Beamwidth Dual Slant: 90deg, Vertical: 90deg
Horizontal Beamwidth Dual Slant: 8deg, Vertical: 8deg
Connector Type (3) N-Type Female
Dimensions 370 x 370 x 40 mm
Pole Mount Diameter 30-63mm
Details
Pole Mount Yes, MNT-22 Included
Warranty Standard 12 Month RTB
