LTC2-SI2-AS923 - Dragino LTC2-SI2 Industrial LoRaWAN AS923 Dual Probe Temperature Transmitter
LTC2-SI2-AS923 - Dragino LTC2-SI2 Industrial LoRaWAN AS923 Dual Probe Temperature Transmitter
SKU:LTC2-SI2-AS923
Regular price
$159.00 NZD
Regular price
Sale price
$159.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability

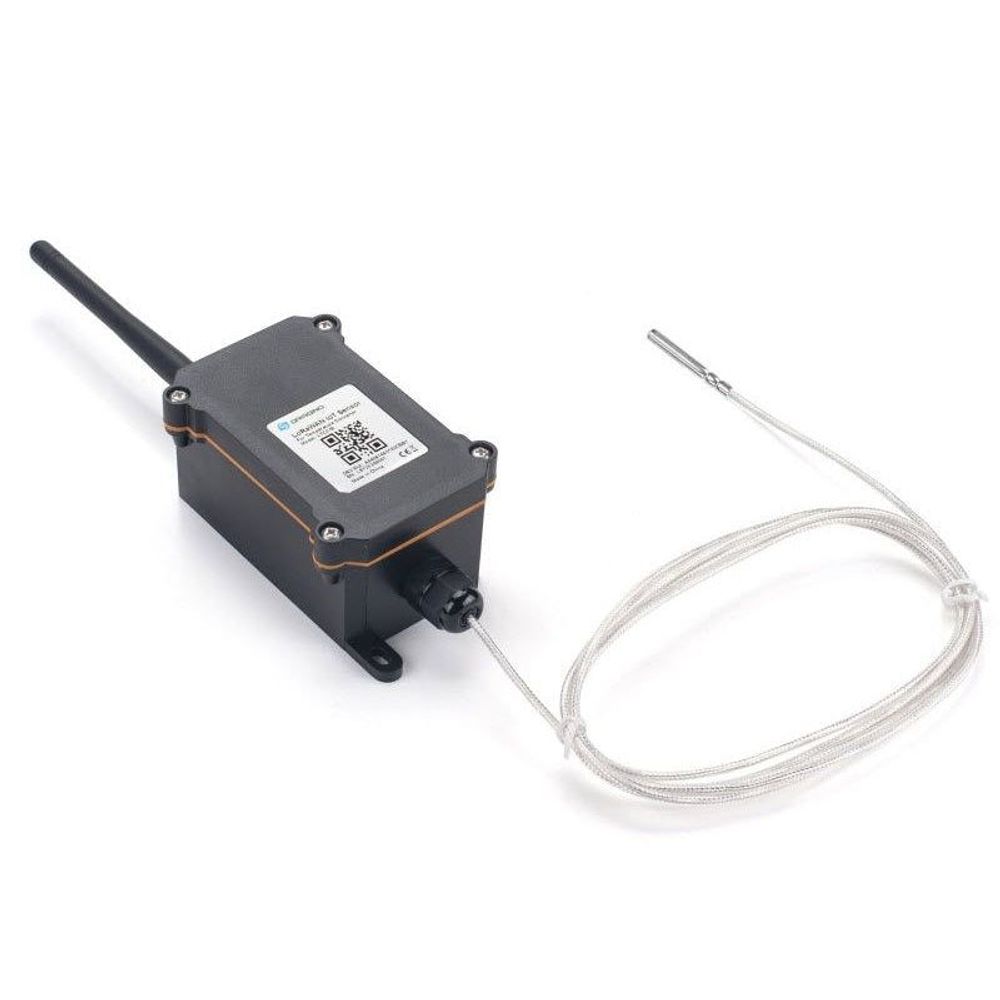

Dragino LTC2-SI2 Industrial LoRaWAN AS923 Dual Probe Temperature Transmitter. The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and uplink to IoT server via LoRaWAN protocol.
LTC2 supports datalog feature. User can retrieve the sensor value via LoRaWAN downlink command. LTC2 is powered by 8500mA Li-SOCI2 battery for long time measurement. The battery can run 2~10 years depends on the network environment and working mode.
Each LTC2 has two internal 16 bit ADC interfaces and are calibrated on 12 set resistors to make sure the accuracy measurement on wide range.
LTC2 is LoRaWAN v1.0.3 compatible. Each LTC2 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.
Need help selecting the right IoT solution?
.
LTC2 supports datalog feature. User can retrieve the sensor value via LoRaWAN downlink command. LTC2 is powered by 8500mA Li-SOCI2 battery for long time measurement. The battery can run 2~10 years depends on the network environment and working mode.
Each LTC2 has two internal 16 bit ADC interfaces and are calibrated on 12 set resistors to make sure the accuracy measurement on wide range.
LTC2 is LoRaWAN v1.0.3 compatible. Each LTC2 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.
Need help selecting the right IoT solution?
.
Features
- LoRaWAN v1.0.3 Class A
- max: 2 x monitor temperature channels
- Support 3 -wire PT-100
- 8500mAh Li-SOCI2 Battery
- Firmware upgrade via console
- Wall Mountable
- Configurable via LoRa or UART
- Datalog and retrieve via LoRaWAN
- Use pre-load PT100 probe or 3rd PT100 probe
- Factory calibration for different resistance range
- Support accuracy measure of resistance and upload
- Battery Monitoring and upload
| Details | |
|---|---|
| Product Code | LTC2-SI2-AS923 |
| Frequency | AS923 |
| LoRaWAN v1.0.3 | Class A |
| Measure Range | -50 to 200 °C |
| Channel | 2 x monitor temperature channels |
| Cable Length | 2 meters |
| Sensors | 3 -wire Heraeus PT-100 |
| Battery | 8500mAh Li-SOCI2 Battery |
| Antenna connectr | SMA Female |
| Firmware upgrade | Via console |
| Configuration | LoRa or UART |
| Factory calibration for different resistance range | Yes |
| Support accuracy measure of resistance and upload | Yes |
| Battery Monitoring and upload | Yes |
| Power Consumption | Sleeping Mode: 33uA, Sampling: 20mA, LoRa Transmit: 24 ~ 150mA |
| Mounting | Wall Mountable |
| Device Size | 150 x 120 x 55 mm |
| Details | |
|---|---|
| Included | 1 x LTC2-SI2, 1 x rubber Duck Antenna |
