Dahua

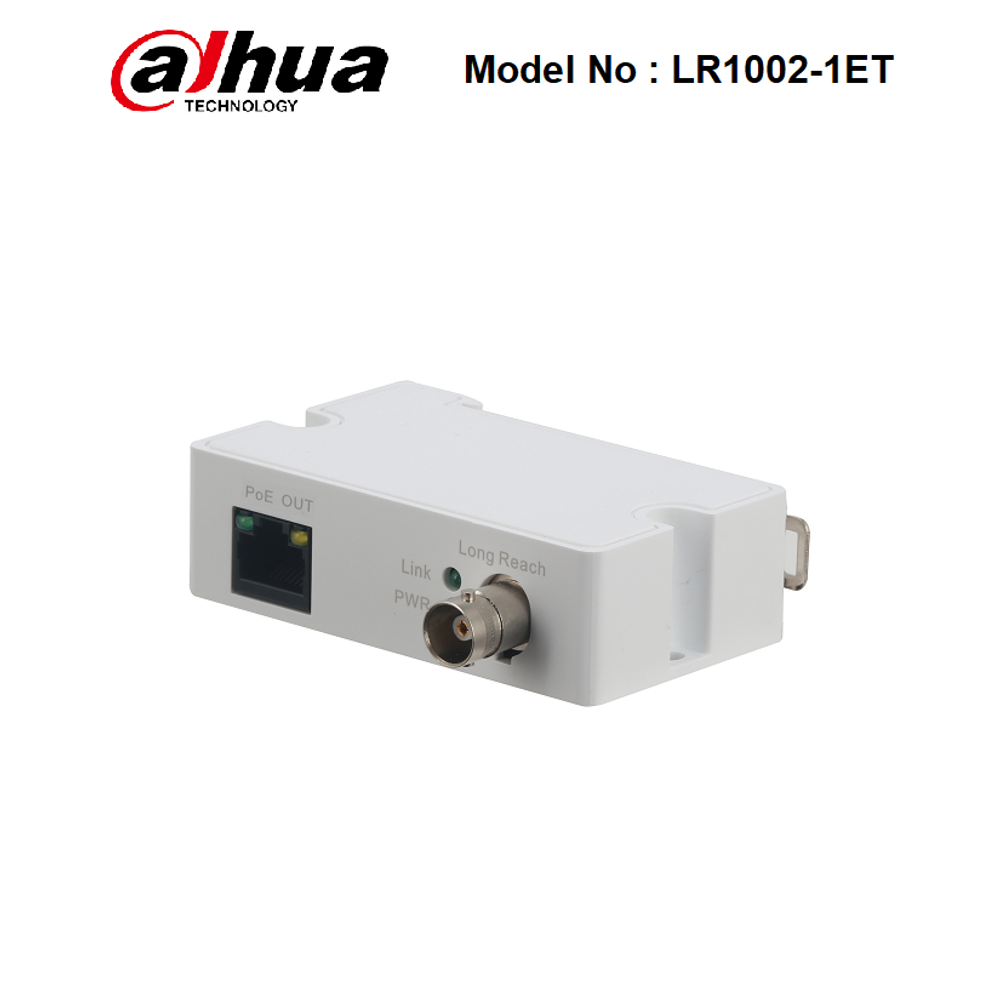

LR1002-1ET - Dahua - Ethernet over Coax Transmitter

LR1002-1ET - Dahua - Ethernet over Coax Transmitter

DH-LR1002-1ET

$78.67 NZD
$80.20 NZD $78.67 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Features

Includes:

  • Supports IEEE802.3, IEEE802.3u standards
  • Supports IEEE802.3af and IEEE802.3at power supply (PoE and PoE+) standards
  • Port: 1*RJ45 10/100Mbps, 1*BNC
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps.
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable
Specs

Technical Specification

Model

LR1002-1ET

LR1002-1EC

Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps

PoE Protocol

IEEE802.3af, IEEE802.3at

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Operating Temperature

-30C-65C

Operating Humidity

5%~95%

Weight

61g

Dimension (W??D??H)

79mmx52mmx23mm


Power Feed Capabilities for different distances, assuming use of RG59 (with max. DC resistance < 5.0/100m) :

LR1002-1ET/LR1002-1EC

Supports with 48V

Supports with 53V

100m

Bandwidth (Mbps)

100

100

Load Capacity (W)

21

25.5

200m

Bandwidth (Mbps)

100

100

Load Capacity (W)

15

24

300m

Bandwidth (Mbps)

100

100

Load Capacity (W)

11

19

400m

Bandwidth (Mbps)

100

100

Load Capacity (W)

9

16

500m

Bandwidth (Mbps)

10

10

Load Capacity (W)

7

13

800m

Bandwidth (Mbps)

10

10

Load Capacity (W)

5

8

1000m

Bandwidth (Mbps)

10

10

Load Capacity (W)

4

6
