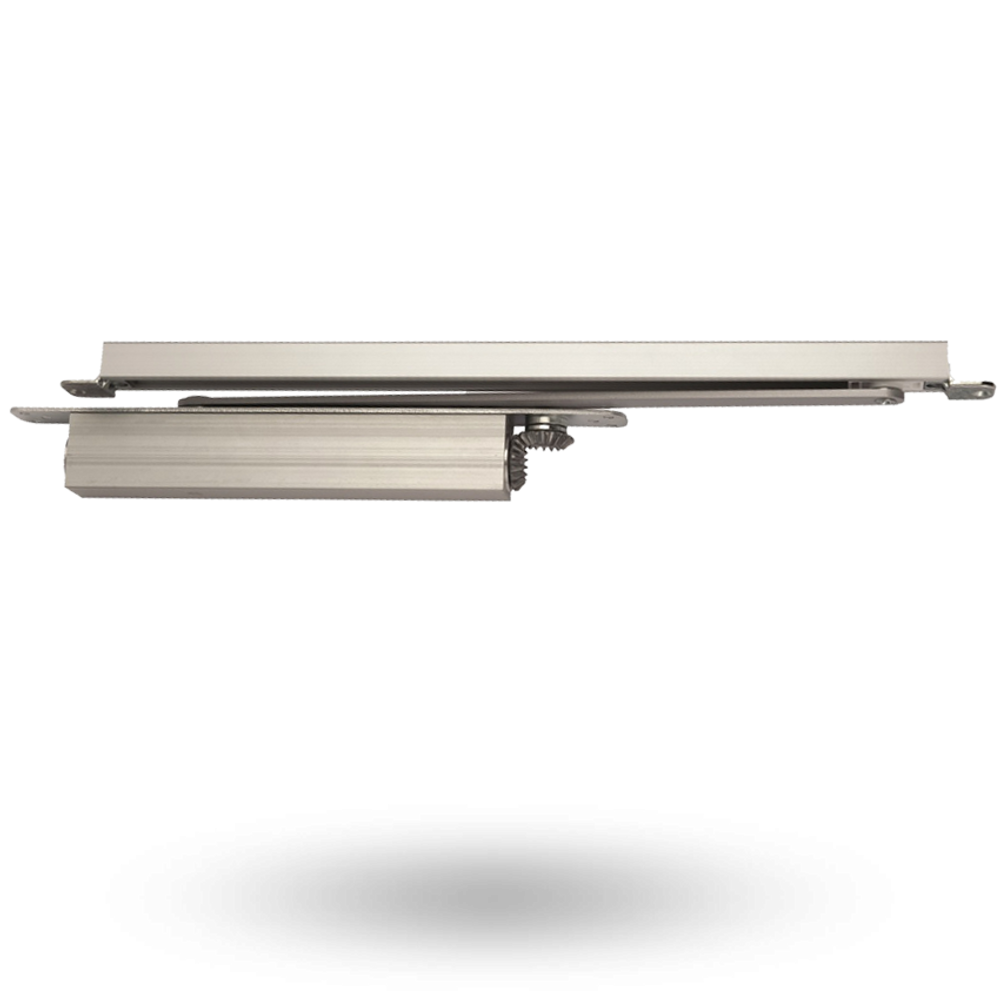

Lockwood Cam Action Concealed Door Closer
The Lockwood 8014 Cam Action Concealed Door Closer is a non handed cam action concealed door closer designed specifically for heavy duty use applications. Thanks to the cam construction it is extremely light to open but strong enough to close the door in every situation. The Lockwood 8014 closer can be adjusted to meet the requirements of the light opening resistance.
Features
Certified to EN1154
Adjustable closing force size EN 1-4
Maximum door width 1100mm
Maximum door weight 80kgs

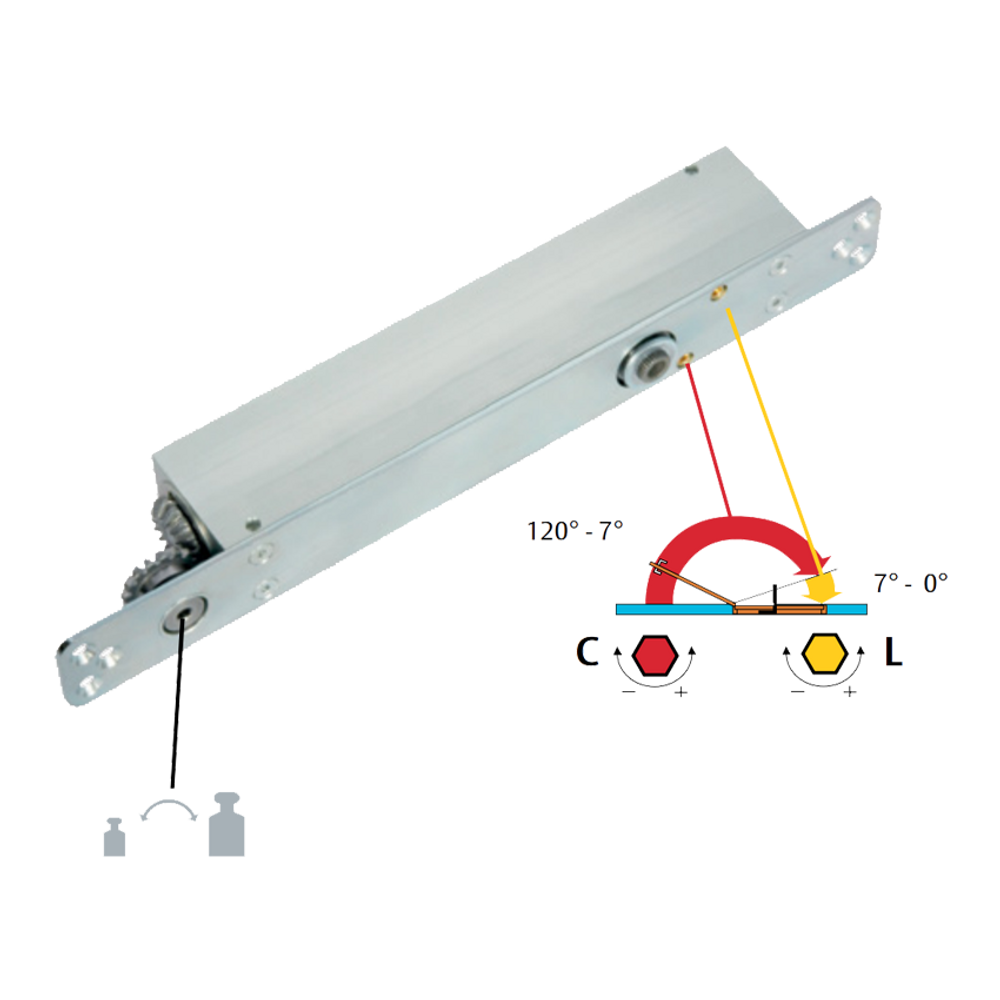

Separate adjusting valves for closing and latching speed, mechanical BC
Pressure relief valve to protect against abuse
Wide operating temperature range: -15 to 45°C
Anodized aluminium door closer body
Maximum opening angle 120°
Minimum door thickness 40mm
For fire door applications add 2616-153 opening damper
Polyester powdercoat finish
Supplied in trade pack
Fire Rated The Lockwood 8014 Cam Action Concealed Door Closer have been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.Â
