LFH21602 - Tycab Speaker Cable 0.5mm Grey or Black, 100m or 500m

LFH21602 - Tycab Speaker Cable 0.5mm Grey or Black, 100m or 500m

LFH21602-SYBK-100

$110.25 NZD
$110.25 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Select Option

In stock
Features

Includes:

  • A twin, figure 8 cable with a 0.5mm² conductor.
  • Extra-low voltage applications, general uses include speaker and home theatre connections.

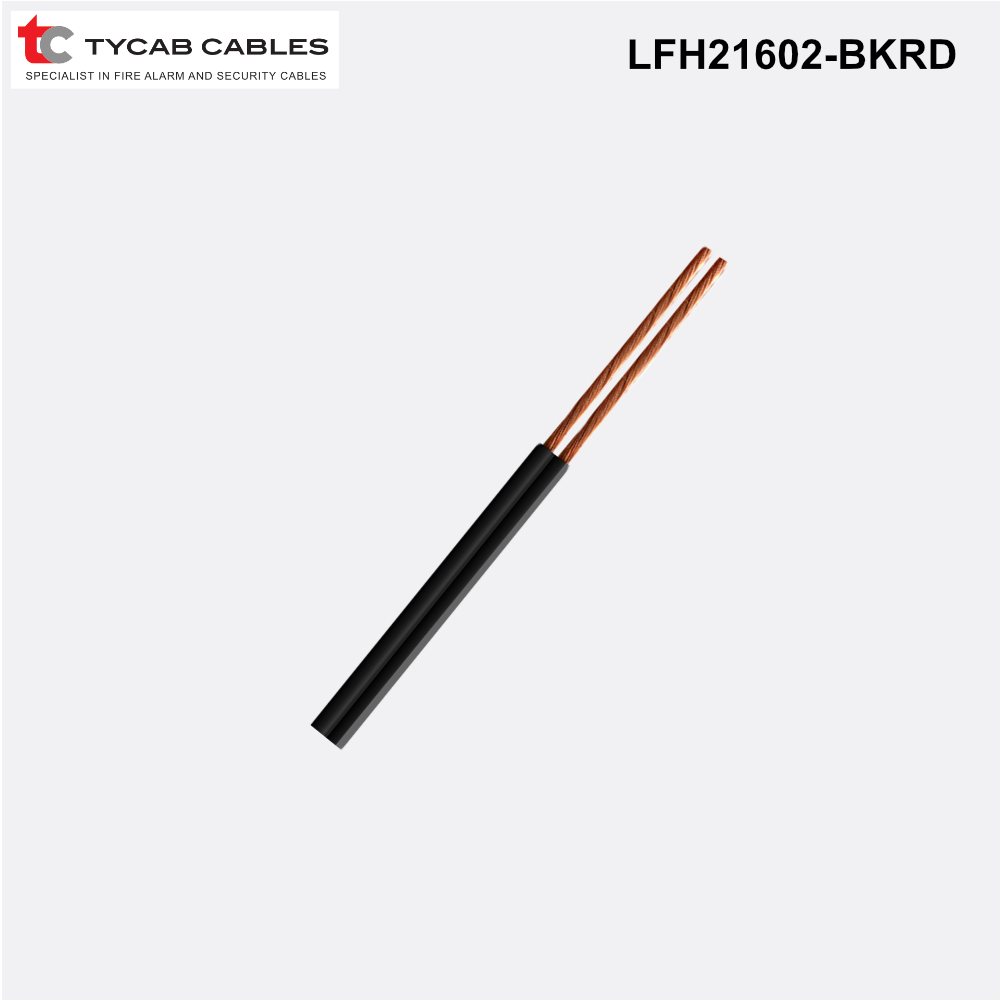

  • Black outer sheath - Red Stripe

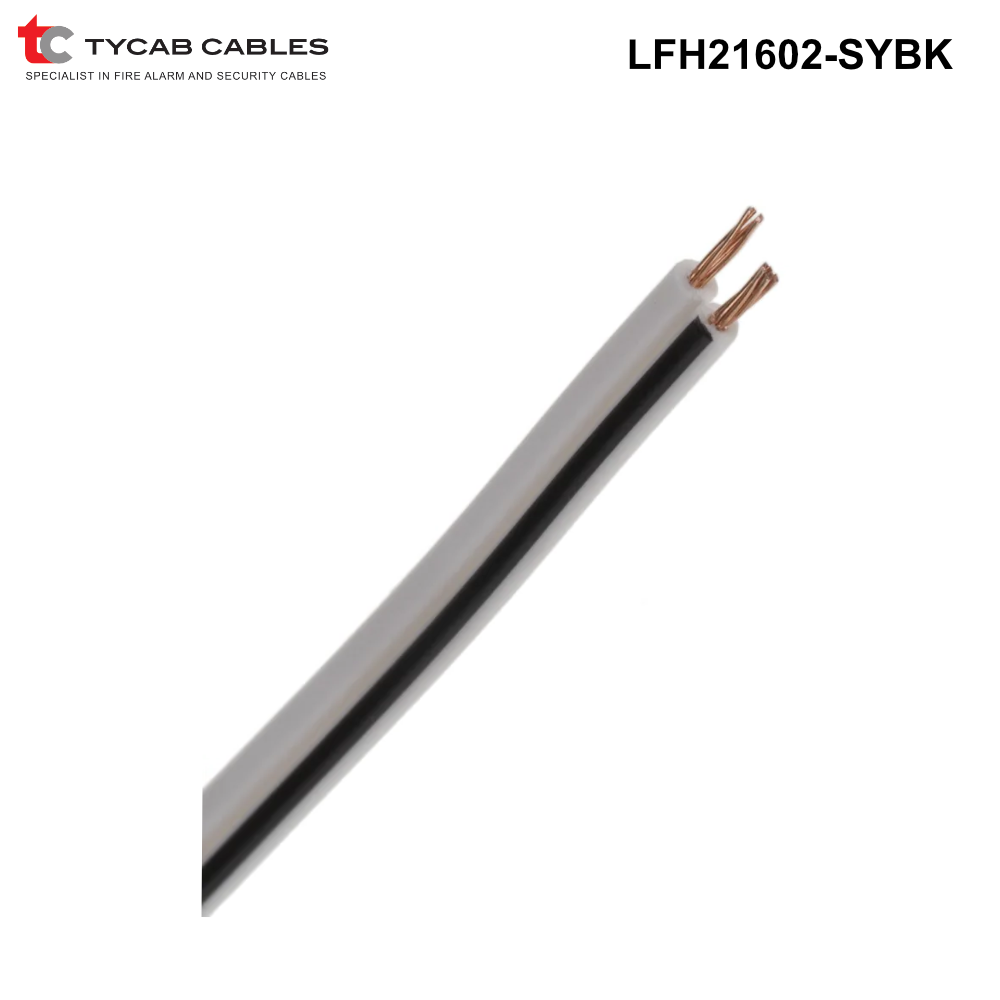

  • Grey outer sheath - Black Stripe
  • Available 100m or 500m drums
Specs

PRODUCT SPECIFICATION

1. PRODUCT CODE LFH21602

2. DESCRIPTION 2 Core Parallel Webbed (Figure 8) 16/.2 (0.50 mm sq). P.A.C.W. FLEXIBLE P.V.C Insulated. Extra Low Voltage cable. Not for mains connection.

3. CONSTRUCTION

3.1 CONDUCTOR : 16 strands of 0.2 mm Plain Annealed Copper to AS1125 drawn from Class 110A copper to AS1574. Max. D.C. resistance at 20C : 39.0 ohms / km

3.2 INSULATION : Coloured 75 C P.V.C. Parallel Webbed (Figure 8) Nominal Diameter : 2.0 x 4.5mm Nom. Wall Thickness : 0.5 mm

3.3 POLARITY IDENTIFICATION By permanent extruded stripe on one leg.
