Tycab

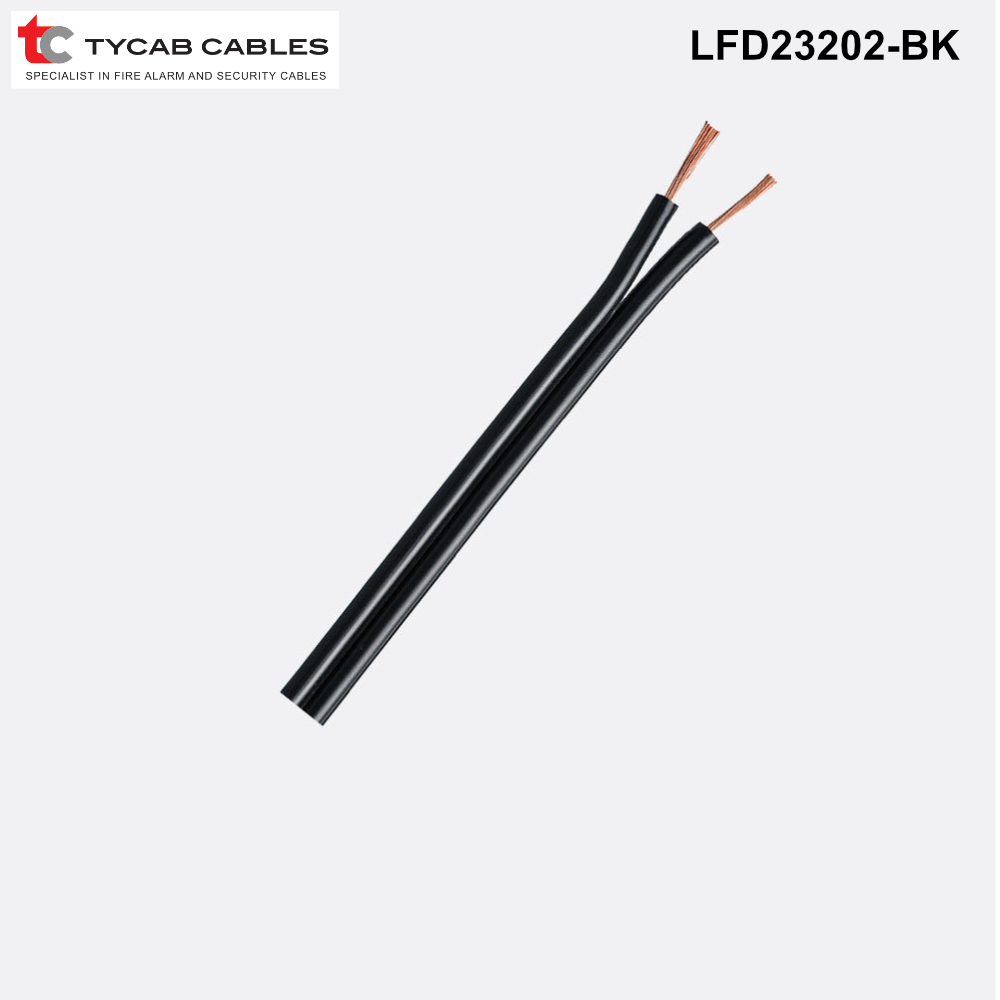

LFD23202-BK-100 - Tycab 1.0mm² 2 Core Garden Lighting Cable

LFD23202-BK-100 - Tycab 1.0mm² 2 Core Garden Lighting Cable

LFD23202-BK-100

$171.00 NZD
$114.00 NZD $171.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Features

Includes:

  • 2 Core Parallel Webbed (Figure 8) 32/.2 (1.0 mm sq). P.A.C.W.
  • U.V resistant V90HT P.V.C insulated.
  • Extra Low Voltage Garden Light cable. Not for mains connection.
  • Oxygen Free copper. RoHS compliant PVC.
  • Low voltage power cable
Specs

2 Core Parallel Webbed (Figure 8) 32/.2 (1.0 mm sq). P.A.C.W.
U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen Free copper. RoHS compliant PVC.

Construction

Conductor: 32 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 Class 5 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.7 ohms / km.

Insulation: Coloured U.V Resistant V90HT P.V.C.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 2.6 x 5.7 mm.
Nominal Wall Thickness: 0.6 mm.

Identification: Printed on insulation and metre-marked – TYCAB GARDEN LIGHTING 1MMSQ 001M >I< – Meter mark low number on bottom, high number on top.
