Tycab

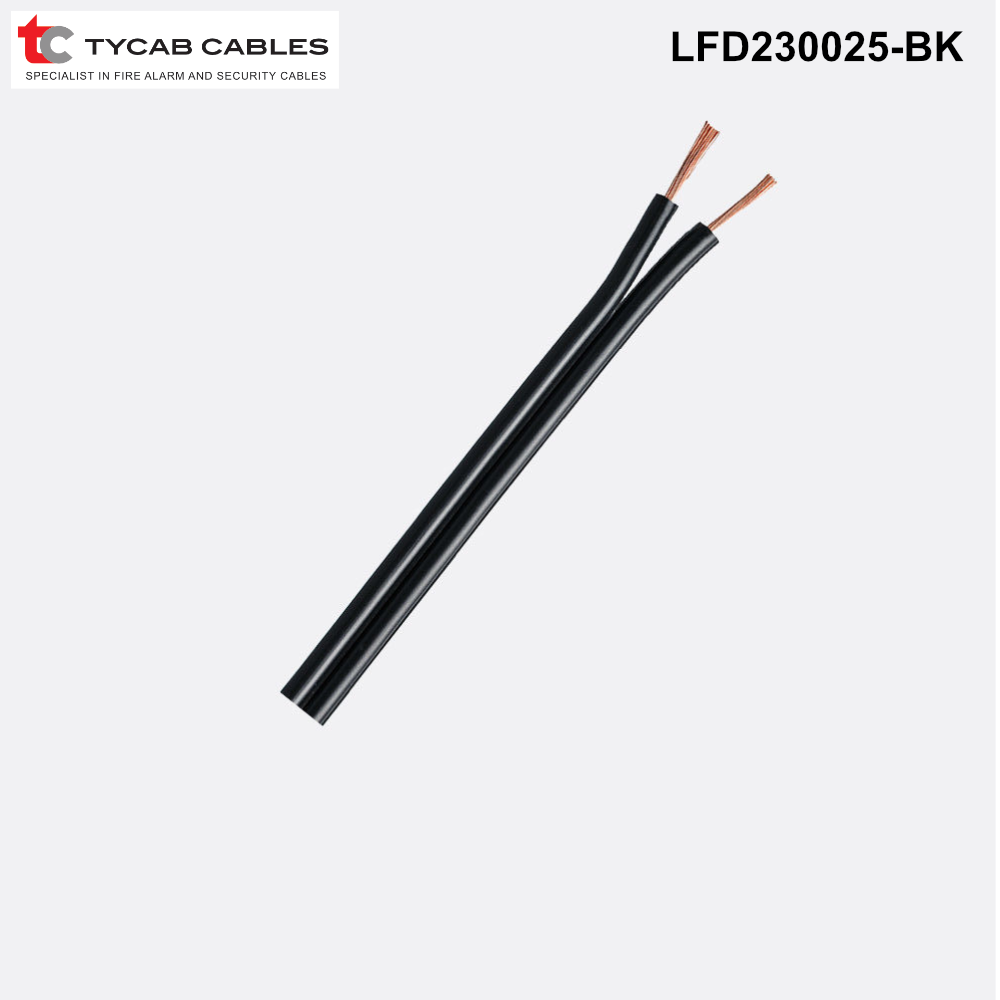

LFD230025-BK-100 - Tycab 1.5mm² 2 Core Garden Lighting Cable

LFD230025-BK-100 - Tycab 1.5mm² 2 Core Garden Lighting Cable

LFD230025-BK-100

$222.75 NZD
$148.50 NZD $222.75 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Features

Includes:

  • 2 Core Parallel Webbed (Figure 8) 30/.25 (1.5 mm sq). P.A.C.W.
  • U.V resistant V90HT P.V.C insulated.
  • Extra Low Voltage Garden Light cable. Not for mains connection.
  • Oxygen Free copper. RoHS compliant PVC.
  • Low voltage power cable
Specs



2 Core Parallel Webbed (Figure 8) 30/.25 (1.5 mm sq). P.A.C.W.
Flexible U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen-Free copper. RoHS compliant PVC.

Construction

Conductor: 30 strands of 0.25mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 13.7 ohms / km.

Insulation: Coloured U.V Resistant V90HT P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 4.0 x 8.3 mm.
Nominal Wall Thickness: 1.1 mm.

Polarity Identification: By permanent raised rib on one leg.

Printing: TYCAB GARDEN LIGHTING 1.5MMSQ 001M >I< – Meter mark low number on bottom, high number on top.
