Tycab

LFC22402 - Tycab Speaker Cable 0.75mm Grey or Black, 100m or 500m

LFC22402 - Tycab Speaker Cable 0.75mm Grey or Black, 100m or 500m

LFC22402-SYBK-100

$118.50 NZD
$118.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Select Option

In stock
Features

Includes:

  • A twin, figure 8 cable with a 0.75mm² conductor.
  • Extra-low voltage applications, general uses include speaker and home theatre connections.

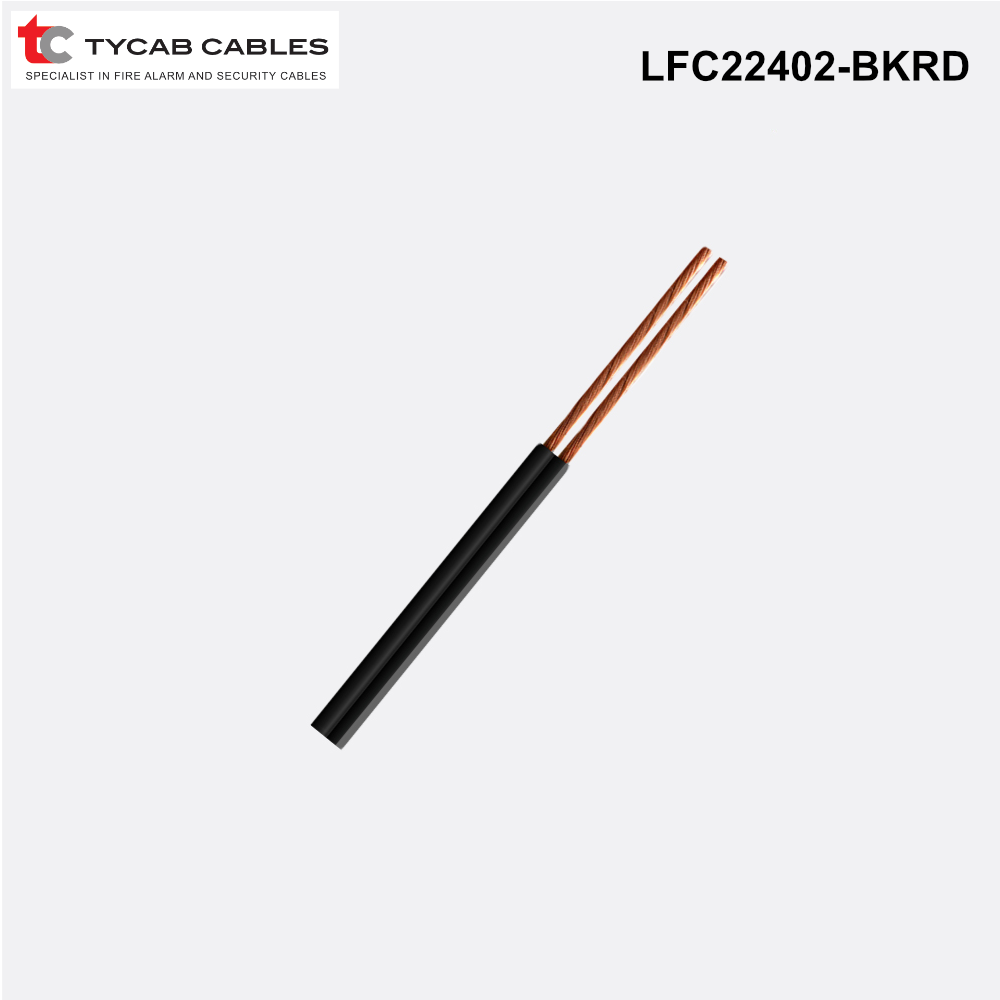

  • Black outer sheath - Red Stripe

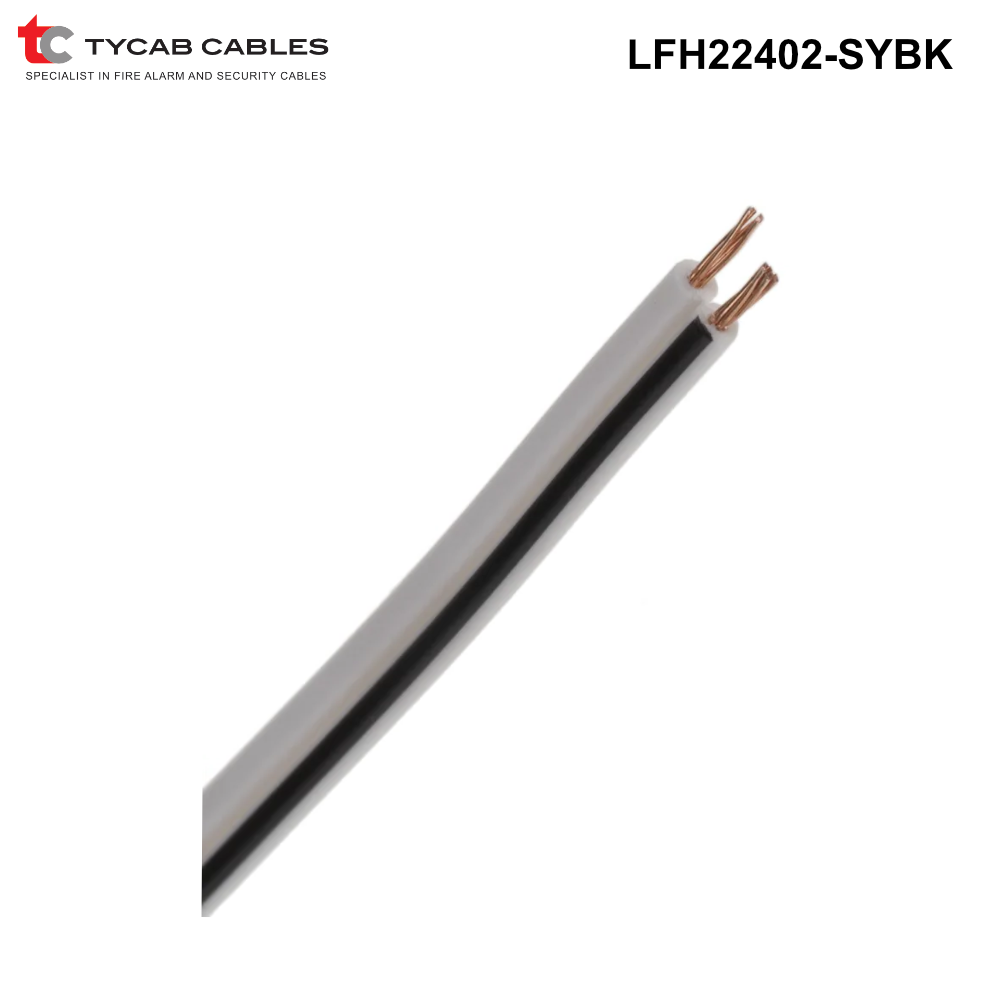

  • Grey outer sheath - Black Stripe
  • Available 100m or 500m drums
Specs



2 Core Parallel Webbed (Figure 8) 24/.2 (0.75mmsq). P.A.C.W.
V75 P.V.C insulated. Extra Low Voltage. Not for mains GPO connection.
Oxygen Free copper. RoHS compliant PVC.

Construction

Conductor: 24 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.5 ohms / km.

Insulation: Coloured V75 P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8) construction.
Nominal Diameter: 2.4 x 5.2 mm.
Nominal Wall Thickness: 0.6 mm.

Identification: Polarity ribs on one leg.

Branded: TYCAB LFC22402 AUSTEL APP.
