LC01 - BPT - LITHOS - Audio Entry Panel
LC01 - BPT - LITHOS - Audio Entry Panel
SKU:LC01
Regular price
$305.33 NZD
Regular price
Sale price
$305.33 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Features
Includes:
Contains:

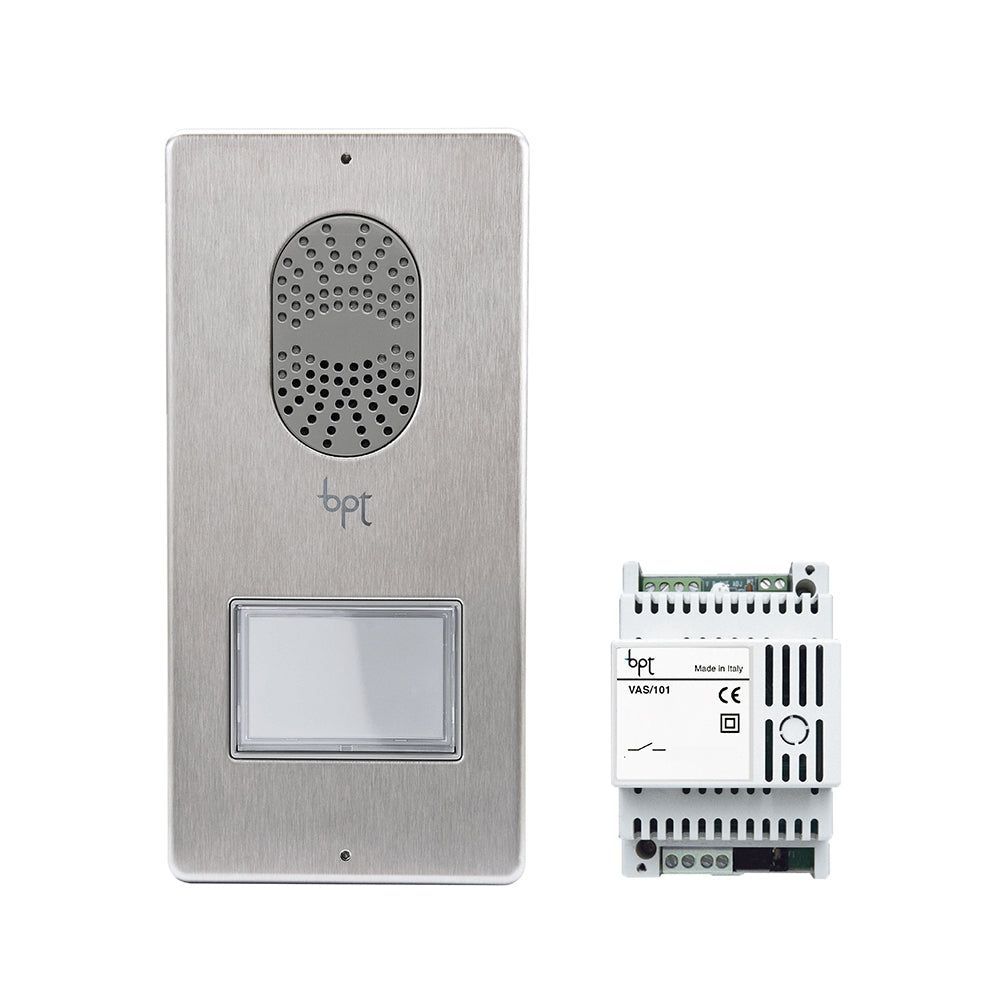

- 1x LC 01 - Entry panel
- 1x DP H - Double Height Single Push Button
- 1x VAS 101 - 18 V DC - 1000 mA Power Supply
- AISI 316L brushed stainless steel finish

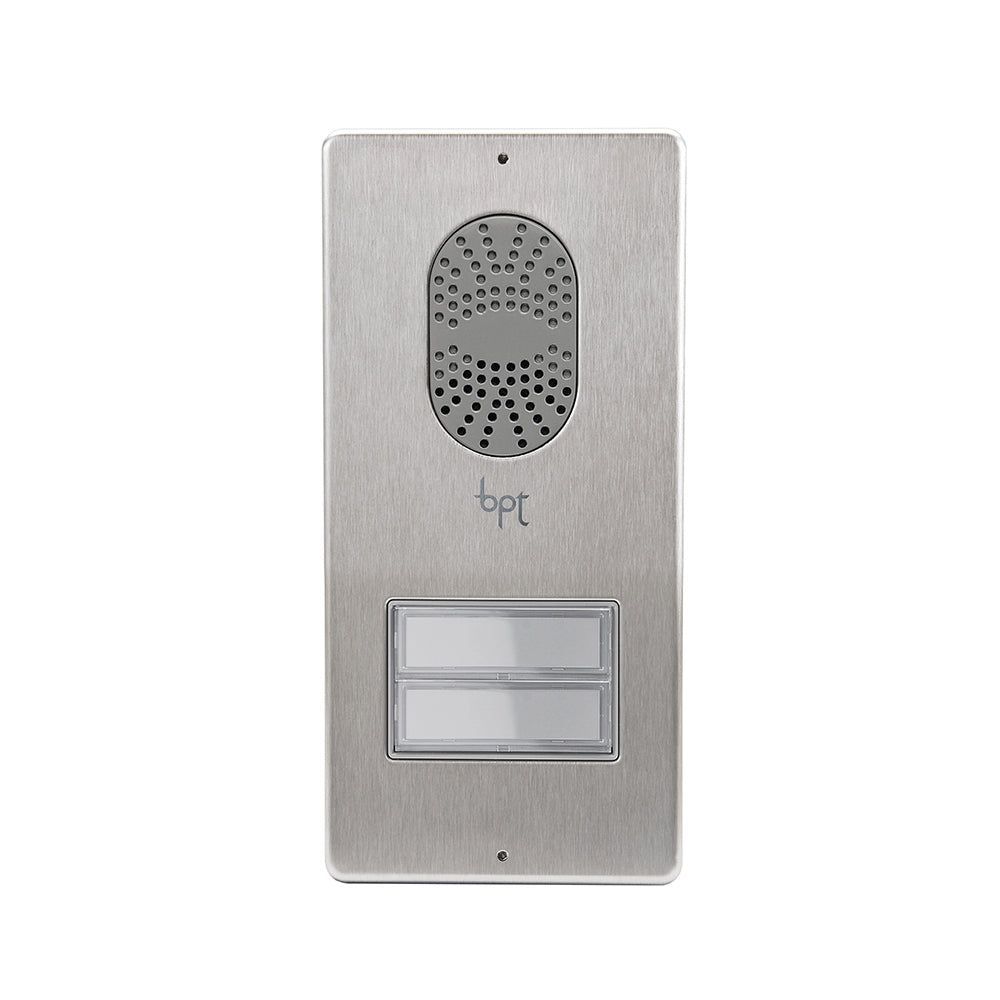

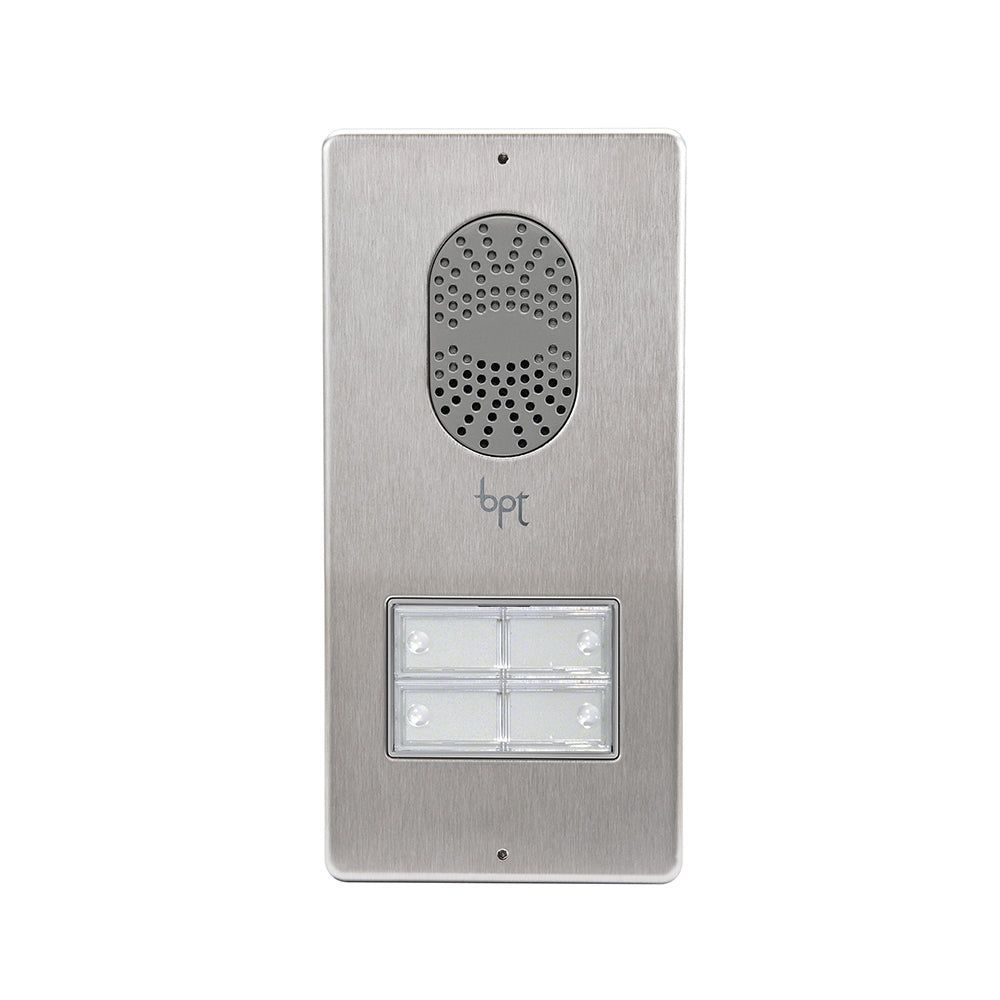

- From 1 to 4 calls depending on buttons selected
- Speaker, microphone and electric lock-timing adjustments
- High efficiency 4 LED illuminator
- Surface mounted
- Power supply supports cable runs up to 50m
- Alternative Power Supplies available on request
- Alternative Buttons sold separately
Specs
Model - LC 01
|
Dimensions (mm) |
99 ?? 207 ?? 30 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power supply (V) |
16 / 18 DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Consumption in stand-by mode (mA) |
75 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. absorption (mA) |
120 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating temperature (?øC) |
-25 / +50 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection rating (IP) |
54 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
Brushed Stainless Steel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
