• Laird DCE10-H-001 DCE 10 x 10inch Aluminium Enclosure
1 1

Laird Connectivity

Laird DCE10-H-001 DCE 10 x 10inch Aluminium Enclosure

Laird DCE10-H-001 DCE 10 x 10inch Aluminium Enclosure

DCE-04

$167.00 NZD
$167.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

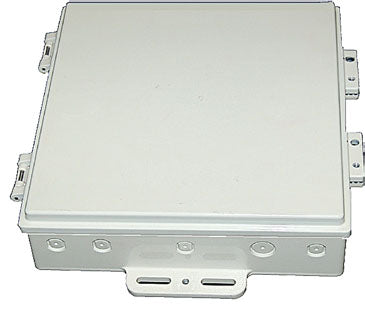

Laird Technologies DCE10-H-001 DCE 10 x 10 Housing w/ Aluminum Door
Laird 10x10x2 Die Cast Aluminium Enclosure with 11 engineered knockouts Nema 6 Rated with pole mount bracket.

The die-cast enclosure can be pole or wall mounted. A heavy-duty tilt bracket is available for those installations requiring up or down tilt. Eleven (11) engineered knockouts are provided; 9 sized for N connectors and 2 sized for a cable feedthrough.
Features
  • 11 engineered knockouts
  • Wide band antennas
  • Rugged and weatherproof
  • Hinged cover for easy maintenance
  • IP 67 Rated
Details
Product Code DCE10-H-001
Knockouts (Qty 11) Qty 3 0.810 Diameter hole Qty 8 0.625 Diameter hole, Double D
Knockout Locations Qty 5 on bottom, Qty 3 on Right Side, Qty 2 on Top and Qty 1 in Back
Useable Interior Space 10 x 10 x 2 (181 x 156 x 51mm)
Mounting 1 to 2 pole using included bracket kit, or wall mount using user supplied screws
Cover Seal High Performance EPDM Gasket
Solar Heat Rise Internal Temperature 4 deg C above External Ambient
Overall Size (L x W x H) 12.5 x 10.4 x 3.6 (254 x 180 x 57mm)
Weight 5.75 lb.
Details
Enclosure 10x10x2 Die Cast Aluminium Included
Ethernet Cable Gland Included
Mounting Hardware Pole/Wall Mount Kit Included
