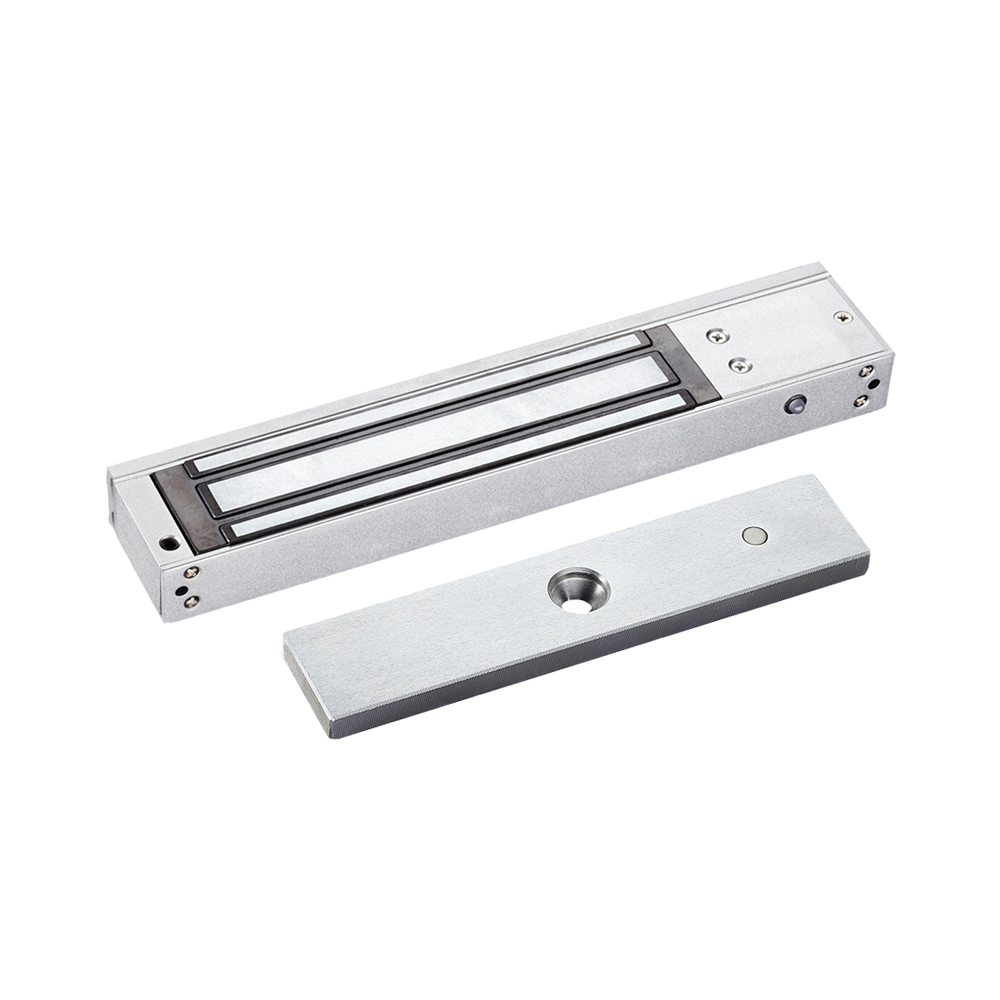

IT280T(LED)-DS - Single Door Magnetic Lock With Builtin LED, 600lbs ( 280KG) & Door Sensor Missing Screws
IT280T(LED)-DS - Single Door Magnetic Lock With Builtin LED, 600lbs ( 280KG) & Door Sensor Missing Screws
SKU:IT280T(LED)-DS
Regular price
$111.25 NZD
Regular price
Sale price
$111.25 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
MODEL NO : IT280T(LED)-DS
> Holding Force 600Lbs
> Voltage 12/24VDC+10%
> Current Draw: 12V/500mA,24V/250mA
> Lock Size: 250L x 48.5W x25H(mm)
> Plate Size:180L x 38W x 11H(mm)
> Optional Bracket IT280ZL, IT280UL
> Signal Output Dry Contact, Max Rating of Contact Current 3A
> LED Indication Red Door Unlock, Green Door locked
> Door status signal output NO,NC,COM
> Suitable for: Wooden/Glass/Fireproof & Metal Door
> Surface Temp: +20C, Operating Temp: -10C+55C
> Suitable Humidity: 0~90%(non-condensing)
> Shell Finish: Anodized aluminum, Lock and Plate Zinc
> Weight: 2kg
Spec Sheet
