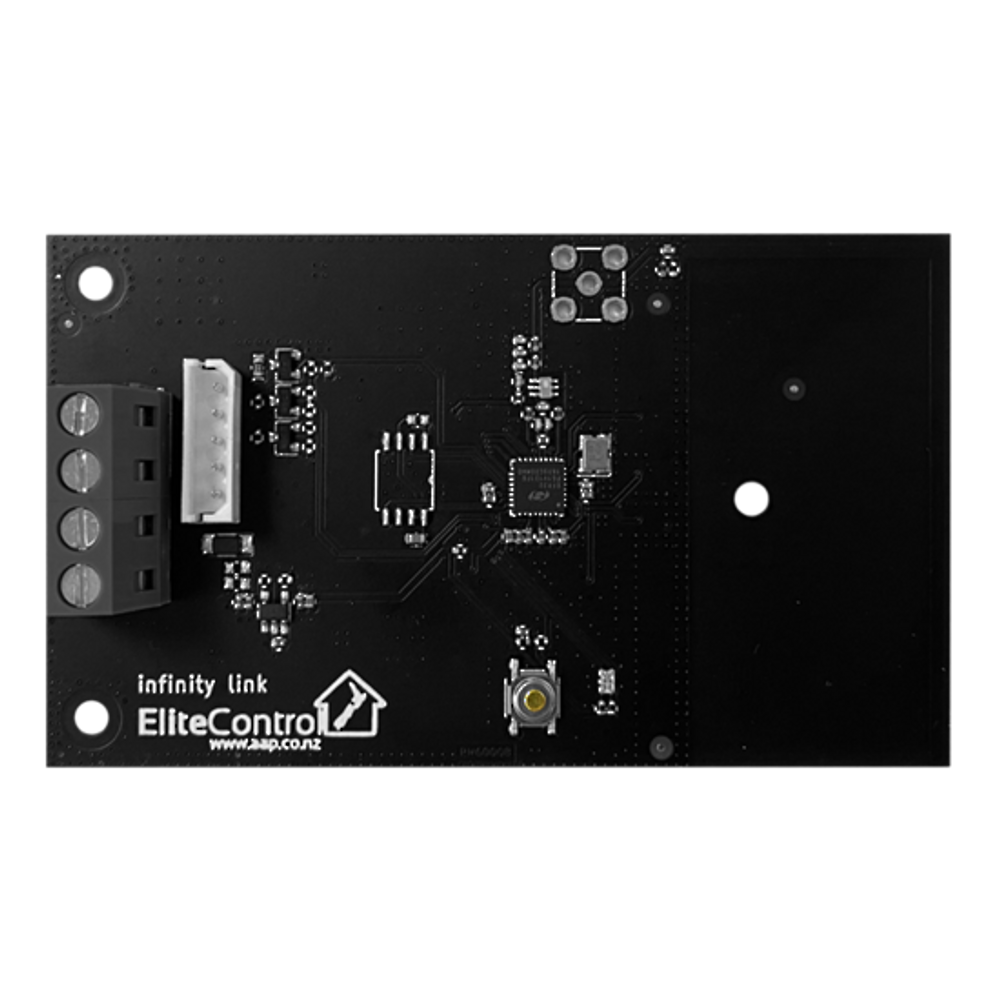

Infinity Link - Wireless transceiver 915Hz for ESL & ESX

Wireless transceiver 915Hz for ESL & ESX


Frequency: 915Mhz
Modulation: GFSK
Protocol: infinity 2 way encrypted
Operating Temperature: -20 to 50 Deg. C
Environment Humidity: 85% max
Dimensions: 90mm x 52mm x 18mm
Weight including Battery: 40g
Event Transmission: Alarm, Tamper, Low Battery & Supervision
Max Support Devices: 16 x Inputs, 2 x Sirens & 20 x Remotes
Supplied with: 3 x Adhesive mounting feet, 1 x 300mm quick connect cable

Works on systems: EC-PCB, EC-i, ESL, ESL-2, ESX, Elite-S, Elite-S Lite, Runner
