Advantech

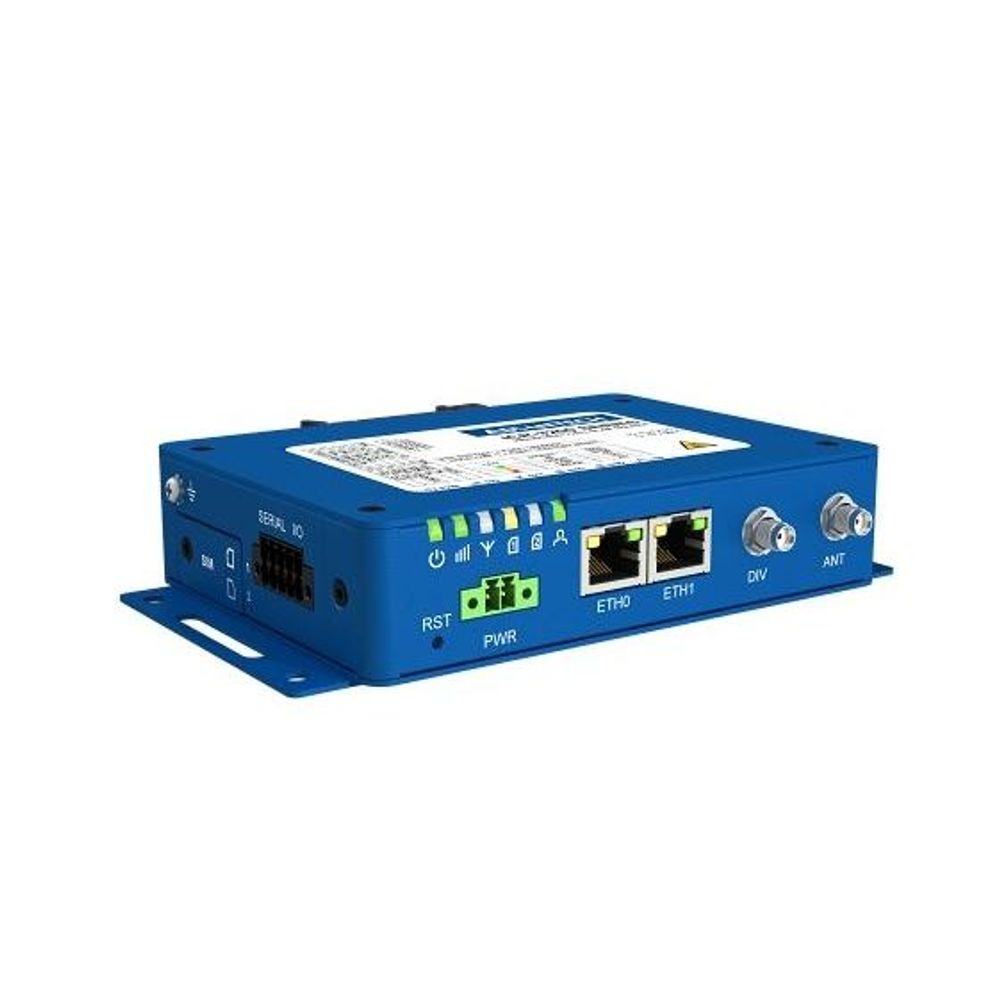

ICR-3232 - Advantech ICR-3232 IoT 4G LTE Router Gateway

ICR-3232 - Advantech ICR-3232 IoT 4G LTE Router Gateway

ICR-3232

$1,049.33 NZD
$1,049.33 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview The ICR-3232 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more. With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.

Features

  • 4G LTE Cat.4 VPN Gateway for Industrial IoT applications
  • Powerful CPU with 1.3 GB storage to host customer SW applications
  • 2× SIM with cover, eSIM ready
  • 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
  • Robust metal cover with DIN and Wall mount options
  • Operational temperature range from -40 °C to +75 °C
  • Backup real time clock
  • Sleep mode & Power ignition

Specifications

CPU, Memory CPU Power 2 DMIPS per MHz
RAM 512MB
Flash Memory 2× 256 MB FW 512 MB - User data storage 838 MB - Space for User Modules
Ports, LED, Antennas 2x Ethernet RJ45, 10/100 Mbps
2x Sim Mini SIMs (2FF)
LED Indicators PWR, SIGNAL, DAT, SIM1, SIM2, USR, ETH
2x ANT SMA Connectors
1x RS232, 1xRS485 (10-Way Terminal block)
I/O 1x Digital Input (On Voltage: 2.7V to 36VDC) 1x Binary Output (10-Way Terminal block)
Cellular Module Parameters LTE parameters LTE: Cat.4, 3GPP E-UTRA Release 11 FDD frequencies: 700 MHz (B28), 850 MHz (B5), 900 MHz (B8), 1700 MHz (B4), 1800 MHz (B3), 1900 MHz (B2), 2100 MHz (B1), 2600 MHz (B7) TDD frequencies: 2300 MHz (B40) LTE FDD bit rates: 150 Mbps (DL) / 50 Mbps (UL) LTE TDD bit rates: 130 Mbps (DL) / 35 Mbps (UL) Supported bandwidths: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz
TD-SCDMA Parameters Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100MHz Bit rates: 4.2 Mbps (DL) / 2.2 Mbps (UL)
HSPA+ Parameters HSPA: 3GPP R8 DC-HSPA+ Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100 MHz Bit rates: 42 Mbps (DL) / 5.76 Mbps (UL)
EDGE Parameters Supported frequencies: 800MHz, 900 MHz, 1800 MHz, 900MHz Data throughput: max. 236.8 kbps
UMTS Parameters Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100 MHz Bit rates: 384 kbps (DL) / 384 kbps (UL)
GPRS Parameters Supported frequencies: 800MHz, 900 MHz, 1800 MHz, 900MHz Data throughput: max. 85.6 kbps
Power, Consumption, Environmental, IP Cover Power Supply 9–36VDC (2-Way Terminal block)
Temperature Range – Operating / Storage -40 to +75 °C / -40 to +85 °C
Humidity – Operating / Storage (noncondensing) 0 to 95 % / 0 to 95 %
Cold Start -40 °C
Operating Altitude 2000 m / 70 kPa
Enclosure Rating IP30
Mechanical Metal case, Metal DIN rail, Wall mount kit Metal
Dimensions (mm) 55 x 97 x 125 (150mm including DIN)
Weight 477g
36 Month Return to Base Warranty
