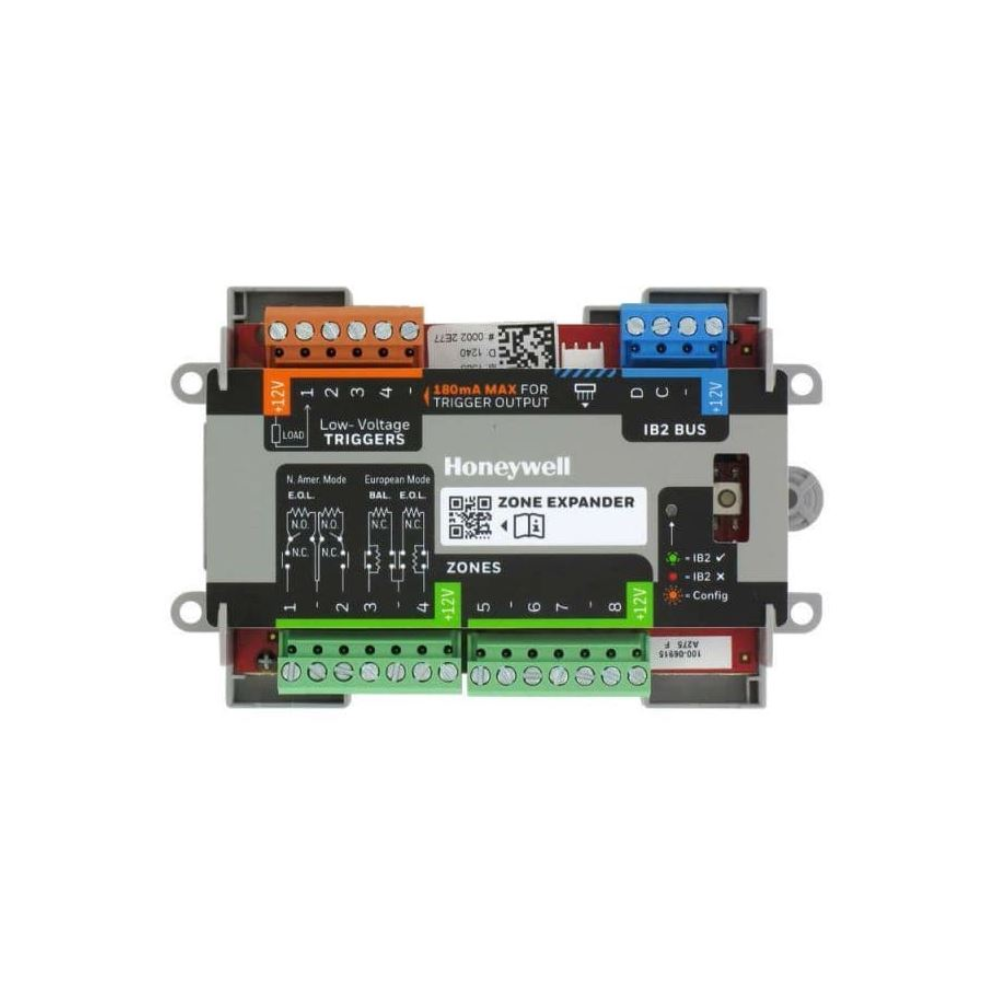

Honeywell MPIEIO84E MAXPRO® Intrusion / Alarm 8-Zone Input Expander with 4x Trig

Honeywell MPIEIO84E MAXPRO® Intrusion / Alarm 8-Zone Input Expander with 4x Triggered Outputs

Honeywell MPIEIO84E. MAXPRO Intrusion zone expander module. 8 wired zones. Support for supervised EOLR, NO or NC wiring, balanced double value, balanced triple value. Four programmable low voltage trigger outputs. Remote enclosure or separate cabinet mounting. Avoidable off-wall cover and tamper protection. EN 50131-3: 2009 Grade 3. Environmental class II

The MAXPRO Intrusion zone expander module offers eight additional hardwired zones for use with MPI control panels and four additional low voltage trigger outputs.

Features :-

• Input voltage: 13.8V DC nominal (10V ~ 14.5V DC)
• Consumption in standby: 35 mA
• Maximum consumption: 60 mA (all active zones)
• 8 zone inputs
• Input voltage: 3.3V DC
• Resistance tolerance: 1% maximum
• 4 trigger outputs
• Trigger output voltage: 13.7V DC (0V DC if switched)
• Maximum current per output: 180 mA
• -10 ° C ~ + 50 ° C operating temperature
• For inside use only
• 93% maximum relative humidity (non-condensing)
• Protection against entry and impacts: EN 60529: 1992 + A2: 2013: IP42 / EN 62262: 2002: IK06
• Auxiliary Control Equipment (ACE): Type B
