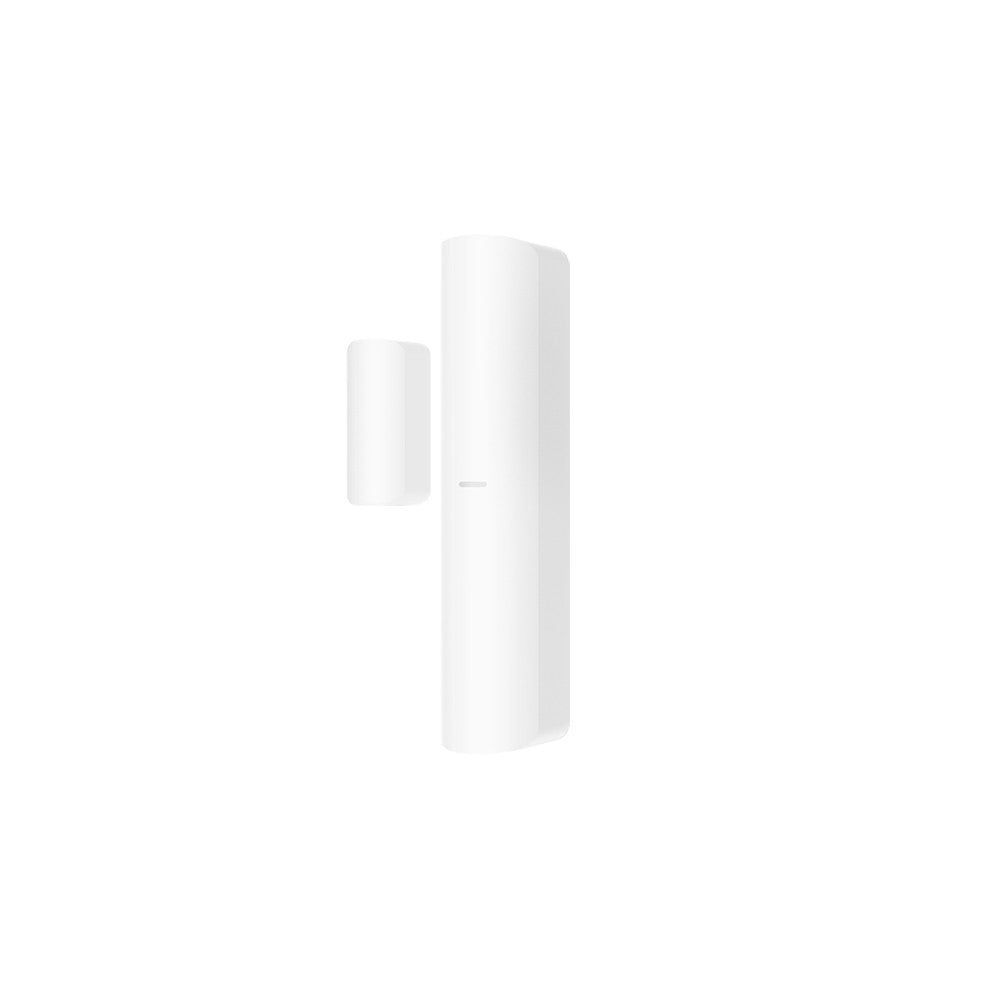

Hikvision DS-PDMC-EG2-WB 433MHz Battery-Powered Indoor Wireless Door Contact

Hikvision DS-PDMC-EG2-WB 433MHz Battery-Powered Indoor Wireless Door Contact – Slim Design – To Work with AX Pro Hub

Features :-

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time

Upgrade Firmware using Hik-Partner Pro app (for installers)

Upgrade Firmware using Hik-connect app (for consumers)

Detection Performance

• Detection Method: Opening Contact
• Detection Gap: 43mm Max

Feature

• Digital Processing: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed; Normally Open; Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1.2Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: 5 years in work status (being triggered 20 times per day)
• Power Supply: Battery Powered
• Battery Type: CR123A x 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (W x H x D): 22.5mm × 103mm × 23.2mm; 13mm × 34.4mm × 11.4mm
• Weight: 59g
• Application Scenario: Indoor
