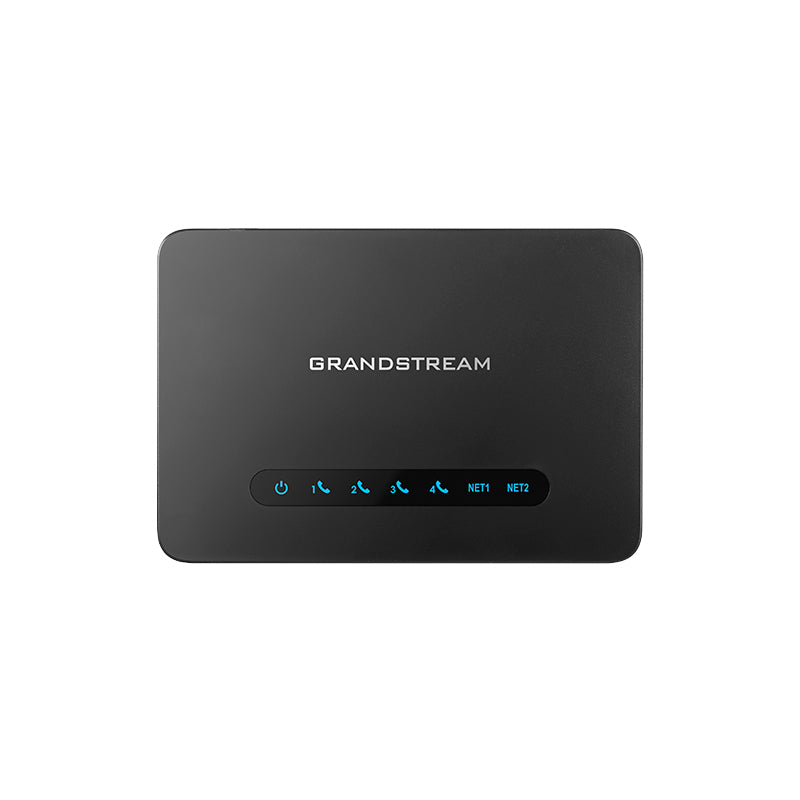

Grandstream HT814V2 4 Port FXS VoIP Gateway with Gigabit Ethernet NAT Router

Grandstream HT814V2 4 Port FXS VoIP Gateway with Gigabit Ethernet NAT Router

HT814V2

$164.00 NZD
$164.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Grandstream HT814V2 4 Port FXS VoIP Gateway with Gigabit Ethernet NAT Router
The HT814 v2 is an advanced 4-port VoIP gateway with 4 FXS ports and an integrated Gigabit Ethernet NAT router.

The Grandstream HT814V2 is an easy-to-use 4-port VoIP analog telephone adapter (ATA) with 4 FXS ports and an integrated Gigabit NAT router. Built upon Grandstream’s market-leading SIP ATA/gateway technology with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various application environments, strong encryption with unique security certificate per unit, automated provisioning for volume deployment and device management, and outstanding network performance for home and office use. The HT814 delivers outstanding VoIP technology and routing capabilities to home and office environments and allows users to successfully connect their analog devices to a manageable and powerful VoIP network.
Features
  • supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps
  • TLS and SRTP security encryption technology to protect calls and accounts
  • LED Indicators - POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4
  • Automated provisioning options include TR-069 and XML config files
  • supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • supports T.38 Fax for creating Fax-over-IP
  • supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Details
Manufacturer's Product Code HT814V2
Telephony Interface (4) RJ11 FXS ports
Network Interface (2) 10/100/1000Mbps RJ45 ports
LED Indicators POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 2 REN, up to 1km on 24AWG line.
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Dial Methods DTMF, Pulse
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic Shaping
Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
Media SRTP
Control TLS/SIPS/HTTPS, SDP(RFC 2327), Refer (RFC 3515), Offer/Answer (RFC3265), SIP V2.0 (RFC 3261, 3262, 3264), RFC3261, ETC (3GPP TS 24.629, RFC 3515, RFC 3891, RFC 3892), SIP Session Timer (RFC 4028)
Power Supply Input: 100-240VAC, 50-60Hz, Output: 12V/1.0A
Environmental Operational: 32º – 123ºF or 0º – 50ºC, Storage: 14º – 140ºF or -10º – 60ºC, Humidity: 10 – 90% Non-condensing
Dimension and Weight 28.5 x 130 x 90 mm (H x W x D) Weight: 0.29 Kg
Compliance FCC/CE/RCM, K.21
Details
Power Supply 12VDC/1A PSU
