Grandstream HT812V2 2-Port ATA Analogue Phone Adaptor with Gigabit Router

Grandstream HT812V2 2-Port ATA Analogue Phone Adaptor with Gigabit Router

HT812V2

$104.00 NZD
$104.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

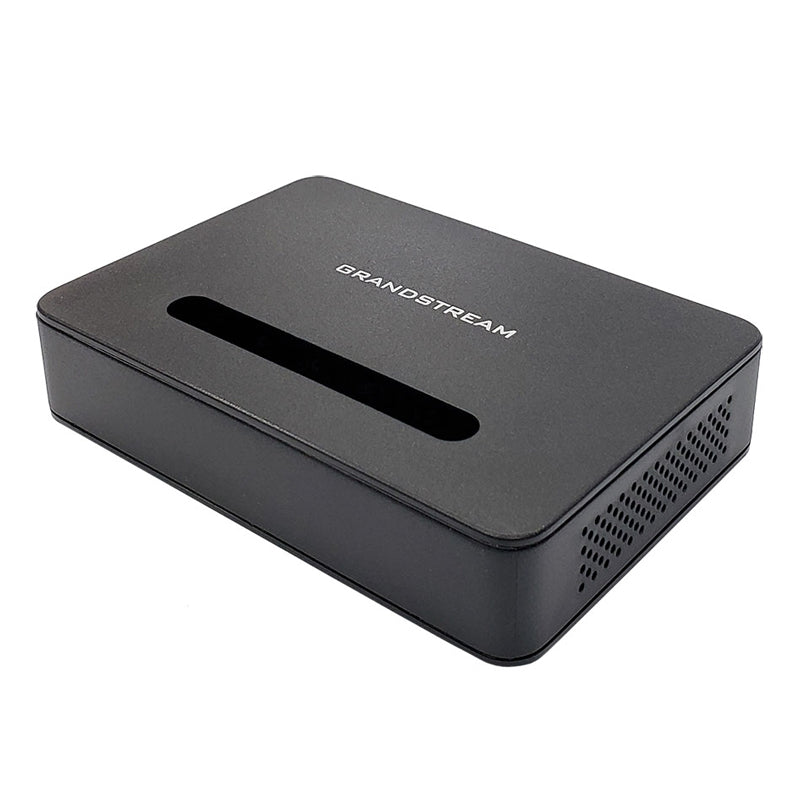

Grandstream HT812V2 2-Port ATA Analogue Phone Adaptor with Gigabit Router
The Grandstream HT812V2 is an advanced 2-port analog telephone adapter (ATA) with 2 FXS ports and an integrated Gigabit NAT router. Built upon Grandstream’s market-leading SIP ATA/gateway technology with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various application environments, strong encryption with unique security certificate per unit, automated provisioning for volume deployment and device management, and outstanding network performance for home and office use.
Features
  • supports 2 SIP profiles through 2 FXS ports and dual Gigabit ports
  • Includes a built-in NAT router which can handle routing speeds up to 100Mbps
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • supports T.38 Fax for creating Fax-over-IP
  • supports a wide range of caller ID formats
  • High performance NAT router
  • Exceptional voice quality with wideband HD codec
Details
Manufacturer's Product Code HT812V2
Telephone Interfaces Two (2) RJ11 FXS ports; can be expanded by peering with an FXS gateway
Network Interfaces Two (2) 10/100/1000Mbps RJ45 ports
LED Indicators POWER, NET1, NET2, PHONE1, PHONE2
Factory Reset Button Yes
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 3 REN, up to 1km on 24AWG line
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Dial Methods DTMF, Pulse
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS), Traffic shaping
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
Security Media SRTP
Control TLS/SIPS/HTTPS, SDP(RFC 2327), Refer (RFC 3515), Offer/Answer (RFC3265), SIP V2.0 (RFC 3261, 3262, 3264), RFC3261, ETC (3GPP TS 24.629, RFC 3515, RFC 3891, RFC 3892), SIP Session Timer (RFC 4028)
Management Syslog support, SSH, remote management using web browser
Universal Power Supply Input: 100-240VAC, 50-60Hz, Output: 12V/0.5A Included
Environmental Operational: 32º – 123ºF or 0º – 50ºC, Storage: 14º – 140ºF or -10º – 60ºC, Humidity: 10 – 90% Non-condensing
Dimension and Weight 28.5 x 130 x 90 mm (H x W x D), Weight: 353.33g
Compliance FCC/CE/RCM, K.21
Details
Power Supply 12VDC/0.5A PSU
