Grandstream HT802V2 2(FXS) 1(10/100Mbps) Port Analog VoIP ATA Adapter

Grandstream HT802V2 2(FXS) 1(10/100Mbps) Port Analog VoIP ATA Adapter

HT802V2

$89.00 NZD
$89.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

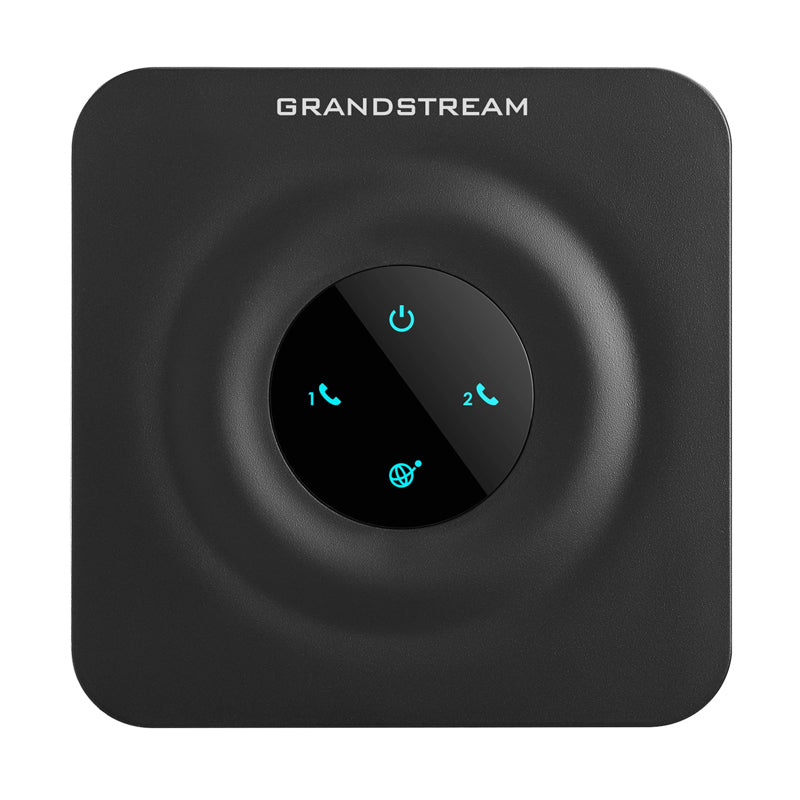

Grandstream HT802V2 2(FXS), 1(10/100Mbps) Port Analog VoIP ATA Adapter
The Grandstream HT802V2 is a 2 port VoIP analogue telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analogue phones and enables service providers to offer high quality IP service. The HT802 is an ideal ATA for individual use and for large scale commercial IP voice deployments.
Features
  • supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • supports T.38 Fax for creating Fax-over-IP
  • supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Details
Manufacturer's Product Code HT802V2
Telephony Interface Two (2) FXS ports
Network Interface One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 2 REN: Up to 1km on 24 AWG
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS Layer 3 (ToS, DiffServ, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Dimensions 100mm x 100mm x 29.5mm
Upgrade/Provisioning HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Details
Power Supply 5VDC/1A PSU
