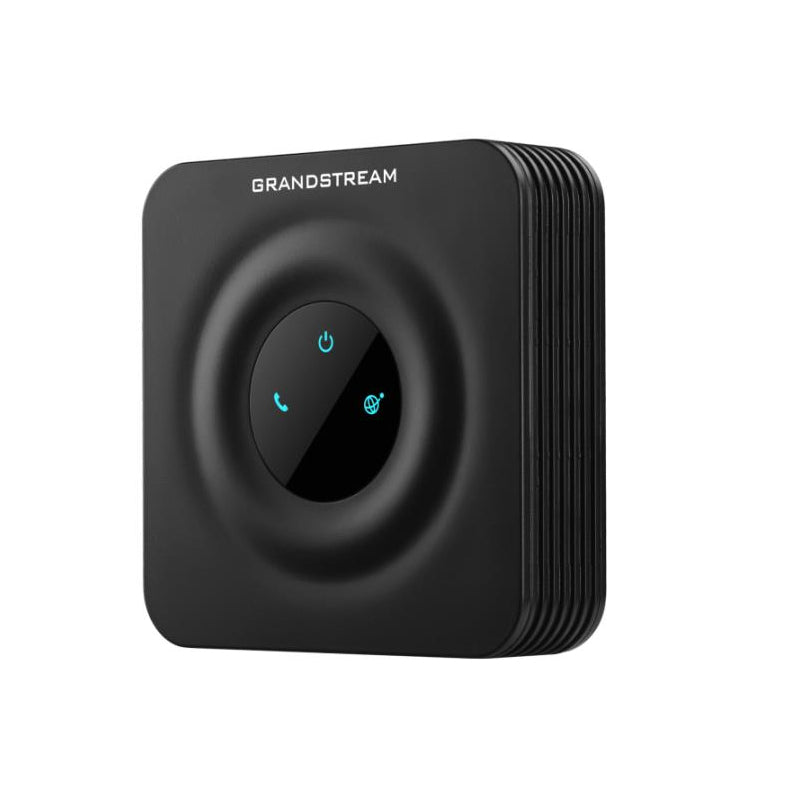

Grandstream HT801V2 single port FXS analogue telephone adapter (ATA)

Grandstream HT801V2 single port FXS analogue telephone adapter (ATA)

HT801V2

$82.00 NZD
$82.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Grandstream HT801V2 single port FXS analogue telephone adapter (ATA)
The Grandstream HT801V2 ATA delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analogue devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding VoIP network performance.
Features
  • supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • supports T.38 Fax for creating Fax-over-IP
  • supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
  • supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Details
Manufacturer's Product Code HT801V2
Telephony Interface One (1) FXS port
Network Interface One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codes G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 5 REN: Up to 1km on 24 AWG
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS Layer 3 (ToS, DiffServ, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Povisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Profiles 1 SIP Profile with Failover
Dimensions 100mm x 100mm x 29.5mm
Details
Power Supply 5VDC/1.0A PSU
