Grandstream Networks

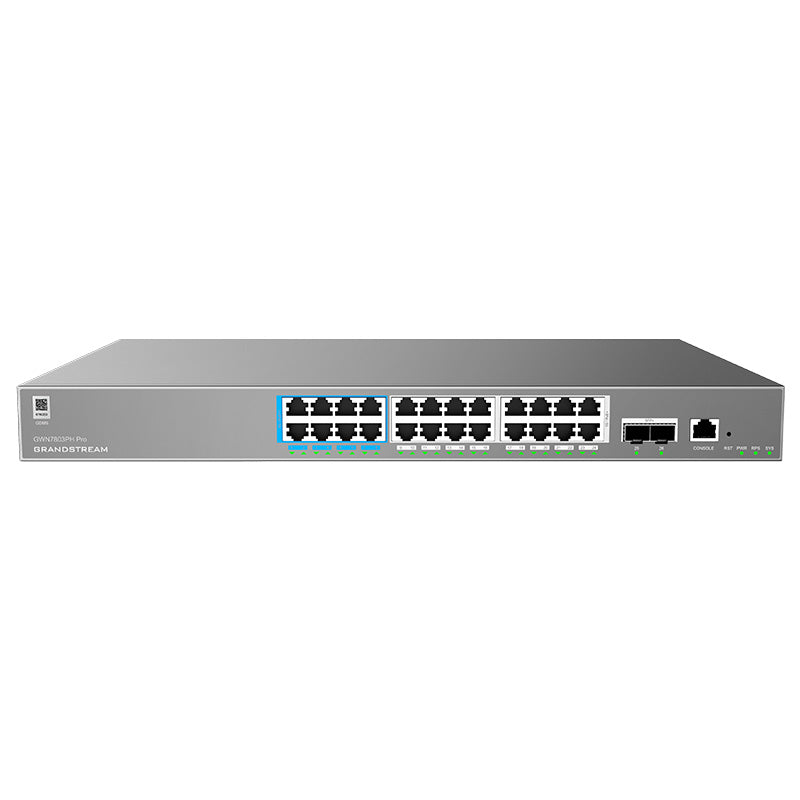

Grandstream GWN7803PH Pro Enterprise Layer 2+ Managed 24 Port 400 Watt PoE++ Switch with 2 x SFP+

Grandstream GWN7803PH Pro Enterprise Layer 2+ Managed 24 Port 400 Watt PoE++ Switch with 2 x SFP+

GWN7803PH-PRO

$503.00 NZD
$503.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Grandstream GWN7803PH Pro Enterprise Layer 2+ Managed PoE Network Switch, 24 x GigE, 2 x SFP+, 400 Watt PoE++
Grandstream GWN7803PH Pro Enterprise Layer 2+ Managed PoE Network Switch, 24 x GigE, 2 x SFP+, 400 Watt PoE++

The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium businesses to build scalable, secure, and high-performance business networks that are fully manageable. The Pro Series provides high-speed SFP or SFP+ ports, as well as double the RAM and CPU of the GWN7800 Series, allowing it to support demanding business networks with switching capabilities up to 216Gbps.

The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The PoE-capable models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.

The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series are ideal for small to medium businesses.
Features
  • All models include high-speed SFP or SFP+ ports 8, 16, 24 or 48 Gigabit Ethernet ports
  • Offers double the RAM and CPU of the GWN7800 Series
  • Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
Details
Product Code GWN7803PH-PRO
Gigabit Ethernet Ports 24
SFP/SFP+ Ports 2x SFP+
Maximum Amount of supported Modules SM-10G: 2, MM-10G: 2, RJ45-10G: 2
MGMT Ports 1x Console port
Auxiliary Ports 1x Reset Pinhole
System LEDs 1x tri-color LED for device tracking and status indication
Power Supply LEDs 2x green-color LEDs for per power supply PWR&RPS
Data Transferring LEDs 26x green-color LEDs
PoE Supply LEDs 24x yellow-color LEDs
Flash 32MB Nor Flash
RAM 256MB RAM
CPU Single-core, MIPS interAptiveTM 1GHz
Forwarding Mode Store-and-forward
Total non-blocking throughput 44Gbps
Switching Capability 88Gbps
Forwarding Rate 65.742Mpps
Packet Buffer 8.4Mb
Network Latency <4µs
Power Supply 100-240V~ 50/60Hz
Redundant Power Supply 1+1 External RPS, One by default
External Redundant Power Supply RPS 460W
Max Power Consumption 30.5W, 471.4W(PoE 400W)
Max Output Power 471.4W
PoE Standards IEEE 802.3af/at/bt
Number of PoE Ports 24
Max Output Power per PoE Port 60W
Max Total PoE Output Power 400W
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Stacking No
Switching Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group
IP Service DHCP client, DHCP server, DHCP relay and DHCP snooping, • DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU
Unit Dimension 440mm(L) × 300mm(W) × 44mm(H)
Unit Weight 4.15kg
Mounting Desktop, or Rack-Mount (rack-mounting kits included)
Temperature Operation 0°C to 45°C, Storage: -10°C to 60°C
Humdity Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing)
MTBF 70,000H
Fan 3
CPU Monitoring Montioring CPU usage, over-CPU usage alarming
Memory Usage Monitoring memery usage, over-memory usage alarming
Power Supply Monitoring Monitoring of power supply model and status, Power supply failure alarming
Fan Monitoring Automatic speed adjustment, Fan failure alarming
Temperature Monitoring Temperature monitoring, over-temperature alarming
Management Platform Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending)
Surge Protection ± 6KV CM for power, ± 4KV CM for network ports
ESD ± 12KV for contact discharge
Compliance FCC, CE, RCM, IC
Details
Included 1x Switch, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 8x Screws (KM3*6), 1x 1.2m(10A) AC Cable, 1x Simplified Quick Installation Guide, 1x Regulatory Paper, 2x Rack-Mounting Kits
View full details
