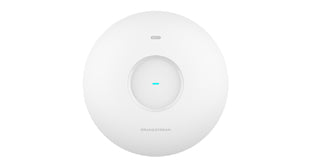

Grandstream GWN7672 2x2x2 Tri-Band Wi-Fi 7 Indoor AP, 2 x 5 Gigabit Ethernet Port with BLE
Grandstream GWN7672 2x2x2 Tri-Band Wi-Fi 7 Indoor AP, 2 x 5 Gigabit Ethernet Port with BLE.

The GWN7672 is a powerful enterprise-grade WiFi 7 access point that provides speeds up to 11Gbps (BE11000), ideal for demanding environments with medium-to-high user density. It ensures maximum network throughput and provides expanded Wi-Fi coverage range thanks to tri-band 2x2x2:2 MU-MIMO with DL/UL Enhanced OFDMA technology and a sophisticated antenna design.

The GWN7672 improves bandwidth utilization and anti-interference with Multi-Resource Units (MRU) and Preamble Puncturing technology, provides a significant increase in data transfer rates through 4096 QAM, and optimizes spectrum resource utilization to ensure a smooth user experience through Multi-Link Operation (MLO) technology.

To ensure easy installation and management, the GWN7672 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7672 can also be managed by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform.

It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth Low Energy 5.3, 384 concurrent clients, and 2x 5-Gigabit network ports with PoE+, the GWN7672 is an ideal Wi-Fi access point for demanding wireless network deployments with medium-to-high user density.
Features
  • 11Gbps aggregate wireless throughput (BE11000), 5Gbps aggregate wired throughout
  • Integrated WiFi7 & Tri-band 2x2x2:2 MU-MIMO with MLO, 4KQAM, MRU, Preamble
  • Puncturing Technology
  • Up to 175-meter coverage range
  • support 384 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Embedded controller manages up to 50 local GWN APs, or free Cloud GDMS
Details
Manufacturer's Code GWN7672
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Antennas 7 single frequency antennas: 2.4GHz x 2, gain 3.5dBi, 5GHz x 2, gain 5.5dBi, 6GHz x 2, gain 5.5dBi, BT gain 3.5dBi
Max Wi-Fi Data Rates 2.4GHz: 688 Mbps, 5GHz: 4320 Mbps, 6GHz: 5765 Mbps
Frequency Bands 2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5850 MHz, 6GHz Radio: 5945 - 7125 MHz
Channel Bandwidth 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40 , 80 , 160MHz and 240MHz, 6GHz: 20, 40 , 80, 160 and 320MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2x2:2 2.4GHz, 2x2:2 5GHz, 2x2:2 6GHz
Coverage Range Up to 175 meters
Maximum TX Power 2.4GHz: 26dBm, 5GHz: 25dBm, 6GHz: 24dBm
Maximum Receiver Sensitivity 2.4GHz: -96dBm, 5GHz: -92dBm, 6GHz: -62dBm
SSIDs 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz)
Concurrent Clients 384
Network Interfaces 2x 5Gigabit Ethernet WAN/LAN
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Bluetooth Bluetooth Low Energy 5.3
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs, GDMS Networking offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE+ 802.3at;, Maximum Power Consumption: 25W
Environmental Operation: 0°Cto 45°C, Storage: -30°C to 60°C, Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 220mmx220mmx54mm; Unit Weight: 838.4g, Entire Package Dimension: 275mmx266mmx76mm; Entire Package Weight: 1271.4g
Compliance FCC, CE, RCM, IC
Details
Package Content GWN7672 Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide
