Grandstream Networks

Grandstream GWN7670 2x2 Dual Band Wi-Fi 7 Indoor Access Point with BLE

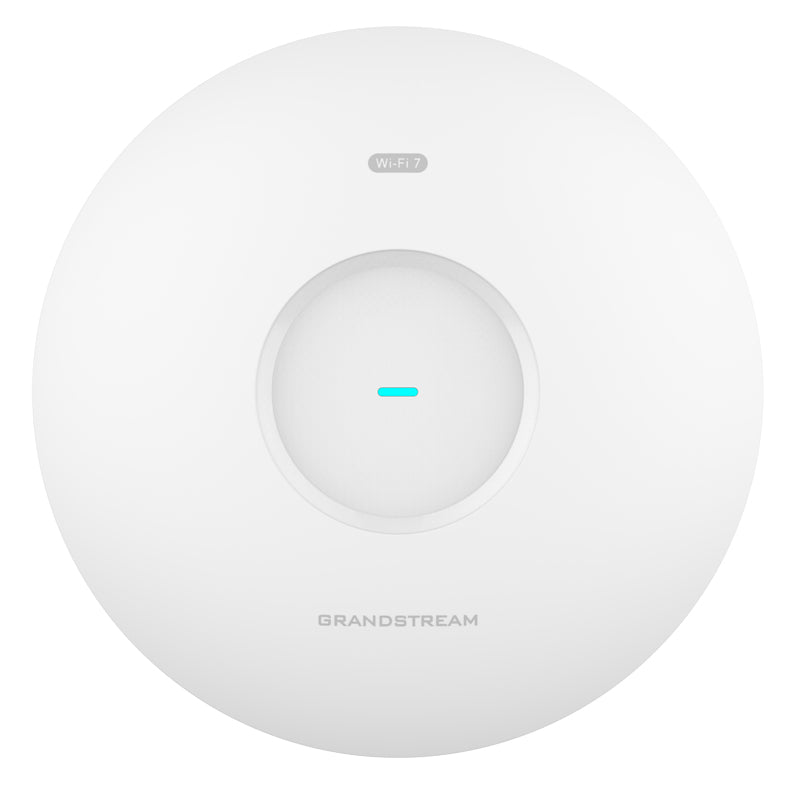

Grandstream GWN7670 2x2 Dual Band Wi-Fi 7 Indoor Access Point with BLE

SKU:GWN7670

Regular price $183.00 NZD
Regular price Sale price $183.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Quantity
Grandstream GWN7670 2x2 Dual Band Wi-Fi 7 Indoor Access Point, 2 x 2.5 GigE, BLE
The Grandstream GWN7670 is a new generation enterprise-grade Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. The GWN7670 improves bandwidth utilization and anti-interference ability with multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7670 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7670 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, BT location with BLE 5.3, 256 concurrent clients per AP and 2 x 2.5 Gigabit network ports with PoE+, GWN7670 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features
  • 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughout
  • Integrated WiFi7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
  • support 256 concurrent Wi-Fi client devices
  • 2x 2.5G Ethernet WAN/LAN
  • Bluetooth BLE 5.3
  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Details
Manufacturer's Code GWN7670
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
Antennas 5 single frequency antennas (2.4GHz x 2, gain 3.5dBi; 5GHz x 2, gain 5.5dBi; BT gain 3.5dBi)
Wi-Fi Data Rates 5G: IEEE 802.11be: Up to 2882 Mbps; IEEE 802.11ax: 7.3 Mbps to 2402 Mbps; IEEE 802.11ac: 6.5 Mbps to 1732 Mbps; IEEE 802.11n: 6.5 Mbps to 600 Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 2.4G: IEEE 802.11be: Up to 688 Mbps; IEEE 802.11ax: 7.3 Mbps to 574 Mbps; IEEE 802.11n: 6.5Mbps to 300 Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands 2.4GHz Radio: 2400 - 2483.5 MHz; 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth 2.4G: 20 and 40 MHz; 5G: 20, 40, 80, and 160 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2x2:2 2.4GHz; 2x2:2 5GHz
Coverage Range Up to 175 meters (coverage range can vary based on environment}
Maximum TX Power 5G: 26dBm; 2.4G: 26dBm
Receiver Sensitivity 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11 MCS11;802.11ax 160MHz: -52dBm@ MCS11 802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13; 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11 802.11be 20MHz: -65dBm @MCS11; 802.11be 40MHz: -62dBm @MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 256
Network Interfaces 2x 2.5G Ethernet WAN/LAN
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Bluetooth BLE 5.3
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 1 tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs; GDMS Networking offers a free cloud management platform for unlimited GWN APs; GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE/PoE+ 802.3af/at; Maximum Power Consumption: 14.5W
Environmental Operation: 0°Cto 45°C; Storage: -30°C to 60°C; Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 185mmx185mmx44.5mm; Unit Weight: 527g
