Grandstream GRP2614 4 Lines 4 SIP PoE 2.4inch Colour Screen

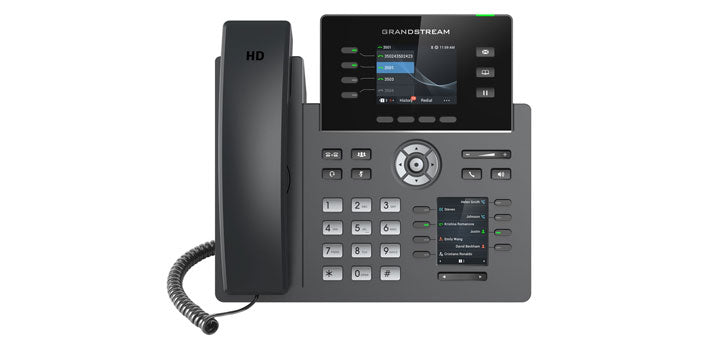

The Grandstream GRP2614 is a 4-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including dual LCD screens with 40 virtual multi-purpose keys (VPKs), integrated WiFi, Bluetooth support, dual Gigabit ports and more. This device features a colour LCD with swappable face plates to allow for easy logo customisation. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralised management, the GRP2614 is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of busy desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2614 offers an easy-to-use and easy-to-deploy voice platform.
Features
  • HD audio, handset and speakerphone with support for wide-band audio
  • 4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-color LED with 2 Left/Right keys
  • Dual LCD screens with digital BLF keys
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
  • Integrated dual-band 802.11 a/b/g/n WiFi
  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • Swappable face plates to allow for easy logo customisation
  • Integrated Bluetooth
  • GRP series is officially supported by 3CX
Details
Manufacturer's Product Code GRP2614
Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Bluetooth Yes, integrated
Wi-Fi Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
Graphic Display 2.8 inch (320x240) TFT colour LCD,2.4 inch (320x240) additional screen
Voice Codecs and Capabilities support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band),G723,iLBC, OPUS, inband and out-of-band DTMF(in audio, RFC2833, SIP INFO)
Telephony Features Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 2000 records), XML customisation of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalised music ringtones and music on hold, server redundancy and fail-over
HD Audio Yes, HD handset and speakerphone with support for wideband audio
Extension Module No
Feature Keys 4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-colour LED with 2 Left/Right keys, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for:MESSAGE(with LED indicator), phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, vol+, volBase Stand Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets)
Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
Power & Green Energy Efficiency Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; Integrated Power-over-Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)
Dimensions 234mm x 213mm x 82.2mm
Details
Power Supply 12VDC 1.5A Power Supply
