Grandstream Networks

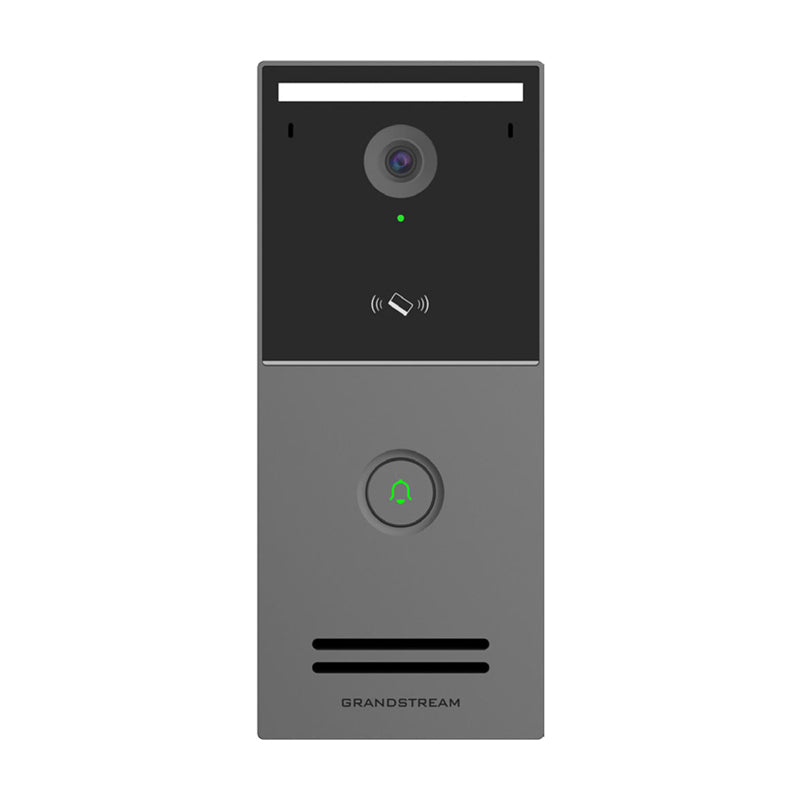

Grandstream GDS3726 Smart IP Video Door Station Vandal Resistant with Call Button

Grandstream GDS3726 Smart IP Video Door Station Vandal Resistant with Call Button

SKU:GDS3726

Regular price $281.00 NZD
Regular price Sale price $281.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Quantity
Grandstream GDS3726 Smart IP Video Door Station Vandal Resistant with Call Button
The Grandstream GDS3726 Smart IP Video Door Station also serve as high-definition IP surveillance cameras and IP intercoms to offer facility access control and security monitoring for buildings of all sizes. These powerful IP Video Door Systems offer a 127-degree wide viewing angle, AI ISP intelligent image processor, a built-in IC & ID card reader and NFC chip, includes two built-in microphones and one speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. They integrate with Grandstream’s free management software, GDS Manager, allowing ID and IC card information, video feeds as well as the device itself to be fully managed by this software. Meanwhile, there is a free Mobile App “SecureAccess” that supports convenient configuration for devices, users and visitors, open door PINs and permission management, multiple selections for remote open door methods and event logs review, etc., making daily usage super convenient. Powered by an advanced Image Sensor Processor (AI ISP) and state-of-the art image algorithms, the GDS3726 delivers 1080p FHD video resolution and offers exceptional performance with the ability to clearly identify human beings or objects within 10 feet (3 meters) under extremely low light conditions. The integrated RJ45 PoE port and easy wiring sockets as well as expandable DI (Alarm Input), DO (Alarm Output) and RS485 control ports, intelligent white LED fill light, intrusion/loitering detection sensor, make GDS3726 a convenient but powerful access control solution. Combined with Grandstream’s GSC357X Control Stations, GXV Series Video Phones, Wave Mobile App and Network Storage System (GNS), GDS3726 provides a complete end-to-end system solution for access control, video intercom, and security recording needs.
Features
  • 4MP Ultra HD Camera sensor, supports WDR, offers AI Intelligent Fill Light and AI ISP
  • Strong security protection against external magnetic interference using Solid State Relay (SSR)
  • supports multiple door opening methods, such as PIN, IC/ID cards, NFC, BLE, APP, QR-Code, SIP Call
  • supports AI-based behavior analysis
  • Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
  • Built-in dual microphones and speaker offers AI noise reduction
  • support Cloud, SecureAccess Mobile App, and GDS Manager Application
Details
Video Compression H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Image Sensor Resolution 1/3”, 4MP, HDR
Lens Type F2.2, FOV: 127°(H) x 70°(V) x 152°(D)
Day & Night White light, 6x LED
Max Video Resolution Video: up to 1920*1080, Snapshots: up to 1920*1080
Max Frame Rate 30 frames per second
Wide Dynamic Range Yes, up to 120db
PIR supported, 3-5 meters (10-16 feet)
AI ISP supported
Embedded Analytics AI-based Motion detection
Microphone 2 microphones
Speaker 3 Watt
Application and GDS Manager support Cloud, SecureAccess Mobile App, and GDS Manager Application
Snapshots Triggered upon events, sent to Email, FTP Server, GDS Manager, Cloud Server, SecureAccess App and/or Local.
Network Protocol TCP/IP/UDP, HTTP/HTTPS, ARP/RARP, ICMP, DNS(A Record, SRV, NAPTR), DHCP, SSH, SMTP, TFTP, NTP, STUN, SIMPLE, TLS, SRTP, TR-069 mass provisioning, local upload firmware
Bluetooth BLE 5.0
Telephony Features SIP Paging, Multicast Paging, call-waiting with priority override, Account Sharing
Voice Codecs G.711?/a, G.722 (wide-band), G.726-32, G.729, in-band and out-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Codecs H.264
QoS Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, Ed25519 and X25519 based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS or local upload, mass provisioning using TR-069 or AES encrypted XML configuration file
Button 1 doorbell key; 1 anti-tamper button (back); 1 reset button (inside)
RFID 13.56MHz&125kHz; MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight, MIFARE PLUS and MIFARE DESFire
RFID Number supported Up to 5000
Access Control 2x Relay (SSR)
Alarm Input 3x Alarm in
Alarm Output 2x Alarm out
Network Interface 1x RJ45 10/100 Mbps port with integrated PoE
Expansion Interface RS485, Wiegand 26/34 input and output, SD card slot
supported SD Card Maximum capacity 256GB
Power & Green Energy Efficiency DC Power Supply: DC 9-36V, 12W; PoE: 802.3af class3
Dimensions (H x W x D) Unit: 204mm*87mm*35.5mm; Weight: 1.55KG
Interoperability ONVIF (Profile S)
Temperature and Humidity Operating Temperature: - 30 - +60°C; Operating Humidity: 10-90% (non condensing); Storage Temperature: -30 - +70°C; Storage Humidity: 10-90% (non condensing)
Protection Class IP66 (EN60529); IK10 (IEC62262) for both metal surface/buttons and lens area
