Grandstream 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch

Grandstream 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch

GWN7604

$118.00 NZD
$118.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Grandstream 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch, GWN7604

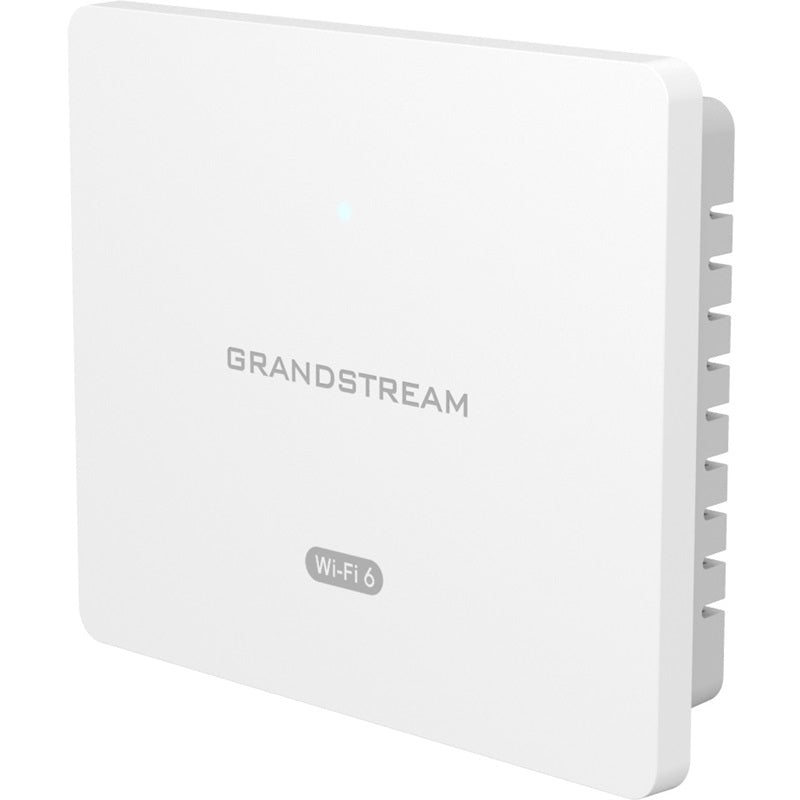

Grandstream GWN7604 2x2 802.11ax AX3000 Wi-Fi 6 AP with Integrated Gigabit Ethernet Switch

The GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices. The GWN7604 offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients and up to 100-meter coverage range.

This Wi-Fi access point can be easily installed and managed using GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 3Gbps wireless throughput, and four Gigabit network ports, the GWN7604 is the ideal Wi-Fi access point for small-to-medium sized deployments that require flexibility.
Features
  • 3Gbps aggregate wireless throughput, 4x Gigabit wireline ports
  • Up to 100 meters coverage range
  • Self power adaptation upon auto detection of PoE/PoE+ and PSE
  • supports up to 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
Details
Manufacturer's Code GWN7604
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Antennas 2 x dual-band internal antennas,1x 5G internal antenna Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi 5G Antenna, gain 4.5dBi
Frequency Bands 2.4 GHz Radio: 2412 – 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80, and 160 MHz
System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO 2×2:2 2.4GHz, 3×3:2 5GHz
Coverage Range Up to 100 meters
Maximum TX Power 5GHz: 26dBm, 2.4GHz: 24dBm
Maximum RX Sensitivity 5GHz: -92dBm, 2.4GHz: -96dBm
SSIDs 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients 256
Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+, 2 x 10/100/1000M Ethernet port with PSE, 1 x 10/100/1000M Ethernet port
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount, kits included
LEDs 1x tri-color LEDs for device tracking and status indication
Network Protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs, GDMS Networking offers a free cloud management platform for unlimited GWN APs, GWN.Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3at, PSE max output: Total 12W power budget for LAN2/LAN3, Maximum Power Consumption: 7.5W (Excluding PoE Output)
Environmental Operation: 0°C to 45°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Compliance FCC, CE, RCM, IC
Details
Package Content GWN7604 AP, Mounting Kits, Quick Installation Guide
