FERN360
FERN360 4 Camera 5MP Motorised Turret Kit - 20CH & WD Purple 2TB
FERN360 4 Camera 5MP Motorised Turret Kit - 20CH & WD Purple 2TB
SKU:FIPKit20-5MP4TMV-XDD
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Couldn't load pickup availability

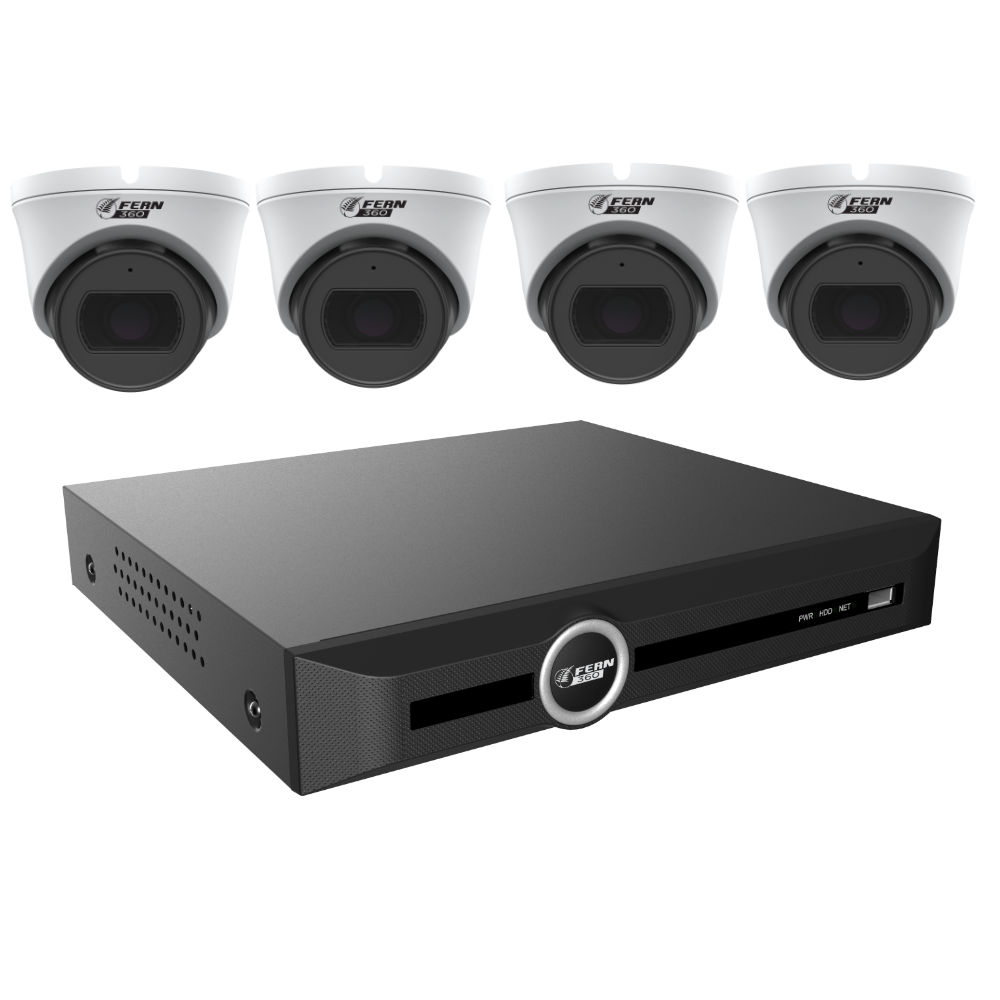

Four adjustable cameras on an expandable recording platform
Start with four FERN360 5MP motorised turret cameras and leave room for future coverage. The 20-channel recorder has 16 built-in PoE ports, with twelve unused when the supplied cameras are connected. WD Purple 2TB surveillance storage is included.
Kit contents

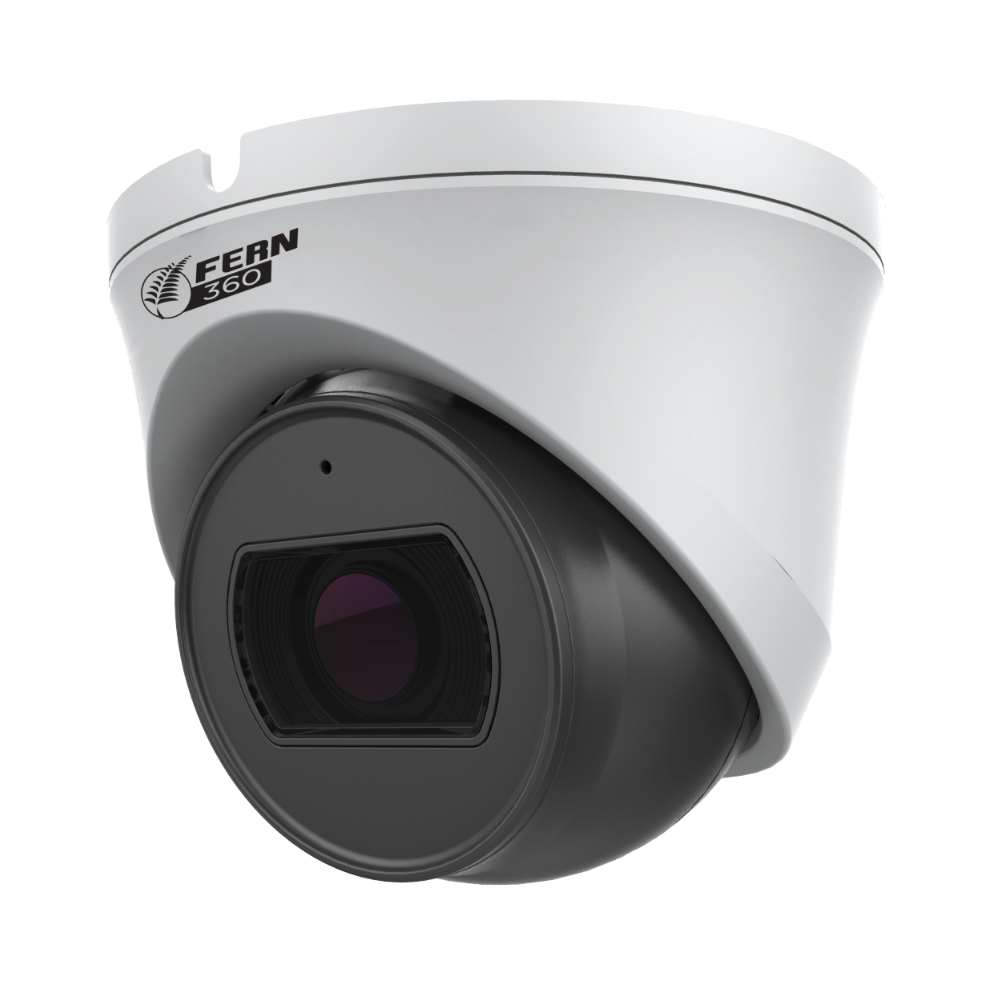

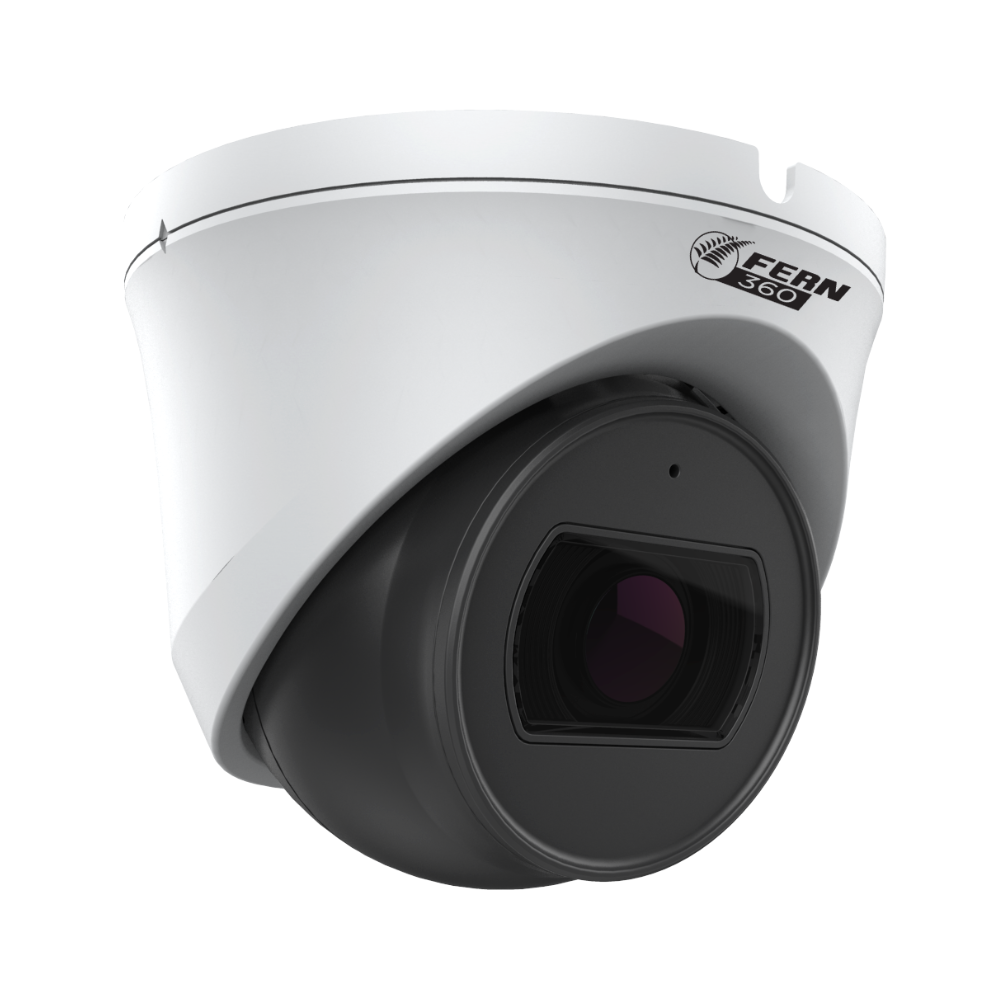

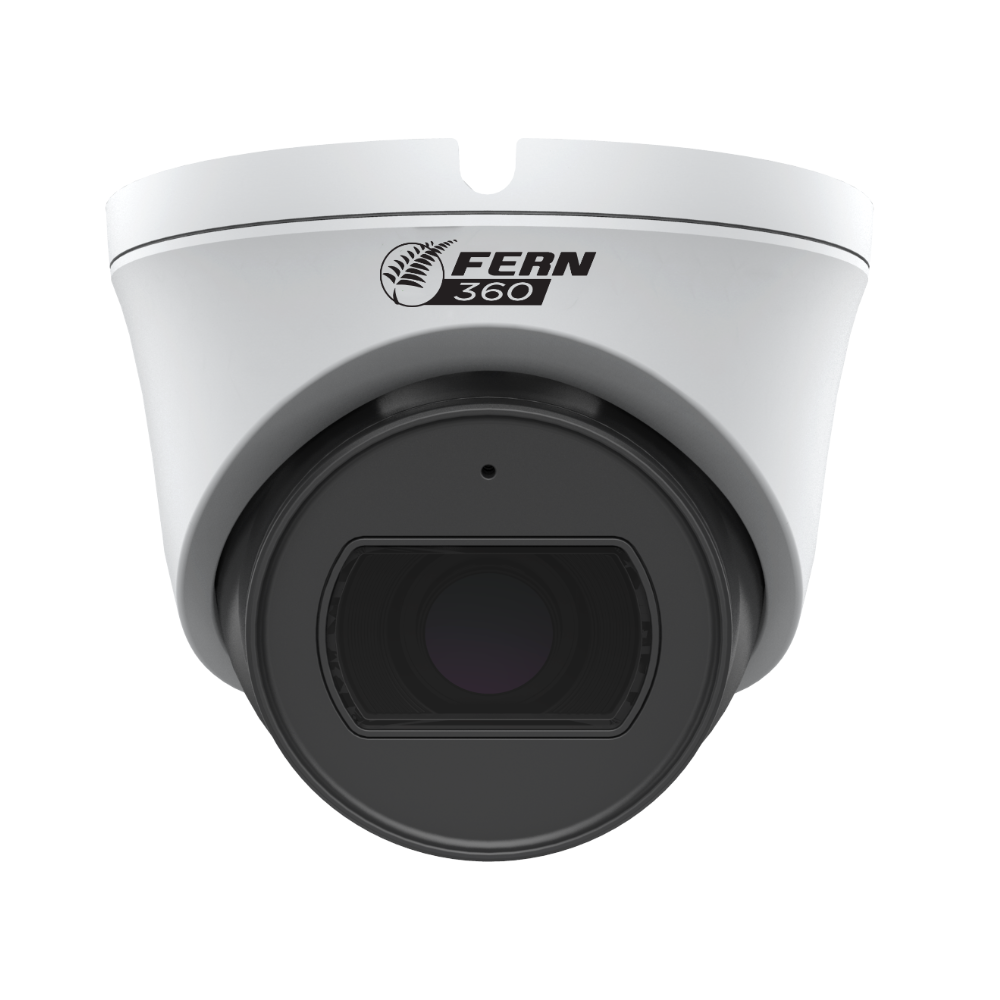

- 4 x FGSIP-C5TMVA-2812 5MP motorised turret cameras

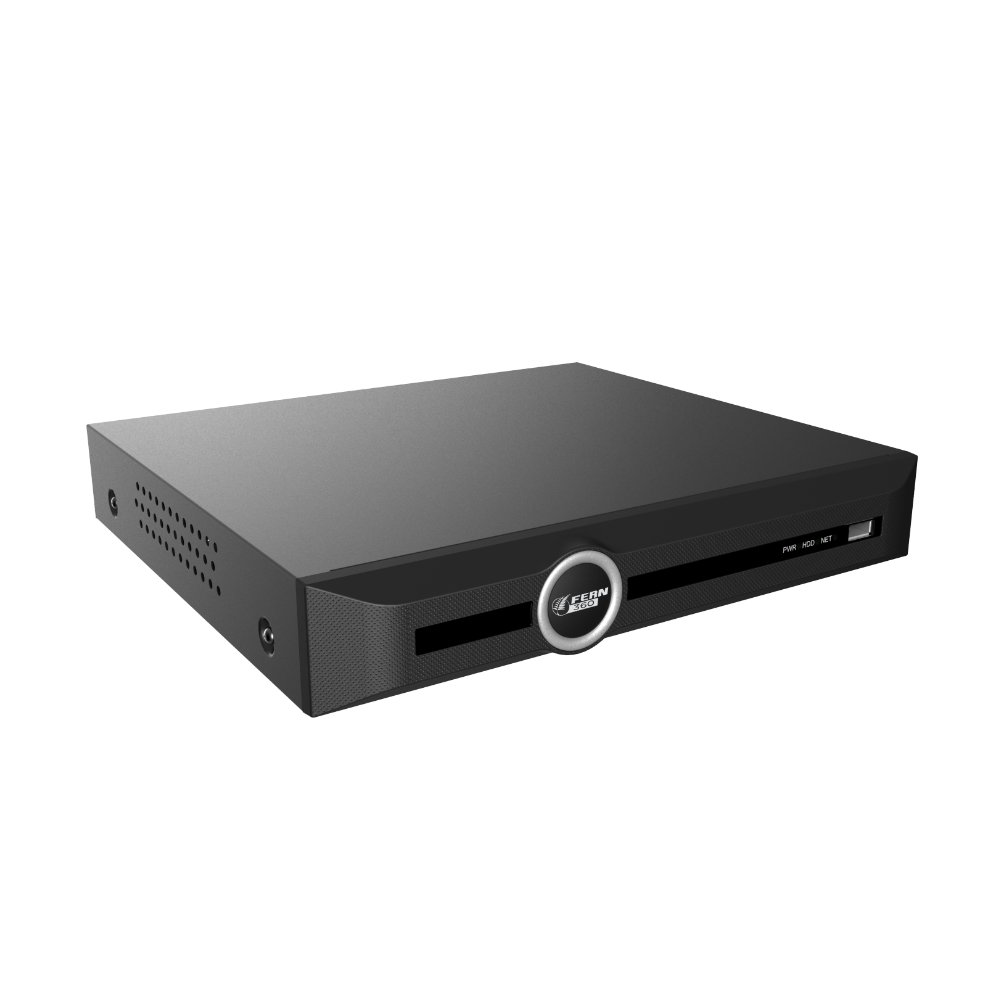

- 1 x FGSIP-PNVR202-16P 20-channel NVR with 16 PoE ports
- 1 x WD Purple WD23PURZ 2TB surveillance HDD
Included component images
Component images show one example of each model. Four cameras are included.
Product specifications
| Camera resolution | 5MP, up to 20fps |
|---|---|
| Lens | Motorised 2.8-12mm |
| Low-light features | Starlight, 120dB WDR, IR up to 30m |
| Camera protection | IP67 metal housing |
| Camera features | PoE, microphone, tripwire and perimeter analytics |
| Recorder | 20 channels, 16 PoE ports, 320Mbps |
| Video outputs | HDMI and VGA; HDMI up to 4K |
| Storage included | 1 x WD23PURZ 2TB, 3.5-inch SATA, 5400rpm, 64MB cache |
| NVR storage interfaces | 2 SATA interfaces, up to 10TB per drive |
Installation planning
Four cameras are supplied, not twenty. Cabling, additional mounts, display equipment and installation services are not listed as included. HDD pre-installation is not specified. IR performance depends on the scene.
Frequently asked questions
How much expansion is available?
Twelve built-in PoE ports remain spare. Additional cameras must be compatible and within recorder channel, power and bandwidth limits.
How long will the drive record?
Retention depends on camera bitrate, frame rate, compression and recording schedule. No fixed recording duration is promised. Review storage needs as cameras are added.
