FERN360 4 Camera 5MP Motorised Bullet Kit - 20CH & WD Purple 2TB
FERN360 4 Camera 5MP Motorised Bullet Kit - 20CH & WD Purple 2TB
SKU:FIPKit20-5MP2BMV-XDD
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Couldn't load pickup availability
Four bullet cameras with room for a larger system
Cover key areas at your New Zealand property with four FERN360 5MP motorised bullet cameras. The 20-channel recorder provides 16 built-in PoE ports for an expandable system, and a WD Purple 2TB surveillance drive supplies dedicated recording storage.

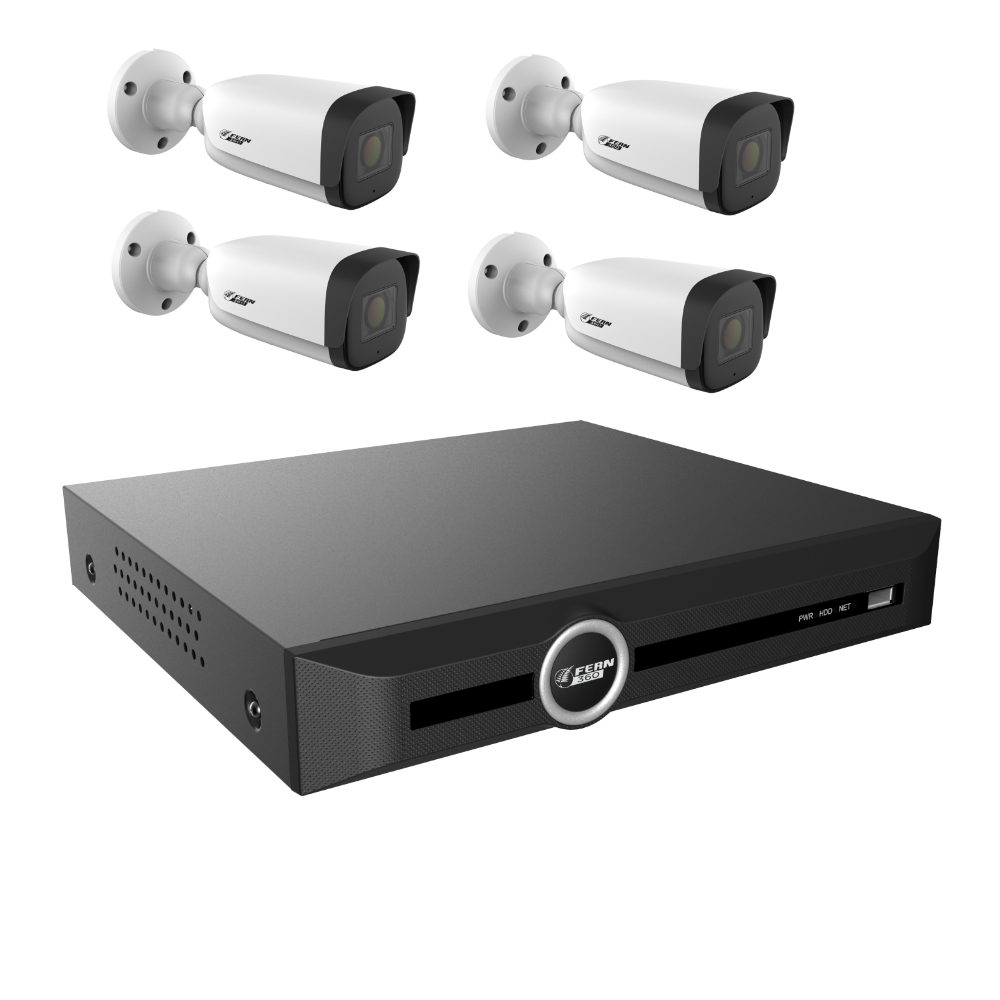

Kit contents
- 4 x FGSIP-C5BMVA-2812 5MP motorised bullet cameras
- 1 x FGSIP-PNVR202-16P 20-channel NVR with 16 PoE ports
- 1 x WD Purple WD23PURZ 2TB surveillance HDD
Included component images
Images show one example of each component model. Four cameras are supplied.
Product specifications
| Camera resolution | 5MP, up to 20fps |
|---|---|
| Lens | Motorised 2.8-12mm |
| Low-light features | Starlight, 120dB WDR, IR up to 80m, scene dependent |
| Camera protection | IP67 metal housing |
| Camera features | PoE, microphone, tripwire and perimeter analytics |
| Recorder | 20 channels, 16 PoE ports, 320Mbps |
| Unused built-in PoE ports | 12 with supplied cameras connected |
| Video outputs | HDMI and VGA; HDMI output up to 4K |
| Storage included | WD23PURZ 2TB, 3.5-inch SATA, 5400rpm, 64MB cache |
| NVR storage interfaces | 2 SATA interfaces, up to 10TB per drive |
Installation planning
This kit includes four cameras, not twenty. Cabling, extra mounting accessories, display equipment and installation services are not listed as included. HDD pre-installation is not specified.
FAQ
Can I expand?
Twelve built-in PoE ports remain spare. Additional cameras must be compatible and remain within recorder channel, bandwidth and power limits.
How long will 2TB record?
Retention depends on bitrate, compression, frame rate and recording schedule. No fixed duration is promised. Review storage needs when expanding.
