Cambium Networks

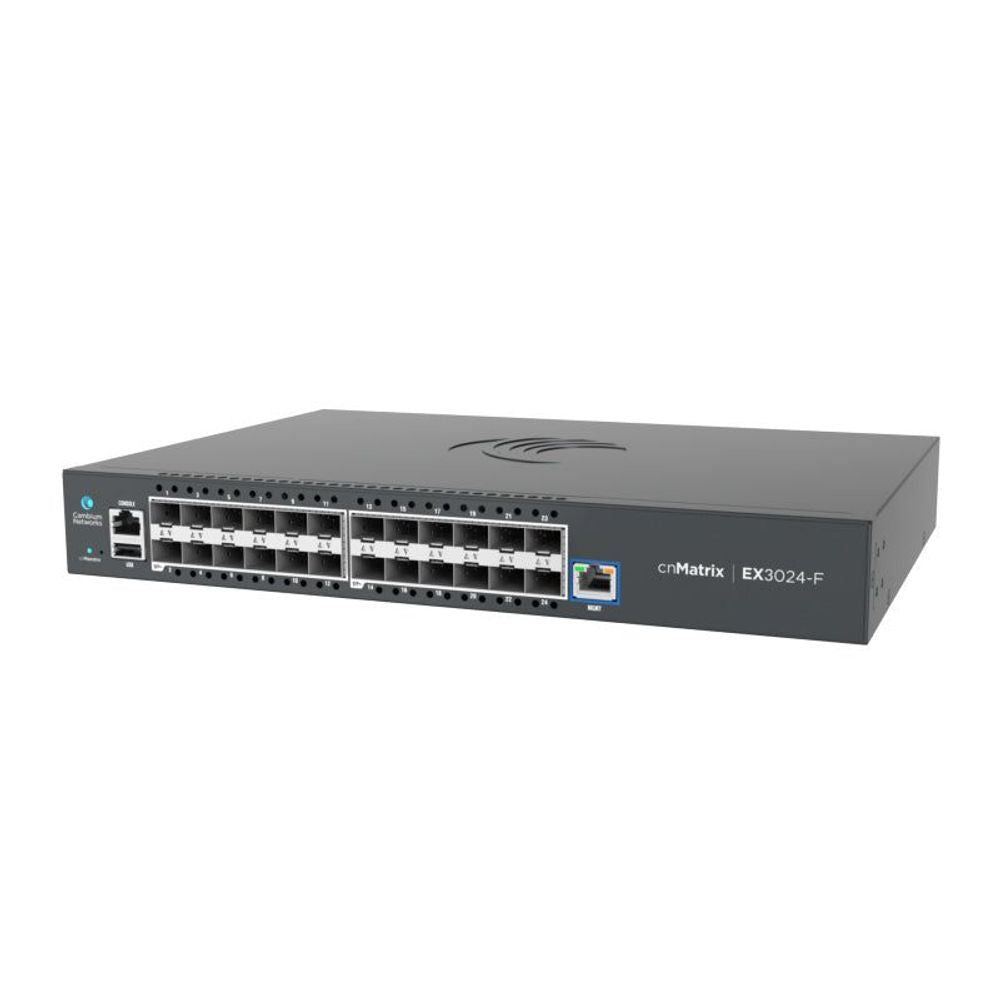

EX3024F - Cambium cnMatrix EX3024F 24-Port SFP+ Intelligent Ethernet Fibre Aggregation Switch with dual internal AC power supplies
EX3024F - Cambium cnMatrix EX3024F 24-Port SFP+ Intelligent Ethernet Fibre Aggregation Switch with dual internal AC power supplies
SKU:EX3024F
Regular price
$5,960.00 NZD
Regular price
Sale price
$5,960.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Out of stock
Quantity
Couldn't load pickup availability
Cambium cnMatrix EX3024F (MXEX3024xFxA00) 24-Port SFP+ Intelligent Ethernet Fiber Aggregation Switch with dual internal AC power supplies.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3024F Intelligent Ethernet Fiber Aggregation Switch offers zero-touch deployments, policy-based automation, auto device profiling and segmentation, and a non-blocking line-rate architecture with fully featured L2/L3 switching. These switches come with a 5-Year Limited Lifetime Warranty
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution.
The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3024F Intelligent Ethernet Fiber Aggregation Switch offers zero-touch deployments, policy-based automation, auto device profiling and segmentation, and a non-blocking line-rate architecture with fully featured L2/L3 switching. These switches come with a 5-Year Limited Lifetime Warranty
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution.
The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy.
Features
- Easy and simple, free cloud (or on premise) management with cnMaestroâ„¢
- Zero-touch deployment of switches makes installation easy
- Policy-based automation (PBA) eliminates manual and time-consuming configuration during adds, moves, and changes of network devices
- Enhanced security with automated device profiling and segmentation
- Unified wired-wireless access solution
- 5-Year limited lifetime warranty
| Details | |
|---|---|
| Product code | MXEX3024xFxA00 |
| Total Throughput | 480 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Fiber Ports | 24 SFP+ |
| Serial Console | Yes |
| USB Port | Yes |
| Out-of-Band Management Port | Yes |
| Rack Mount Kit | Included (1U) |
| Internal Fans | 2 |
| Reset Button | Yes |
| Policy-Based Automation | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 256 MB |
| DRAM | 2 GB |
| VLANs | 4K |
| QinQ | Yes |
| LACP/Trunking | 8 LAGs/8 links per LAG |
| QoS Priority Queues | 8 |
| PVRST | 32 (128 future) |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| ARP Entries | 512 |
| Static Routes | 64 |
| Dynamic Routing | 512 (2K future) |
| IGMP Multicast Groups | 256 (1K future) |
| Power Supply | Dual internal 120W |
| Max Switch Power (with traffic) | 75W |
| MTBF (Hours) | 928,678 |
| Weight | 3 kg |
| Dimensions | 44.4 x 33.0 x 23.05 cm |
| CPU Speed | 1.4 GHz |
| LEDs Per Port | Link/Activity |
| Acoustic Noise dBA per Switch (Ambient Temperature) | 36.2 dBA: < 29°C, 45.6 dBA: 29°C-34°C, 52 dBA: > 34°C |
| Temperature Ranges | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Â
| Details | |
|---|---|
| Power Supply | (2) IEC Power Cord |
| Mounting Hardware | 1U Rackmount Kit Included |
Â
Â
Specifications
Â
Â
Cambium cnMatrix EX3024F (MXEX3024xFxA00) 24-Port SFP+ Intelligent Ethernet Fiber Aggregation Switch with dual internal AC power supplies.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3024F Intelligent Ethernet Fiber Aggregation Switch offers zero-touch deployments, policy-based automation, auto device profiling and segmentation, and a non-blocking line-rate architecture with fully featured L2/L3 switching. These switches come with a 5-Year Limited Lifetime Warranty
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution.
The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3024F Intelligent Ethernet Fiber Aggregation Switch offers zero-touch deployments, policy-based automation, auto device profiling and segmentation, and a non-blocking line-rate architecture with fully featured L2/L3 switching. These switches come with a 5-Year Limited Lifetime Warranty
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solution.
The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy.
Features
- Easy and simple, free cloud (or on premise) management with cnMaestroâ„¢
- Zero-touch deployment of switches makes installation easy
- Policy-based automation (PBA) eliminates manual and time-consuming configuration during adds, moves, and changes of network devices
- Enhanced security with automated device profiling and segmentation
- Unified wired-wireless access solution
- 5-Year limited lifetime warranty
| Details | |
|---|---|
| Product code | MXEX3024xFxA00 |
| Total Throughput | 480 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Fiber Ports | 24 SFP+ |
| Serial Console | Yes |
| USB Port | Yes |
| Out-of-Band Management Port | Yes |
| Rack Mount Kit | Included (1U) |
| Internal Fans | 2 |
| Reset Button | Yes |
| Policy-Based Automation | Yes |
| MAC Address Table Size | 16K |
| Flash Storage | 256 MB |
| DRAM | 2 GB |
| VLANs | 4K |
| QinQ | Yes |
| LACP/Trunking | 8 LAGs/8 links per LAG |
| QoS Priority Queues | 8 |
| PVRST | 32 (128 future) |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| ARP Entries | 512 |
| Static Routes | 64 |
| Dynamic Routing | 512 (2K future) |
| IGMP Multicast Groups | 256 (1K future) |
| Power Supply | Dual internal 120W |
| Max Switch Power (with traffic) | 75W |
| MTBF (Hours) | 928,678 |
| Weight | 3 kg |
| Dimensions | 44.4 x 33.0 x 23.05 cm |
| CPU Speed | 1.4 GHz |
| LEDs Per Port | Link/Activity |
| Acoustic Noise dBA per Switch (Ambient Temperature) | 36.2 dBA: < 29°C, 45.6 dBA: 29°C-34°C, 52 dBA: > 34°C |
| Temperature Ranges | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Details | |
|---|---|
| Power Supply | (2) IEC Power Cord |
| Mounting Hardware | 1U Rackmount Kit Included |
