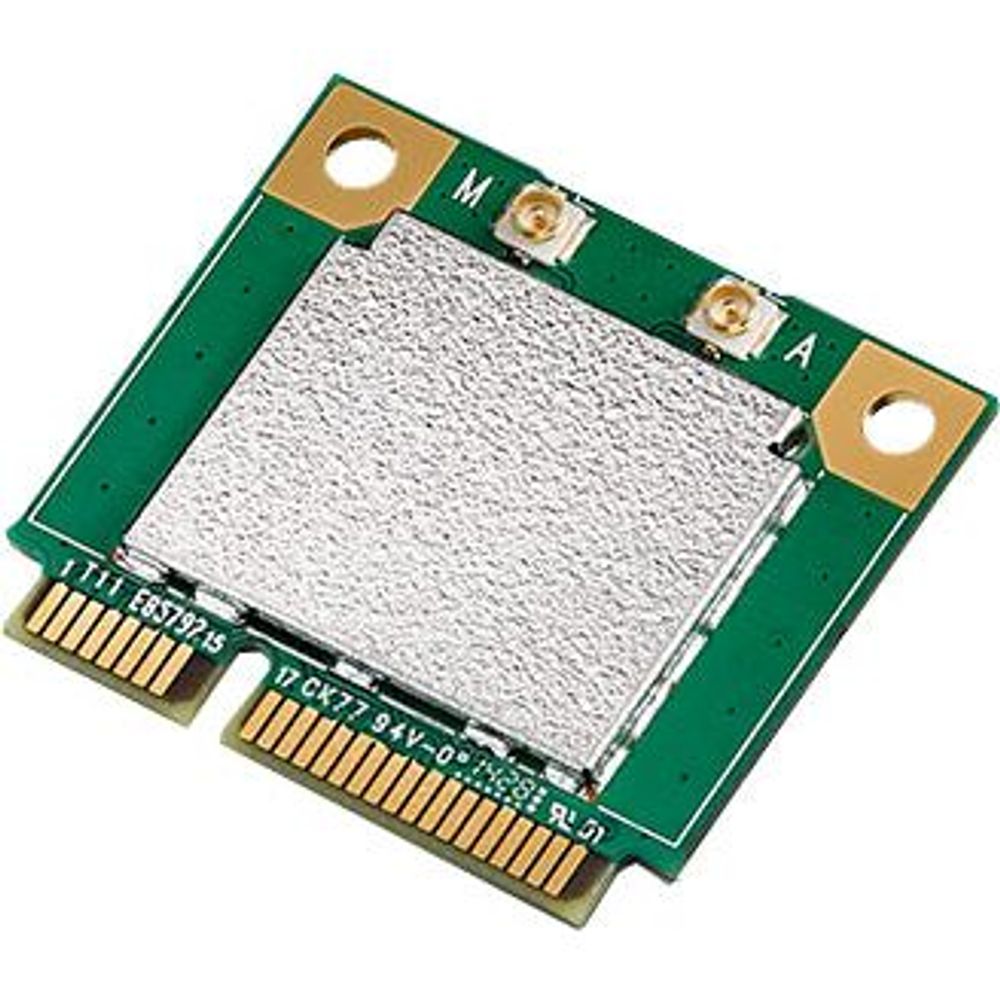

EWM-W157H01E - Advantech RTL8821AE A/B/G/N/AC/BT Mini PCIe WIFI

EWM-W157H01E - Advantech RTL8821AE A/B/G/N/AC/BT Mini PCIe WIFI

EWM-W157H01E

$33.33 NZD
$33.33 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Overview The EWM-W157H01E is 802.11 ac/a/b/g/n 433.3Mbps and Bluetooth 4.0. It is Realtek RTL8821AE solution.

Features

  • IEEE 802.11ac/a/b/g/n WiFi with Bluetooth 4.0 standard
  • 1Tx/1Rx with Bluetooth
  • Up to 433.3 Mbps data rate
  • Fully BT 4.0 and BT 3.0 + High speed system
  • Operating temperature: 0 to +70° C

Specifications

Chipset Realtek RTL8821AE
Tx/Rx 1Tx/1Rx (2 U.FL connectors)
Standard Conformance 802.11 a/b/g/n/ac
Form Factor Half Size Mini PCIe Card
Interface PCI-E
Operating Voltage DC 3.3V ± 5%
Power Consumption WiFi Continue TX: 359.5 mA BT Continue TX: 54.9 mA
Security 64/128-bit WEP
O.S Supported Windows 7, 8, 8.1
Temperature Ranges Operation: 0 to 70° C
Dimensions (mm) 26.65 (l) x 29.85 (w) x 3.95 (h)
12 Month Return to Base Warranty
