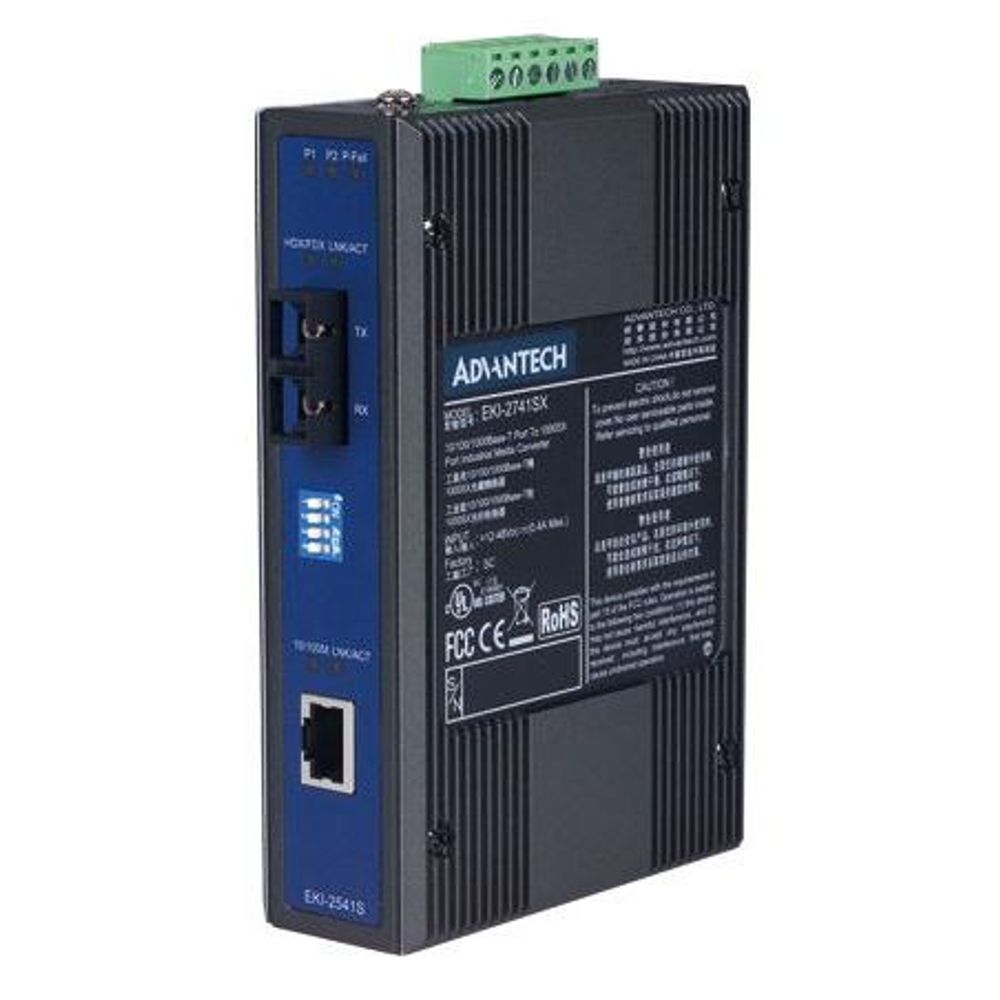

EKI-2541S-BE - Advantech EKI-2541S-AE Ethernet to Single Mode Fiber

Overview EKI-2541S is designed to convert Ethernet networks to fibre networks by transparently converting Ethernet signals to optic signals. The advantages of fibre optics are wide bandwidth, EMI immunity and long-distance transmissions. Therefore, EKI-2541S is an ideal solution for “fibre to building” applications at central offices or local sites. EKI-2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Features

• Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector

• Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port

• Provides internal jumper for Link Fault Pass-through (LFP) setting

• Supports full/half duplex flow control

• Supports store and forward transmission

• Supports auto-negotiation

• Supports MDI/MDI-X auto crossover

• Supports redundant 12-48 VDC power input

• Provides flexible mounting: DIN-rail and Panel mount

24 Month Return to Base Warranty
