Ubiquiti

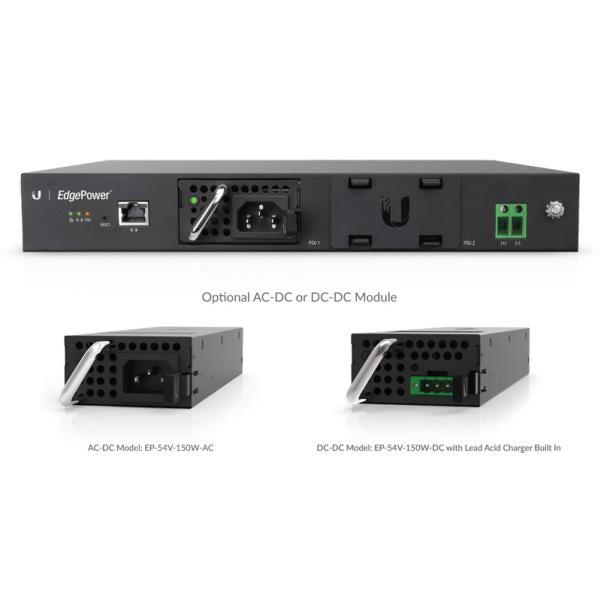

EdgePower 54V 150W DC Rack Mount PSU for EdgePoint Routers and Switches
EdgePower 54V 150W DC Rack Mount PSU for EdgePoint Routers and Switches
SKU:EP-54V-150W
Regular price
$409.00 NZD
Regular price
Sale price
$409.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Out of stock
Quantity
Couldn't load pickup availability
Ubiquiti EdgePower, 54V, 150W DC Power Supply for Powering EdgePoint Units, Supports AC/DC and DC/DC PSU Modules
EdgePower 54V 150W DC Rack Mount Power Supply Unit for EdgePoint Routers and Switches. The Ubiquiti EdgePower is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices.
The EdgePower uses two modular PSUs for flexible configuration options. The EdgePower can utilise two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one EP-54V-150W-AC PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately).
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If a failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.
The EdgePower uses two modular PSUs for flexible configuration options. The EdgePower can utilise two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one EP-54V-150W-AC PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately).
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If a failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.
Features
- Flexible, Modular PSU Design
- supports up to Two 150W PSU Modules
- Secondary AC-DC or DC-DC PSU Available
| Details | |
|---|---|
| Manufacturer's Product Code | ES-54V-150W |
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Maximum Power Output PSU | 150W (1 PSU Module), 300W (2 PSU Modules @ 150W Each) |
| LEDs | Power - System On/Off, Ethernet - Management Port Link, PSU - PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | 1 x EP-54V-150W-AC included |
| Mounting | Rackmount (1U) ears included |
